Wastewater/Activity/PacpInspection/1.0Dec 18, 2017, 10:35 PM
05 2272_05 2271 _01082018_230825.mp4
- Date
- 12/18/2017
- W/O
- 679437
- Weather
- Dry
- Operator/Surveyor
- S LOPEZ
- Sewer ID
- Z00429
- PipeID
- P07395
- Time
- 2:35 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5368
- Sewer Name
- 05 COLDEN AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_679437_TV05094_JAN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 2272
- Downstream MH
- 05 2271
- Dir. of Survey
- Downstream
- Length Surveyed
- 244.3 ft.
- Total Length
- 244.3 ft.
- Structural Index
- 3
- Structural Quick
- 3F00
- Structural Rating
- 99
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 101
Observation photos (2)

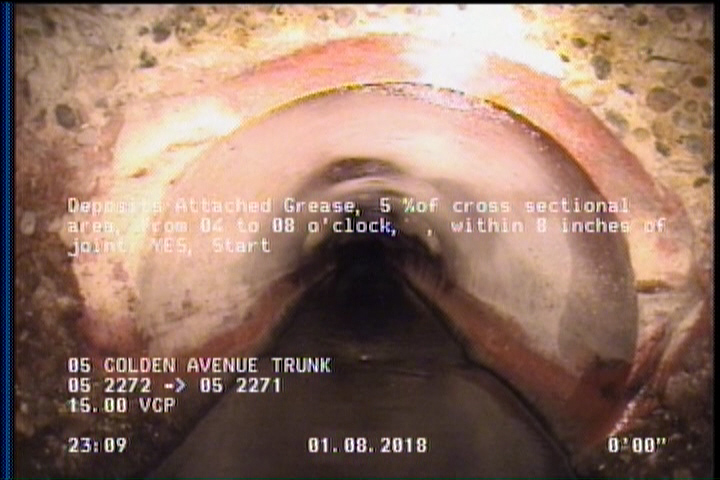

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

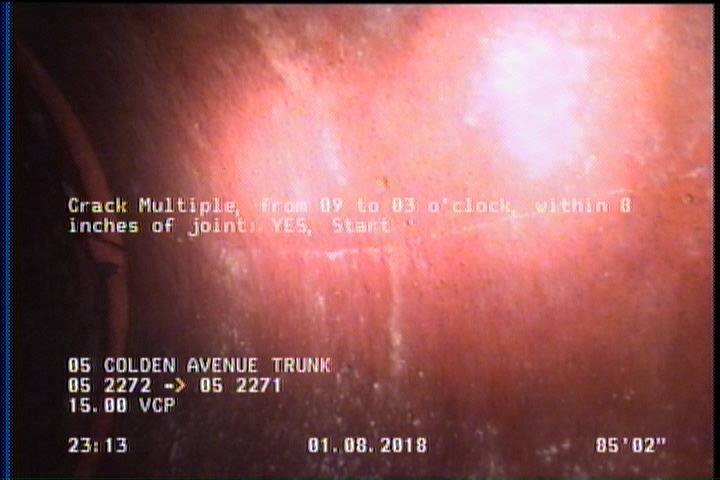

85 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 244.3 | AMH | 05 2271 |
| 0 | MWL | — |
| 86 | FL | — |
| 242 | DAGS | — |
| 85 | CM | — |
| 86 | FL | — |
| 242 | CM | — |
| 0 | DAGS | — |
| 0 | AMH | 05 2272 |
| 0 | MWM | — |
Properties (7)
- additional_info
- SC346445
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-12-18T14:35:35-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 28956
