Wastewater/Activity/PacpInspection/1.0Sep 14, 2018, 10:02 AM
Section#8_C 0627_C 0626__9142018__I0067.mp4
- Date
- 09/14/2018
- W/O
- 0728717
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00980
- PipeID
- P23102
- Time
- 3:02 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0067
- Sewer Name
- C JOINT OUTFALL C - UNIT 4C REPLACEMENT
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- 20180914MDM_JOINT_OUTFALL_C_UNIT_4C_REPLACEMENT
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 54 in.
- Upstream MH
- C 0627
- Downstream MH
- C 0626
- Dir. of Survey
- Downstream
- Length Surveyed
- 481.6 ft.
- Total Length
- 481.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (3)

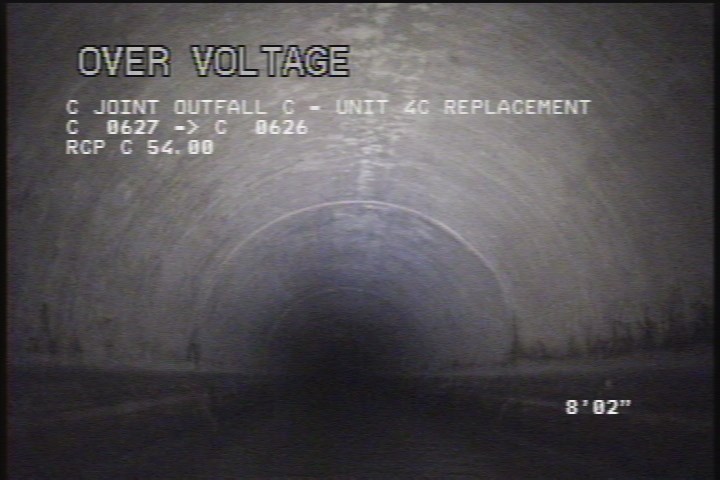

8 ft. - General Observation - 54" RGRCP-PTL

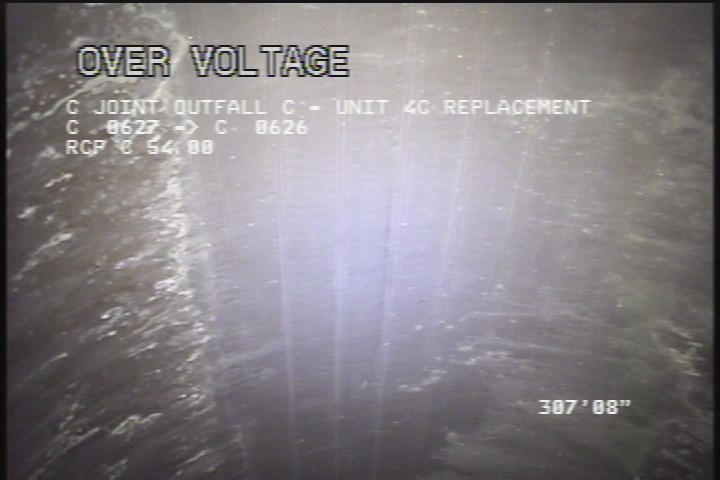

307.7 ft. - General Photograph - PTL

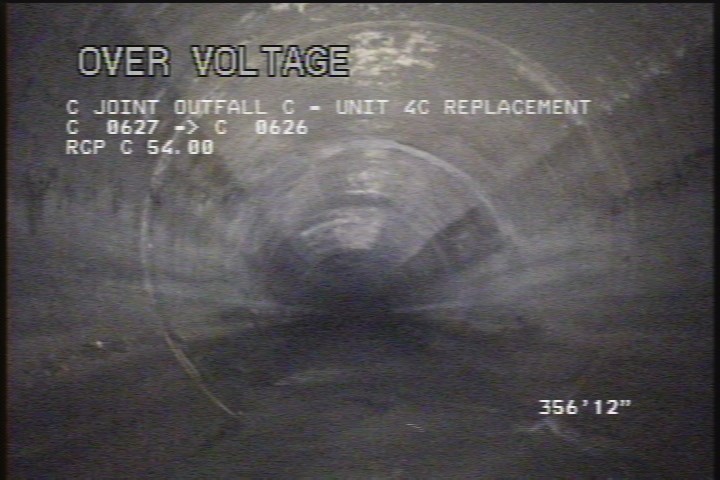

357 ft. - General Observation - 54" RGRCP-PTL
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 8 | MGO | 54" RGRCP-PTL |
| 0 | MWM | — |
| 0 | MGO | MH CONN 9:00 ACTIVE |
| 0 | MGO | MH CONN 3:00 OPEN |
| 0 | MWL | — |
| 481.7 | AMH | 4:45AM |
| 0 | AMH | 4:25AM |
| 357 | MGO | 54" RGRCP-PTL |
| 307.7 | MGP | PTL |
Properties (6)
- custom_field_three
- LINER GOOD COND
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-09-14T03:02:09-07:00
- documentation
- MARTIN,REVELES,OLIVER 111,BRAR
- is_lateral_inspection
- false
