Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 13, 2018, 03:49 PM

  • D 0071_D 0070_9132018_102037.mp4

Date
09/13/2018
W/O
0726351
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00154
PipeID
P09971
Time
8:49 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7808
Sewer Name
D JOINT OUTFALL D - UNIT 4
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
20180913DF_JOINT_OUTFALL_D_UNIT_4
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
D 0071
Downstream MH
D 0070
Dir. of Survey
Downstream
Length Surveyed
435 ft.
Total Length
435 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole D 0071 to D 0070
MH: D 0071MH: D 0070downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:19 AM0.1 ft. MWL - Water Level, 20 %of cross sectional area0.1 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG16.2 ft. TFC - Tap Factory Made Capped, at 04 o'clock, -, within 8 inches of joint: YES, 6"23.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"99.7 ft. MGP - General Photograph165 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"166 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start236.8 ft. MGP - General Photograph236.8 ft. MGP - General Photograph - INTRUDING CONN/2"297.4 ft. MGP - General Photograph338.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"345.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open433 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish433 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish433 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 75% MAG434 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach434 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)435 ft. AMH - Downstream Manhole, Survey Ends - 10:52 AM

Observation photos (8)

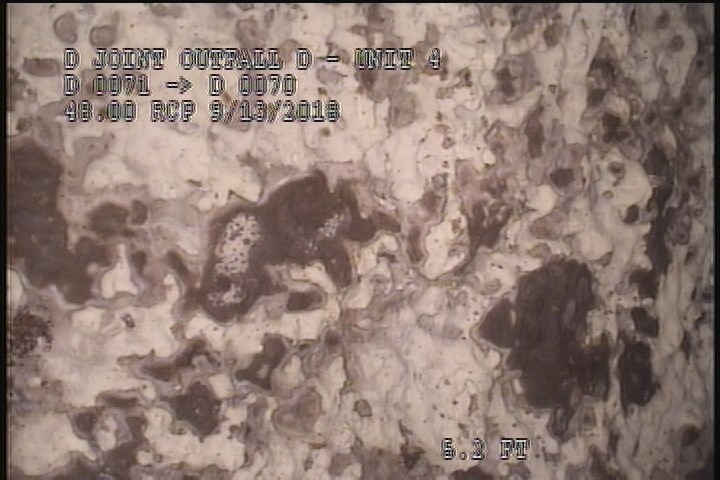

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

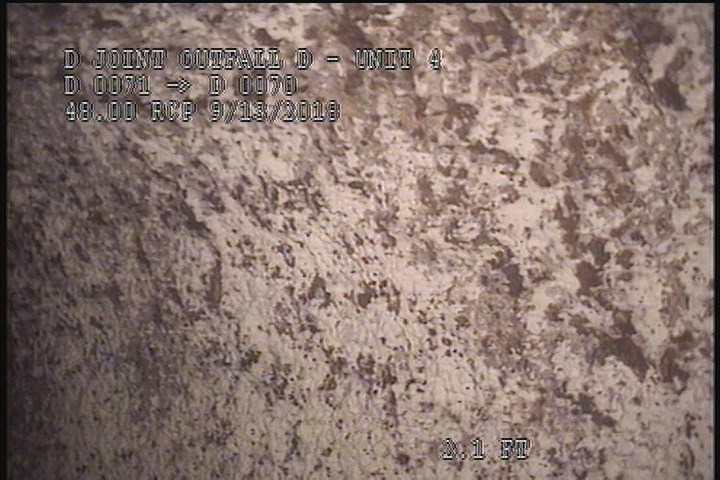

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG

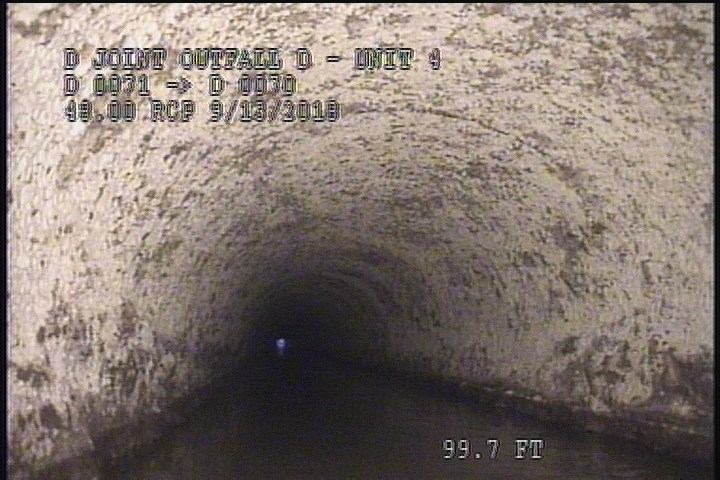

  • General Photograph

    99.7 ft. - General Photograph

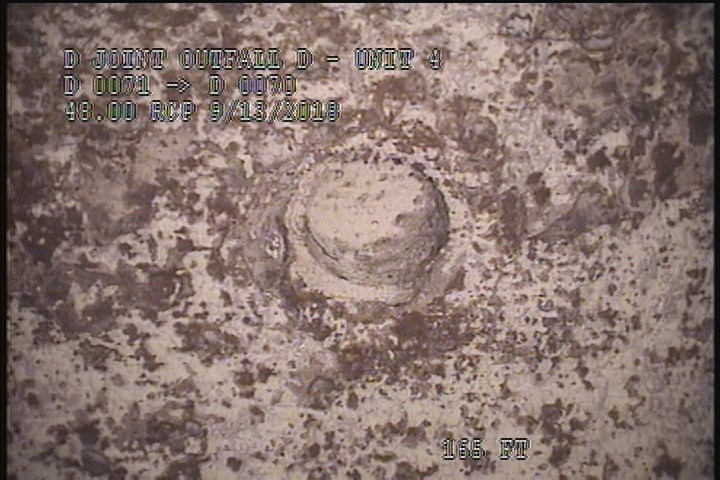

  • Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"

    165 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"

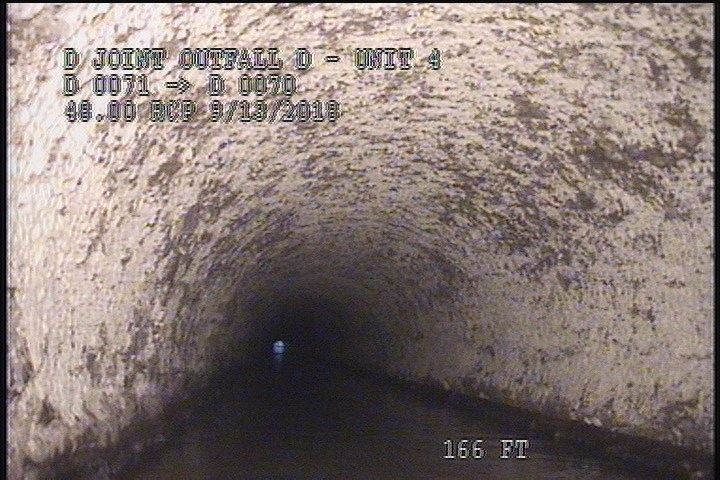

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    166 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

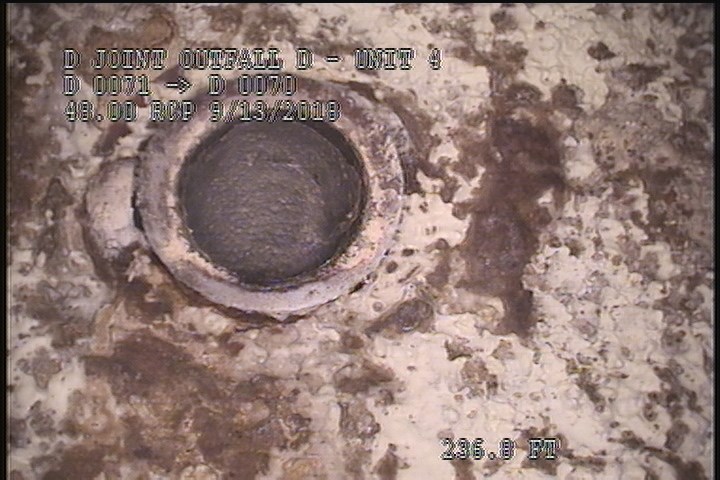

  • General Photograph

    236.8 ft. - General Photograph

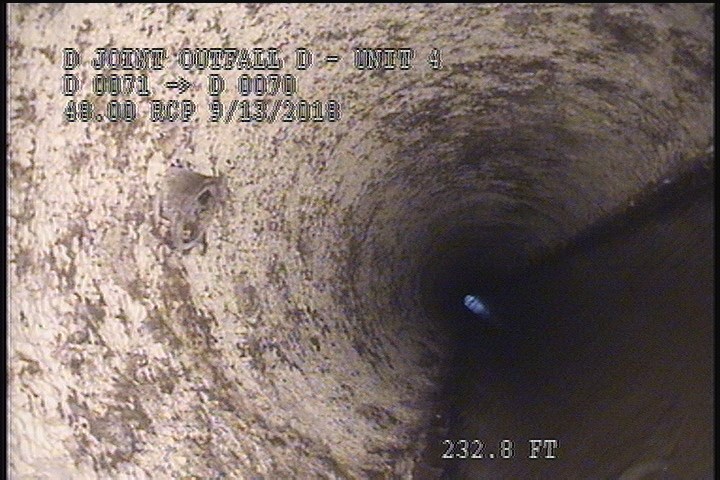

  • General Photograph - INTRUDING CONN/2"

    236.8 ft. - General Photograph - INTRUDING CONN/2"

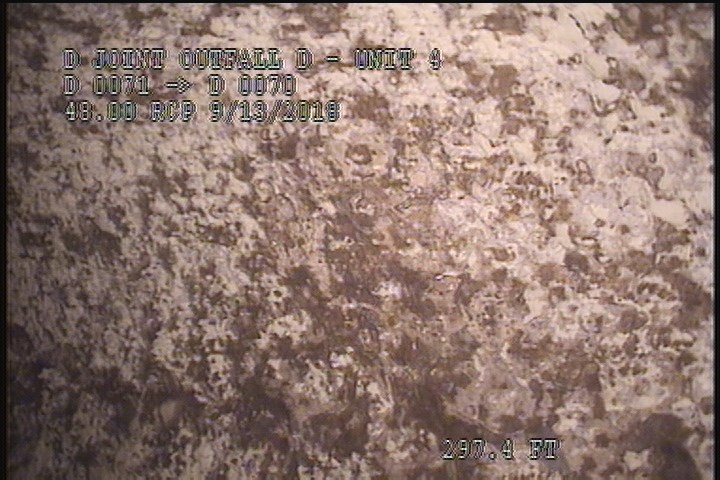

  • General Photograph

    297.4 ft. - General Photograph

All inspections of P09971Work order 0726351

Observations (21)

DistanceCodeObservation
338.8TFC—
2SAV—
165TFC—
435AMH10:52 AM
433SAV—
23.8TFC—
297.4MGP—
434MGOPeeling & Flaking Throughout The Reach
166SRV—
16.2TFC—
2SZ75% MAG
0.1MWL—
0AMH10:19 AM
99.7MGP—
434MGOGREASE THROUGHOUT THE REACH (5%)
433SRV—
0.1MWM—
345.1TFOpen
433SZ75% MAG
236.8MGP—
236.8MGPINTRUDING CONN/2"

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2018-09-13T08:49:39-07:00
documentation
FRANKLIN, IGANCIO, VENDRYES, PARAISO
is_lateral_inspection
false
