Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 3, 2018, 05:46 AM

  • 01 1187_01 1186_02052018_225341.mp4

Date
05/02/2018
W/O
695981
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00225
PipeID
P02041
Time
10:46 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5553
Sewer Name
01 WILCOX AVENUE TRUNK
City
BELL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
05
Purpose
Routine Assessment
Project
WO_695981_TV01257_APR2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 1187
Downstream MH
01 1186
Dir. of Survey
Downstream
Length Surveyed
130.9 ft.
Total Length
130.9 ft.
Structural Index
3
Structural Quick
413I
Structural Rating
160
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
160
Pipe schematic from manhole 01 1187 to 01 1186
MH: 01 1187MH: 01 1186downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 11870 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWL - Water Level, 15 %of cross sectional area0.1 ft. MWM - Water Mark, 25 %of cross sectional area0.4 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK3.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start41.7 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES130.9 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK130.9 ft. AMH - Downstream Manhole, Survey Ends - 01 1186130.9 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK130.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish130.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (3)

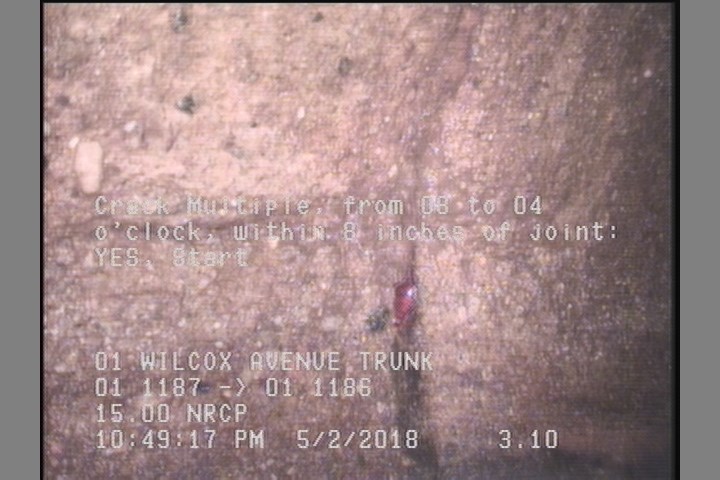

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

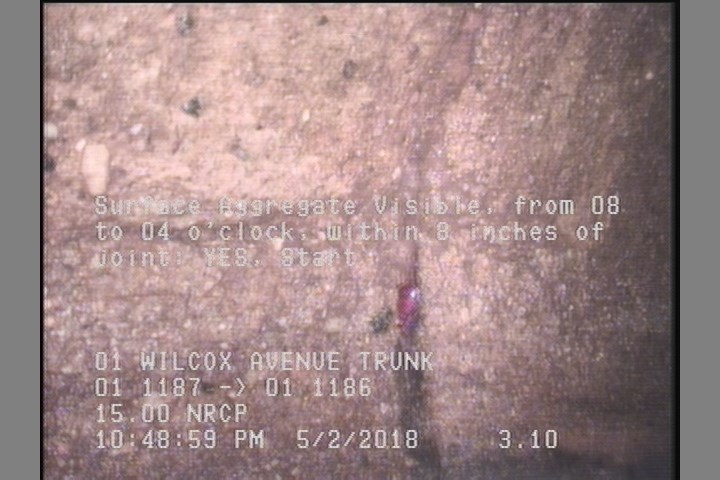

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

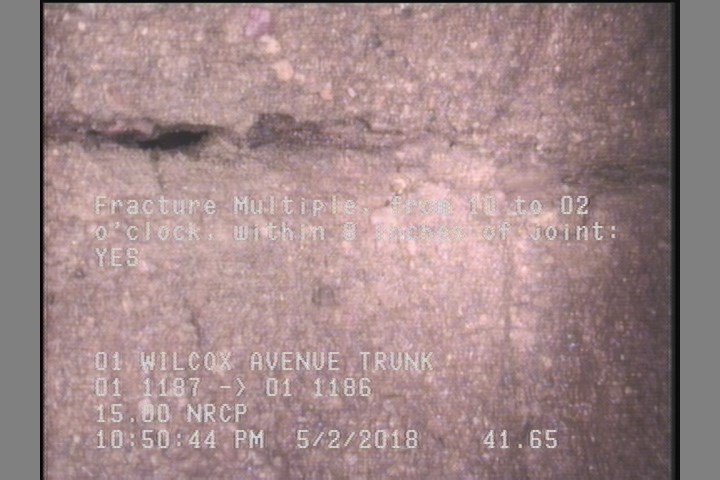

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    41.7 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

All inspections of P02041Work order 695981

Observations (13)

DistanceCodeObservation
3.1CM—
0AMH01 1187
130.9MGOCONNECTION AT MH 3 O'CLOCK
130.9AMH01 1186
130.9MGOCONNECTION AT MH 9 O'CLOCK
0.1MWM—
0MGOCONNECTION AT MH 9 O'CLOCK
41.7FM—
0MWL—
0.4MGOCONNECTION AT MH 3 O'CLOCK
130.9SAV—
130.9CM—
3.1SAV—

Properties (6)

additional_info
SC359308
custom_field_two
3
customer
LACSD
datetime
2018-05-02T22:46:19-07:00
documentation
PROPIPE
is_lateral_inspection
false
