Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 14, 2018, 05:28 PM

  • B 1060_B 1059_5142018_111226.mp4

Date
05/14/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00923
PipeID
P22904
Time
10:28 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7708
Sewer Name
B JOINT OUTFALL B - UNIT 1C REPLACEMENT
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19
Purpose
Routine Assessment
Project
20180510DF_JOINT_OUTFALL_B_UNIT_1C_REPLACEMENT
Material
RGRCP-PTL
Shape
Circular
Height
78 in.
Upstream MH
B 1060
Downstream MH
B 1059
Dir. of Survey
Downstream
Length Surveyed
824 ft.
Total Length
824 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole B 1060 to B 1059
MH: B 1060MH: B 1059downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:30 AM0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area2 ft. LFB - Lining Failure Blistered, from 08 to 04 o'clock, within 8 inches of joint: YES, Start17 ft. MGP - General Photograph209.7 ft. MGP - General Photograph209.8 ft. MGP - General Photograph398 ft. MGP - General Photograph400.5 ft. MGP - General Photograph600.4 ft. MGP - General Photograph805.2 ft. MGP - General Photograph822.1 ft. LFB - Lining Failure Blistered, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish824 ft. AMH - Downstream Manhole, Survey Ends - 11:41 AM

Observation photos (10)

  • Water Level, 30 %of cross sectional area

    0 ft. - Water Level, 30 %of cross sectional area

  • Water Mark, 35 %of cross sectional area

    0 ft. - Water Mark, 35 %of cross sectional area

  • Lining Failure Blistered, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Lining Failure Blistered, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • General Photograph

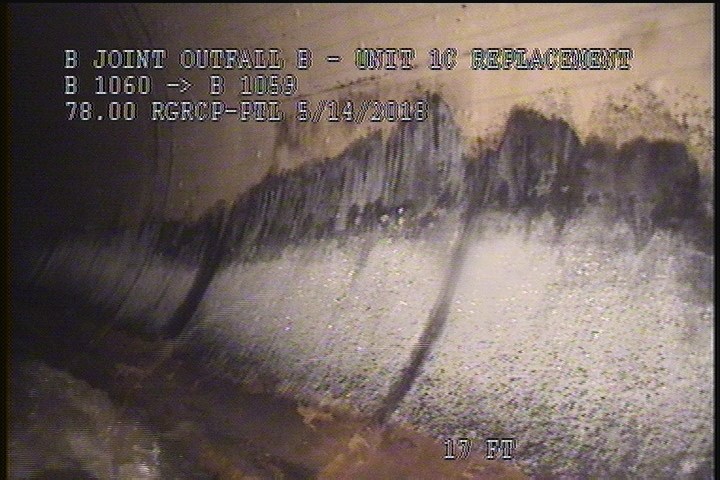

    17 ft. - General Photograph

  • General Photograph

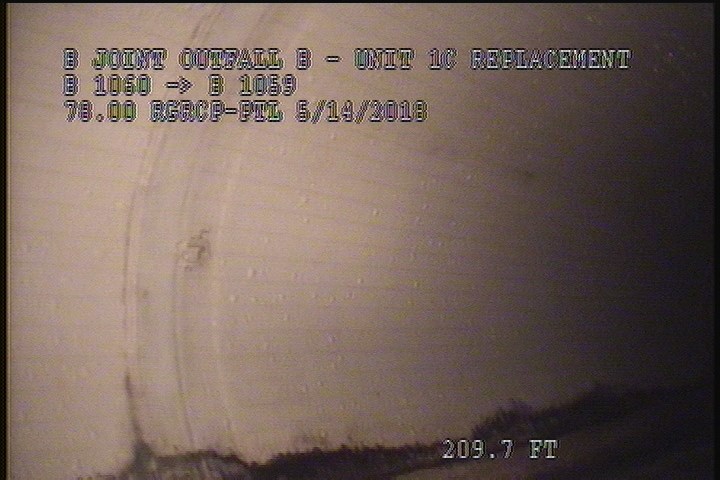

    209.7 ft. - General Photograph

  • General Photograph

    209.8 ft. - General Photograph

  • General Photograph

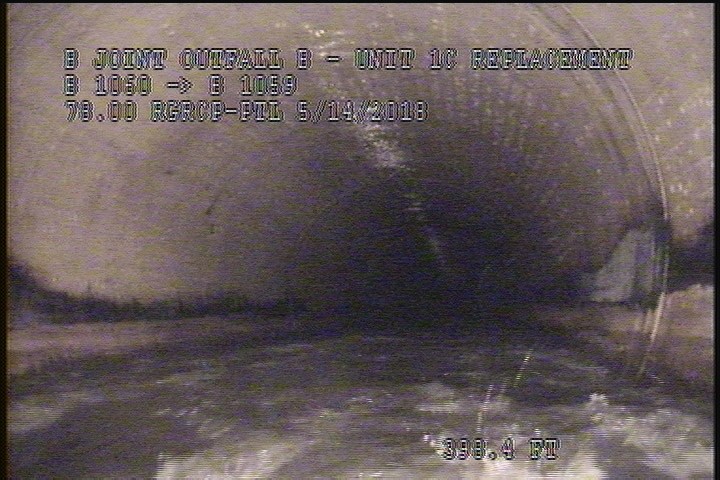

    398 ft. - General Photograph

  • General Photograph

    400.5 ft. - General Photograph

  • General Photograph

    600.4 ft. - General Photograph

  • General Photograph

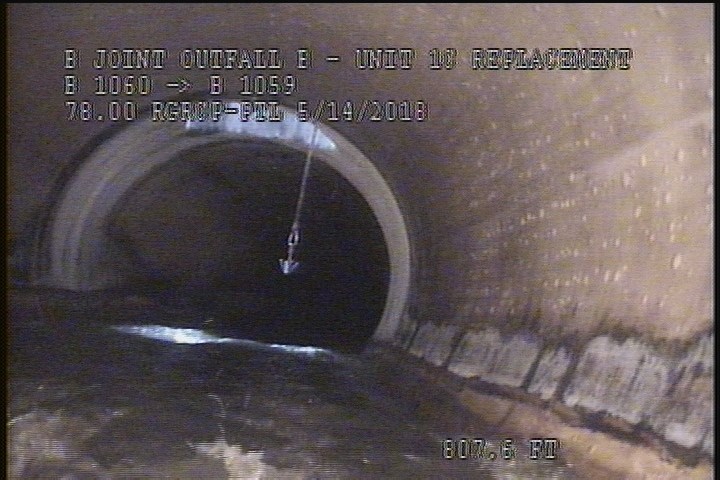

    805.2 ft. - General Photograph

All inspections of P22904Work order PENDING

Observations (13)

DistanceCodeObservation
398MGP—
0AMH10:30 AM
822.1LFB—
805.2MGP—
400.5MGP—
209.7MGP—
0MWL—
0MWM—
209.8MGP—
600.4MGP—
17MGP—
824AMH11:41 AM
2LFB—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2018-05-14T10:28:32-07:00
documentation
FRANKLIN, VENDRYES, PARAISO, BRAR
is_lateral_inspection
false
