Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 10, 2018, 06:34 PM

  • B 1072_B 1071_5102018_113921.mp4

Date
05/10/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00923
PipeID
P23038
Time
11:34 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7707
Sewer Name
B JOINT OUTFALL B - UNIT 1C REPLACEMENT
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19
Purpose
Routine Assessment
Project
20180510DF_JOINT_OUTFALL_B_UNIT_1C_REPLACEMENT
Material
RGRCP-PTL
Shape
Circular
Height
78 in.
Upstream MH
B 1072
Downstream MH
B 1071
Dir. of Survey
Downstream
Length Surveyed
893 ft.
Total Length
893 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole B 1072 to B 1071
MH: B 1072MH: B 1071downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 11:37 AM39.3 ft. MGP - General Photograph68.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES200.4 ft. MGP - General Photograph409.7 ft. MGP - General Photograph589.2 ft. MGP - General Photograph892 ft. MGO - General Observation - Grease Throughout The Reach (5%)893 ft. AMH - Downstream Manhole, Survey Ends - 12:09 PM

Observation photos (6)

  • Water Level, 30 %of cross sectional area

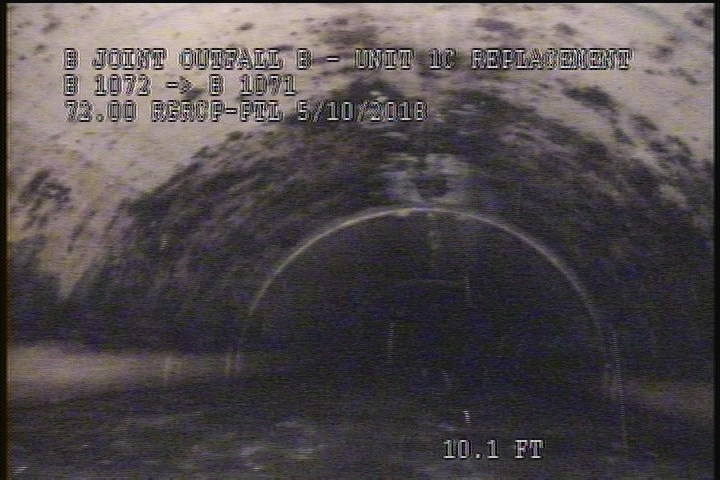

    0 ft. - Water Level, 30 %of cross sectional area

  • General Photograph

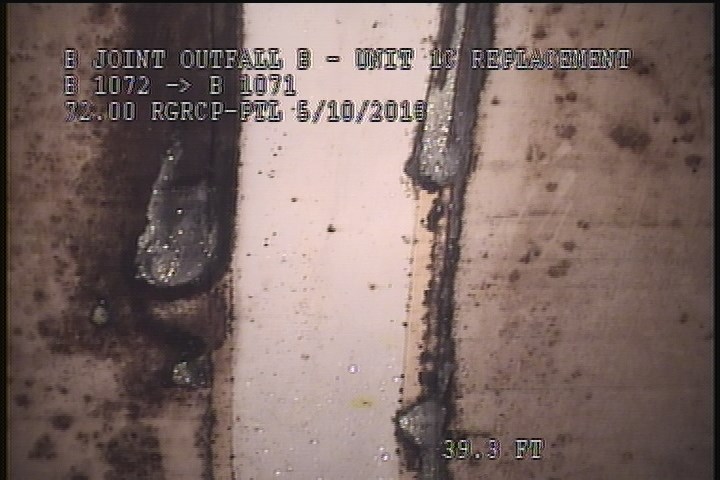

    39.3 ft. - General Photograph

  • Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

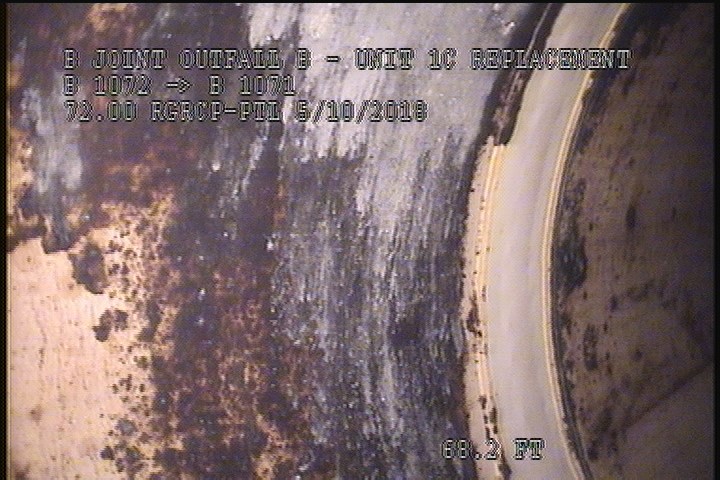

    68.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

  • General Photograph

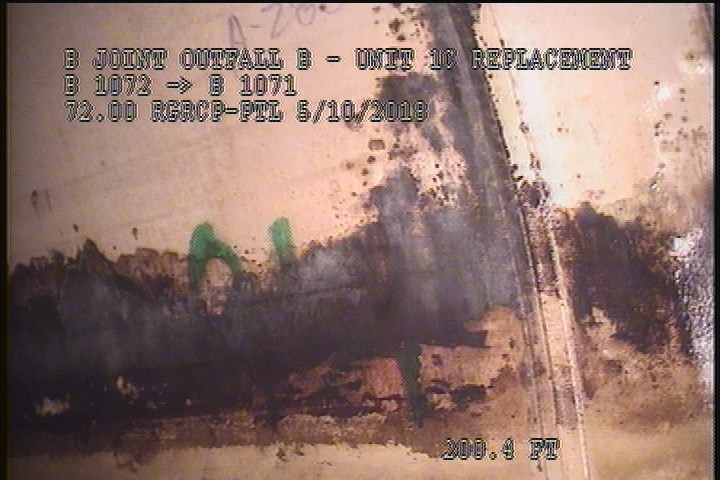

    200.4 ft. - General Photograph

  • General Photograph

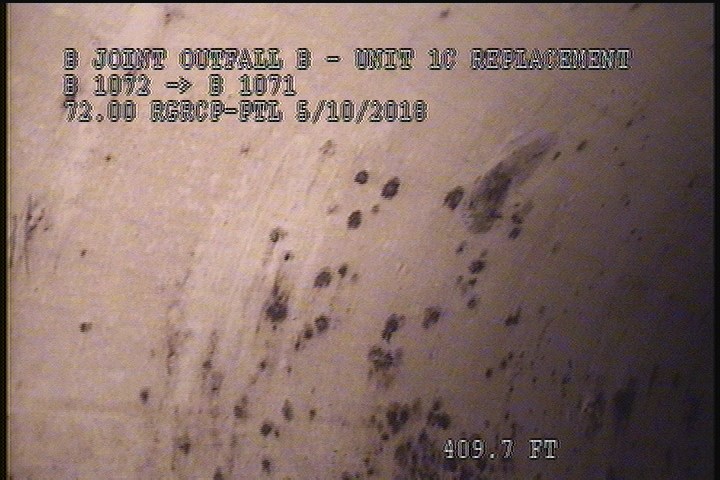

    409.7 ft. - General Photograph

  • General Photograph

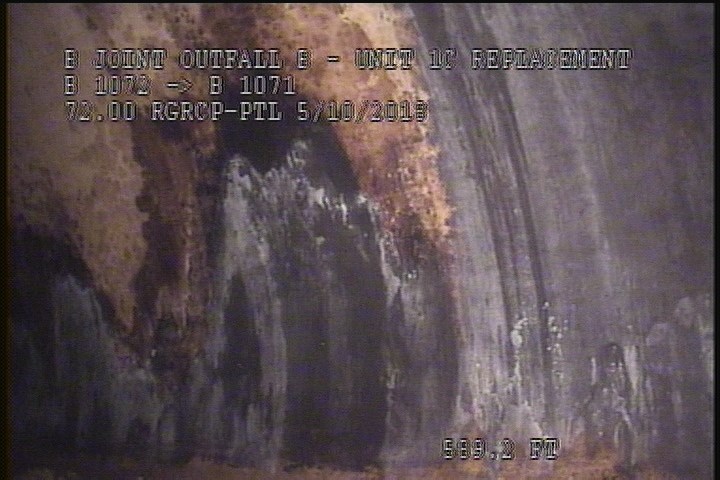

    589.2 ft. - General Photograph

All inspections of P23038Work order PENDING

Observations (10)

DistanceCodeObservation
68.2DAGS—
0MWL—
39.3MGP—
409.7MGP—
200.4MGP—
0MWM—
893AMH12:09 PM
892MGOGrease Throughout The Reach (5%)
589.2MGP—
0AMH11:37 AM

Properties (6)

additional_info
THIS IS A 78" LINE NOT 72"
custom_field_two
4
customer
LACSD
datetime
2018-05-10T11:34:11-07:00
documentation
FRANKLIN, IGNACIO, SHADLER
is_lateral_inspection
false
