Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 10, 2018, 04:27 PM

  • B 1086_B 1085_5102018_093916.mp4

Date
05/10/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00923
PipeID
P23250
Time
9:27 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7707
Sewer Name
B JOINT OUTFALL B - UNIT 1C REPLACEMENT
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19
Purpose
Routine Assessment
Project
20180510DF_JOINT_OUTFALL_B_UNIT_1C_REPLACEMENT
Material
RGRCP-PTL
Shape
Circular
Height
72 in.
Upstream MH
B 1086
Downstream MH
B 1085
Dir. of Survey
Downstream
Length Surveyed
539 ft.
Total Length
539 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole B 1086 to B 1085
MH: B 1086MH: B 1085downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:29 AM0 ft. MGO - General Observation - Grease Throughout The Reach (5%)0.1 ft. MWL - Water Level, 30 %of cross sectional area0.1 ft. MWM - Water Mark, 35 %of cross sectional area191.3 ft. MGP - General Photograph335.8 ft. MGP - General Photograph440.2 ft. LFB - Lining Failure Blistered, from 08 to 04 o'clock, within 8 inches of joint: YES538 ft. MGO - General Observation - Grease Throughout The Reach (5%)538.5 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active539 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. UNKNOWN539 ft. AMH - Downstream Manhole, Survey Ends - 9:56 AM

Observation photos (4)

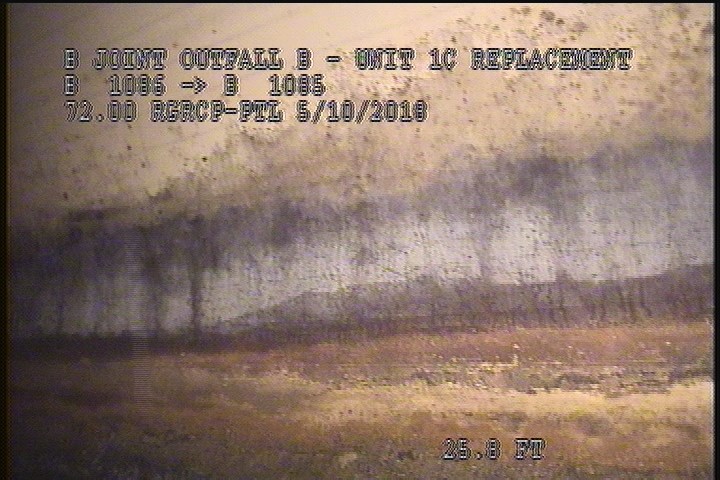

  • Water Mark, 35 %of cross sectional area

    0.1 ft. - Water Mark, 35 %of cross sectional area

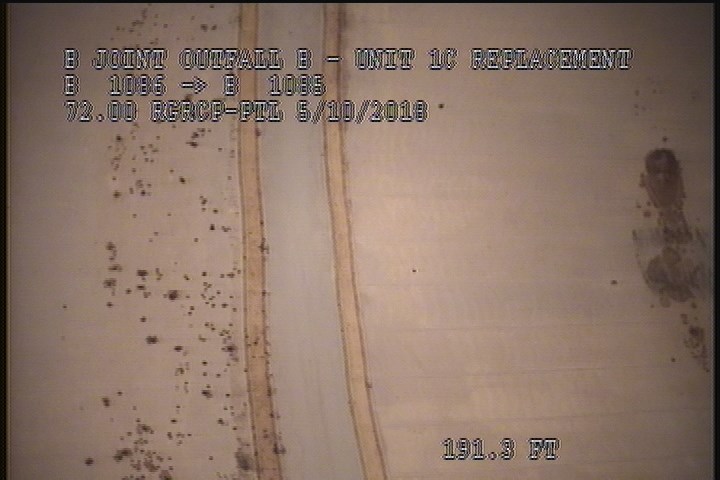

  • General Photograph

    191.3 ft. - General Photograph

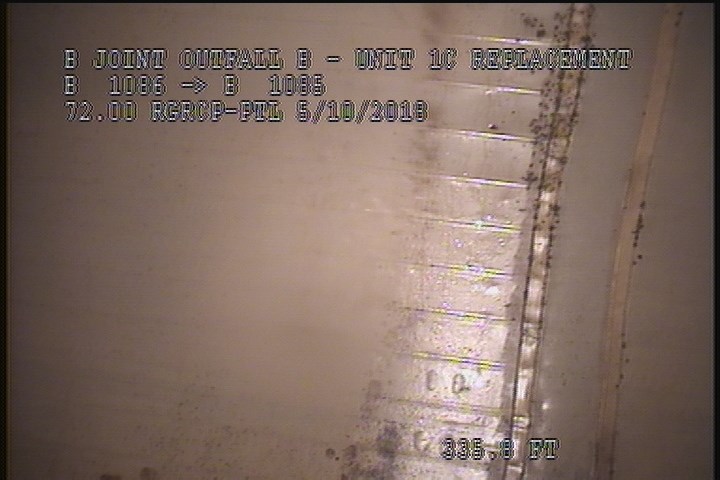

  • General Photograph

    335.8 ft. - General Photograph

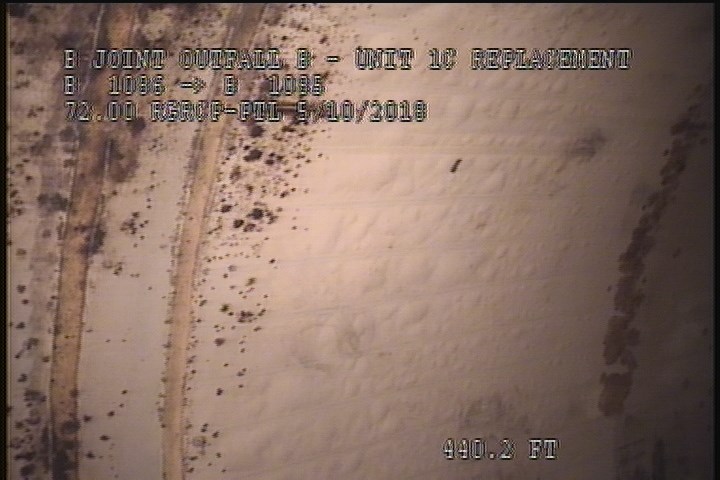

  • Lining Failure Blistered, from 08 to 04 o'clock, within 8 inches of joint: YES

    440.2 ft. - Lining Failure Blistered, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P23250Work order PENDING

Observations (11)

DistanceCodeObservation
0AMH9:29 AM
0.1MWL—
538MGOGrease Throughout The Reach (5%)
335.8MGP—
538.5MGOConn. @ Mh, 3 O' Clock. Active
0.1MWM—
539MGOConn. @ Mh, 9 O' Clock. UNKNOWN
0MGOGrease Throughout The Reach (5%)
440.2LFB—
539AMH9:56 AM
191.3MGP—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2018-05-10T09:27:17-07:00
documentation
FRANKLIN, IGNACIO, SHADLER
is_lateral_inspection
false
