Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 12, 2018, 11:38 AM

  • Section#12_J 0198_J 0502__2122018__G6958.mp4

Date
02/12/2018
W/O
0688894
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00057
PipeID
P26337
Time
3:38 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6958
Sewer Name
J JOINT OUTFALL J - UNIT 1E
City
PALO VERDES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
48
Purpose
Capital Improvement Program Assesment
Project
20180210MDM_JOINT_OUTFALL_J_UNIT_1E
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
J 0198
Downstream MH
J 0502
Dir. of Survey
Downstream
Length Surveyed
33.8 ft.
Total Length
33.8 ft.
Structural Index
2
Structural Quick
3127
Structural Rating
17
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
17
Pipe schematic from manhole J 0198 to J 0502
MH: J 0198MH: J 0502downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:25AM0 ft. MGO - General Observation - MH CONN 3:00 ACTIVE0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE4.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, - SEVERE AGG SPORATIC17.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE33.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE33.6 ft. MGO - General Observation - MH CONN 9:00 STOPLOG IN PLACE33.8 ft. AMH - Downstream Manhole, Survey Ends - 4:35AM

Observation photos (4)

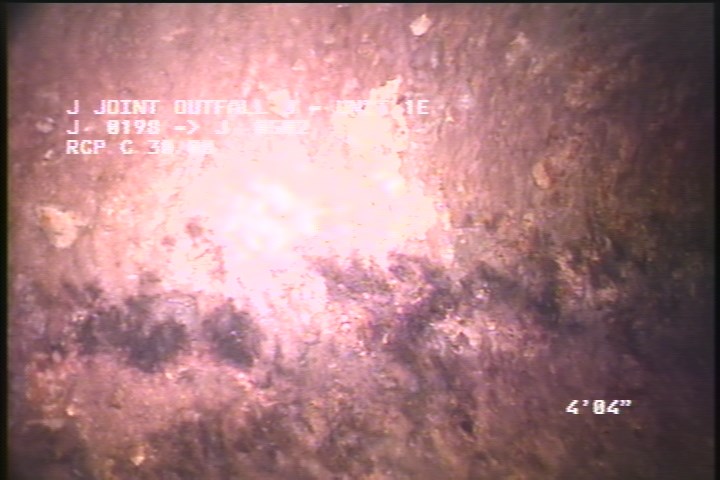

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

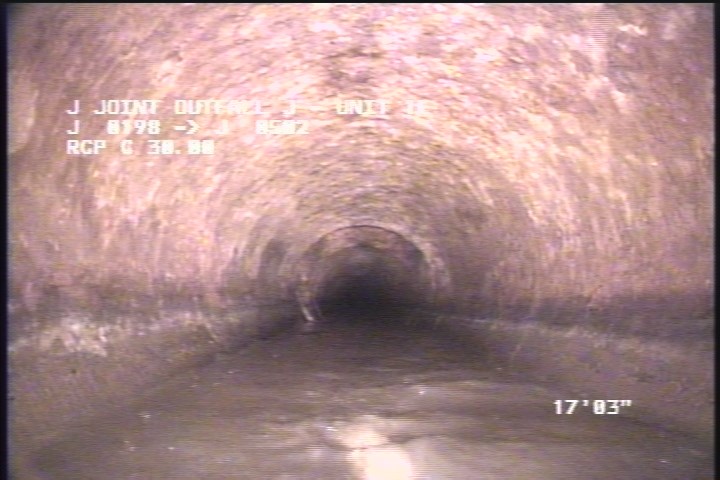

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, - SEVERE AGG SPORATIC

    4.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, - SEVERE AGG SPORATIC

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

    17.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

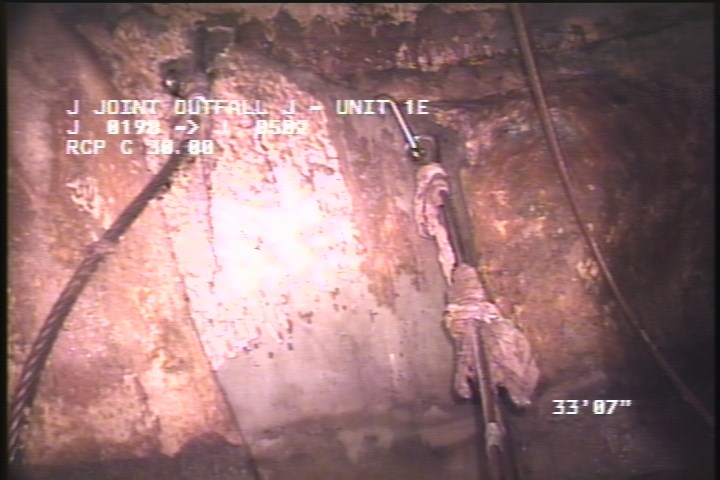

  • General Observation - MH CONN 9:00 STOPLOG IN PLACE

    33.6 ft. - General Observation - MH CONN 9:00 STOPLOG IN PLACE

All inspections of P26337Work order 0688894

Observations (10)

DistanceCodeObservation
0AMH4:25AM
0MGOMH CONN 3:00 ACTIVE
17.2SSSBLISTERING PEELING CONCRETE
33.8AMH4:35AM
0MWM—
4.3SAVSEVERE AGG SPORATIC
2SSSBLISTERING PEELING CONCRETE
33.6SSSBLISTERING PEELING CONCRETE
33.6MGOMH CONN 9:00 STOPLOG IN PLACE
0MWL—

Properties (6)

custom_field_three
SEVERE AGG SP[ORATIC
custom_field_two
3
customer
LACSD
datetime
2018-02-12T03:38:46-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
