Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 10, 2018, 01:06 PM

  • Section#7_J 0210_J 0207__2102018__G6957.mp4

Date
02/10/2018
W/O
0688894
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00057
PipeID
P11454
Time
5:06 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6957
Sewer Name
J JOINT OUTFALL J - UNIT 1E
City
PALO VERDES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
48
Purpose
Capital Improvement Program Assesment
Project
20180210MDM_JOINT_OUTFALL_J_UNIT_1E
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
J 0210
Downstream MH
J 0207
Dir. of Survey
Downstream
Length Surveyed
276.8 ft.
Total Length
276.8 ft.
Structural Index
2
Structural Quick
2J00
Structural Rating
112
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
112
Pipe schematic from manhole J 0210 to J 0207
MH: J 0210MH: J 0207downstream0 ft. AMH - Upstream Manhole, Survey Begins - 7:30AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. MGO - General Observation - MAG COAT 30% START 8:00 TO 4:002 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING CONCRETE11.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - PEELING CONCRETE25.9 ft. MGO - General Observation - MAG COAT 70% START276.2 ft. MGO - General Observation - MH CONN 9:00 ACTIVE276.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE276.2 ft. MGO - General Observation - MAG COAT 70% FINISH276.8 ft. AMH - Downstream Manhole, Survey Ends - 7:55AM

Observation photos (4)

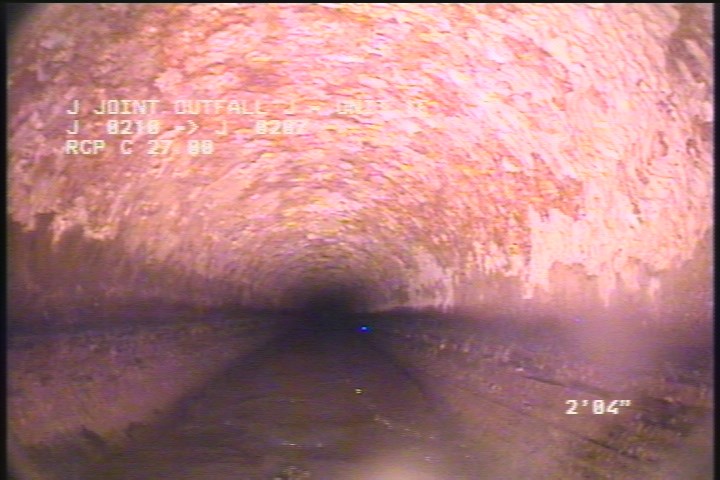

  • General Observation - MAG COAT 30% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 30% START 8:00 TO 4:00

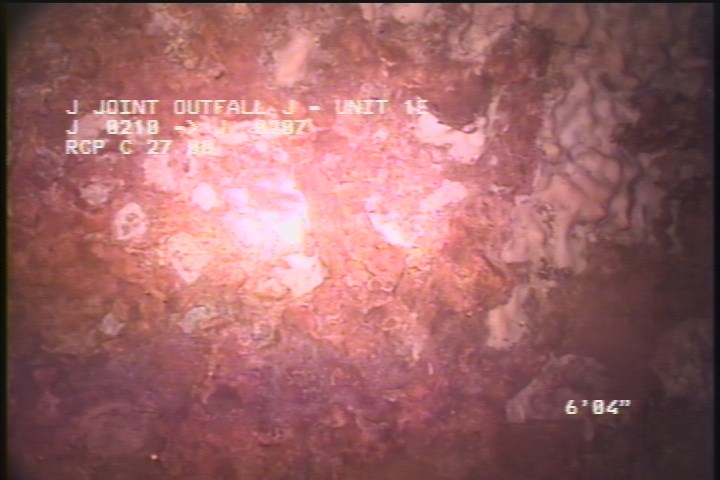

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING CONCRETE

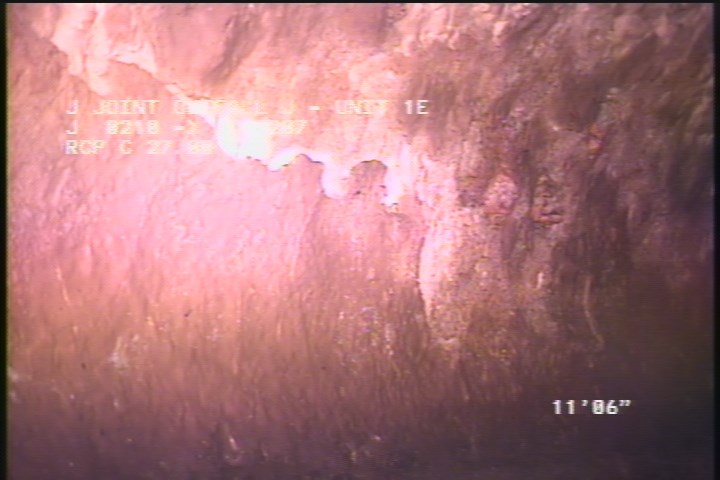

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - PEELING CONCRETE

    11.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - PEELING CONCRETE

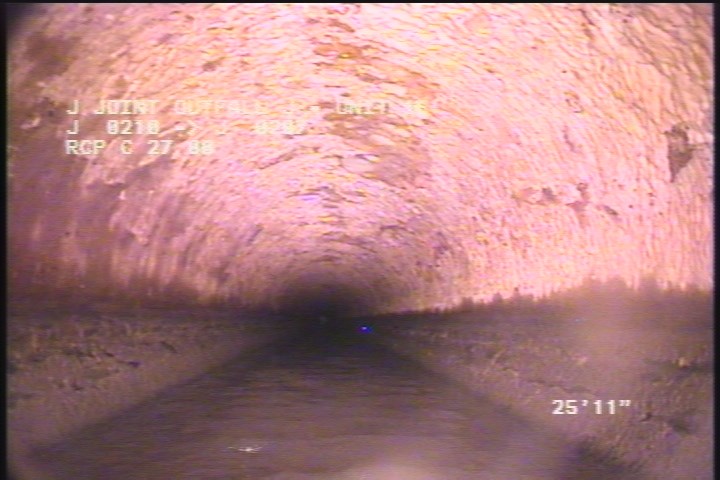

  • General Observation - MAG COAT 70% START

    25.9 ft. - General Observation - MAG COAT 70% START

All inspections of P11454Work order 0688894

Observations (11)

DistanceCodeObservation
0AMH7:30AM
0MWM—
25.9MGOMAG COAT 70% START
2MGOMAG COAT 30% START 8:00 TO 4:00
276.2MGOMH CONN 9:00 ACTIVE
276.8AMH7:55AM
0MWL—
2SSSPEELING BLISTERING CONCRETE
276.2SSSBLISTERING PEELING CONCRETE
276.2MGOMAG COAT 70% FINISH
11.5SSSPEELING CONCRETE

Properties (6)

custom_field_three
BLISTERING PEELING CONCRETE
custom_field_two
3
customer
LACSD
datetime
2018-02-10T05:06:07-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
