Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 10, 2018, 01:03 PM

  • Section#6_J 0211_J 0210__2102018__G6957.mp4

Date
02/10/2018
W/O
0688894
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00057
PipeID
P11455
Time
5:03 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6957
Sewer Name
J JOINT OUTFALL J - UNIT 1E
City
PALO VERDES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
48
Purpose
Capital Improvement Program Assesment
Project
20180210MDM_JOINT_OUTFALL_J_UNIT_1E
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
J 0211
Downstream MH
J 0210
Dir. of Survey
Downstream
Length Surveyed
380.9 ft.
Total Length
380.9 ft.
Structural Index
2
Structural Quick
2O00
Structural Rating
156
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
156
Pipe schematic from manhole J 0211 to J 0210
MH: J 0211MH: J 0210downstream0 ft. AMH - Upstream Manhole, Survey Begins - 6:55AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area2 ft. MGO - General Observation - MAG COAT 30% START 8:00 TO 4:002 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE66.7 ft. MGO - General Observation - MAG COAT 60% START185.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE311.2 ft. MGO - General Observation - MAG COAT 80% START341.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING CONCRETE380.2 ft. MGO - General Observation - MAG COAT 80% START380.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE380.9 ft. AMH - Downstream Manhole, Survey Ends - 7:25AM

Observation photos (6)

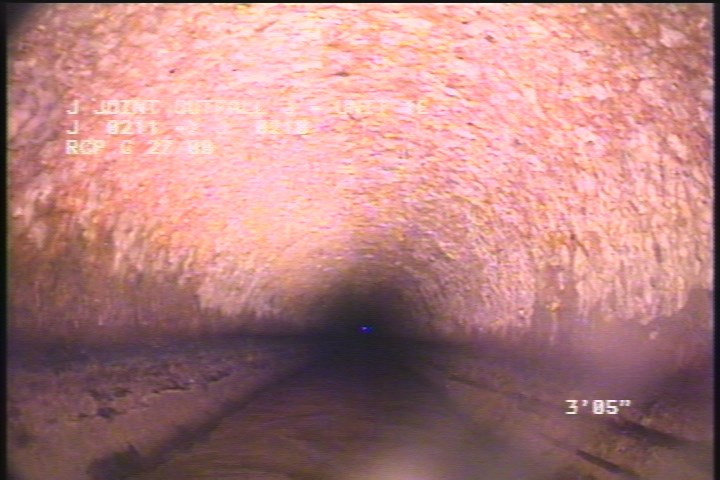

  • General Observation - MAG COAT 30% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 30% START 8:00 TO 4:00

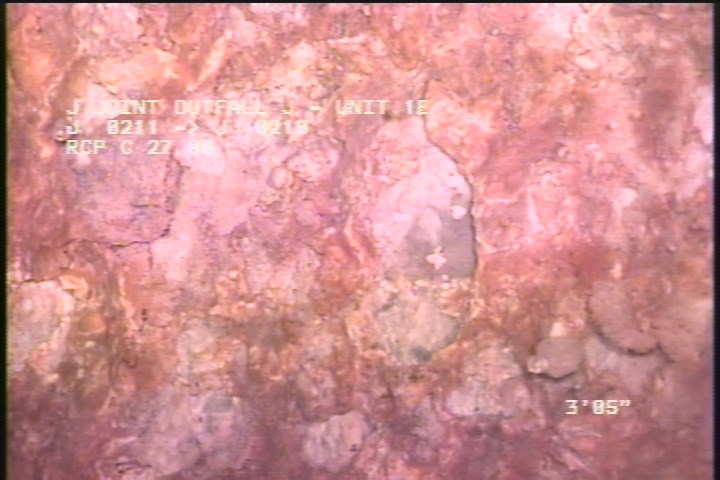

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

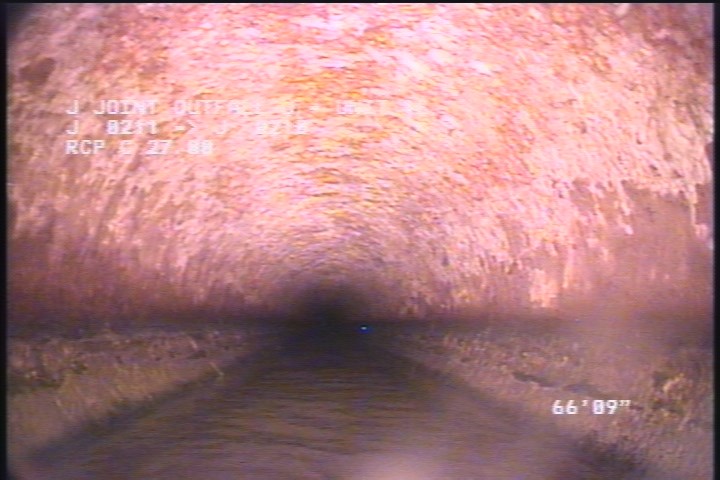

  • General Observation - MAG COAT 60% START

    66.7 ft. - General Observation - MAG COAT 60% START

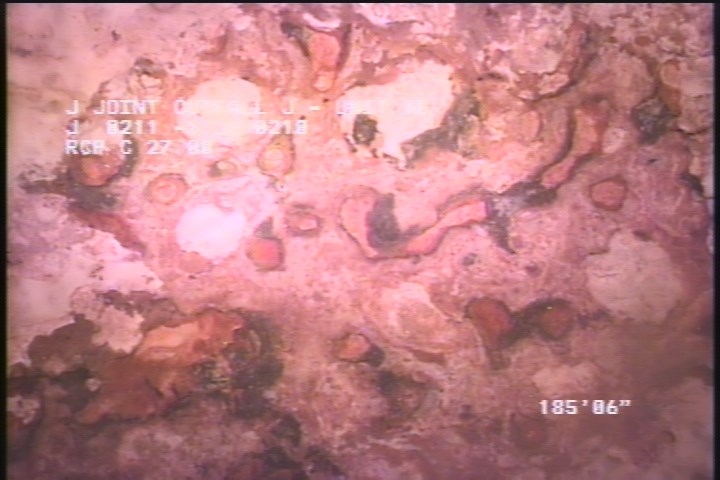

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE

    185.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE

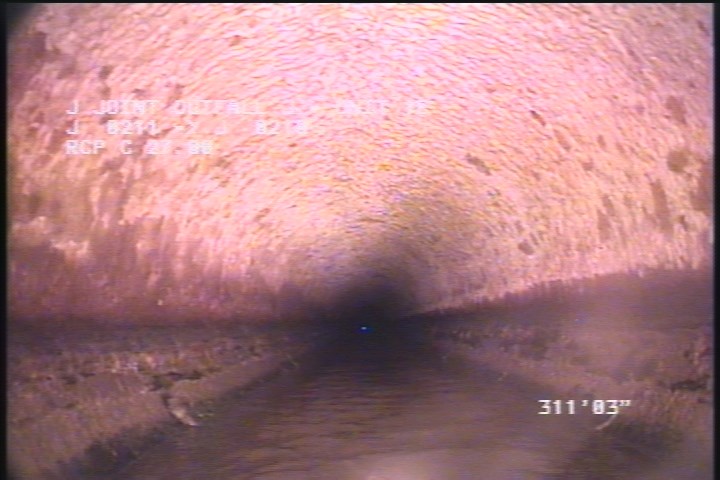

  • General Observation - MAG COAT 80% START

    311.2 ft. - General Observation - MAG COAT 80% START

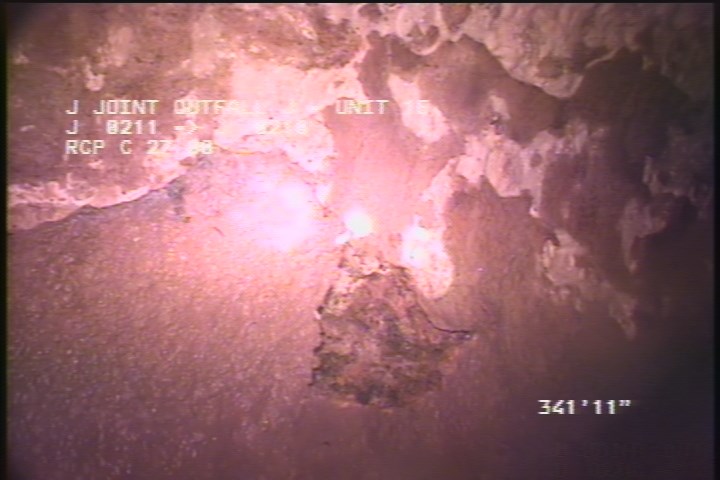

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING CONCRETE

    341.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING CONCRETE

All inspections of P11455Work order 0688894

Observations (12)

DistanceCodeObservation
0AMH6:55AM
380.9AMH7:25AM
2MGOMAG COAT 30% START 8:00 TO 4:00
311.2MGOMAG COAT 80% START
0MWM—
0MWL—
2SSSBLISTERING PEELING CONCRETE
185.5SSSBLISTERING CONCRETE
380.2MGOMAG COAT 80% START
380.2SSSBLISTERING PEELING CONCRETE
341.9SSSPEELING CONCRETE
66.7MGOMAG COAT 60% START

Properties (6)

custom_field_three
BLISTERING PEELING CONCRETE
custom_field_two
3
customer
LACSD
datetime
2018-02-10T05:03:21-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
