Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 10, 2018, 01:02 PM

  • Section#5_J 0212_J 0211__2102018__G6957.mp4

Date
02/10/2018
W/O
0688894
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00057
PipeID
P11456
Time
5:02 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6957
Sewer Name
J JOINT OUTFALL J - UNIT 1E
City
PALO VERDES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
48
Purpose
Capital Improvement Program Assesment
Project
20180210MDM_JOINT_OUTFALL_J_UNIT_1E
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
J 0212
Downstream MH
J 0211
Dir. of Survey
Downstream
Length Surveyed
317.7 ft.
Total Length
317.7 ft.
Structural Index
2
Structural Quick
2L00
Structural Rating
128
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
128
Pipe schematic from manhole J 0212 to J 0211
MH: J 0212MH: J 0211downstream0 ft. AMH - Upstream Manhole, Survey Begins - 6:25AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE2 ft. MGO - General Observation - MAG COAT 70% START 8:00 TO 4:0015.5 ft. MGO - General Observation - MAG COAT 20% START60.1 ft. MGO - General Observation - MAG COAT 70% START75.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE259.1 ft. MGO - General Observation - MAG COAT 80% START317 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE317 ft. MGO - General Observation - MAG COAT 80% FINISH317.7 ft. AMH - Downstream Manhole, Survey Ends - 6:50AM

Observation photos (6)

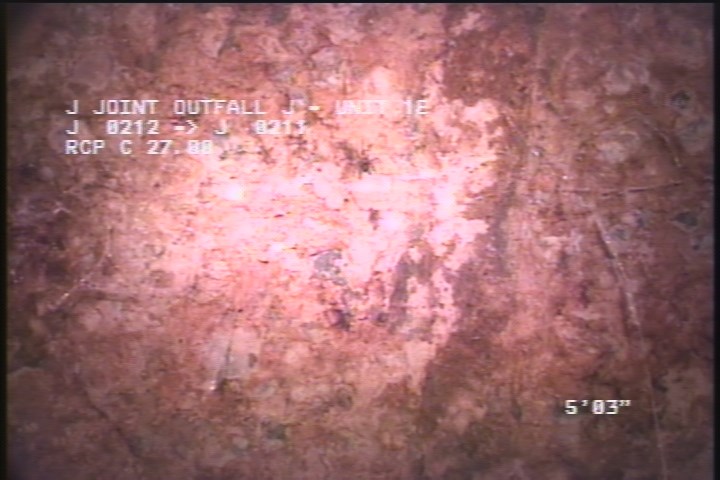

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

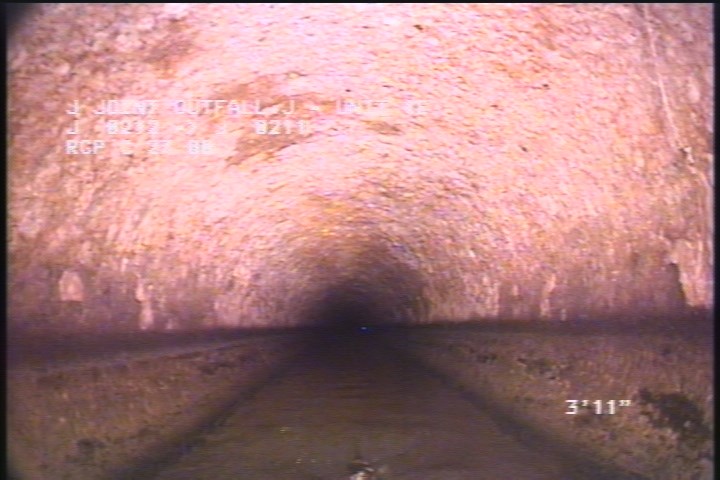

  • General Observation - MAG COAT 70% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 70% START 8:00 TO 4:00

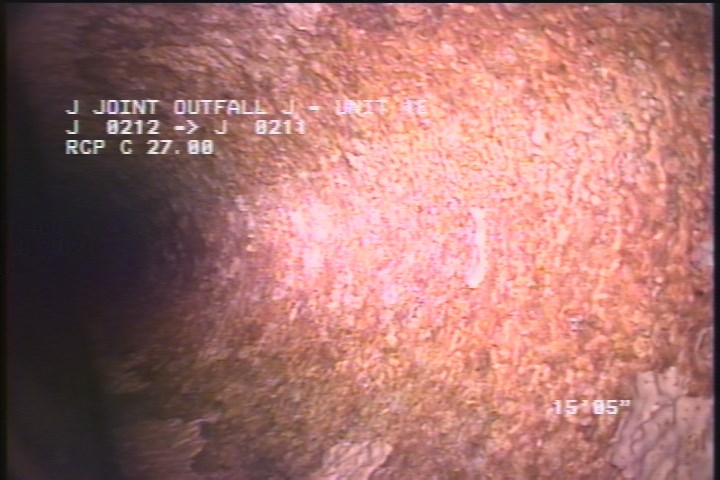

  • General Observation - MAG COAT 20% START

    15.5 ft. - General Observation - MAG COAT 20% START

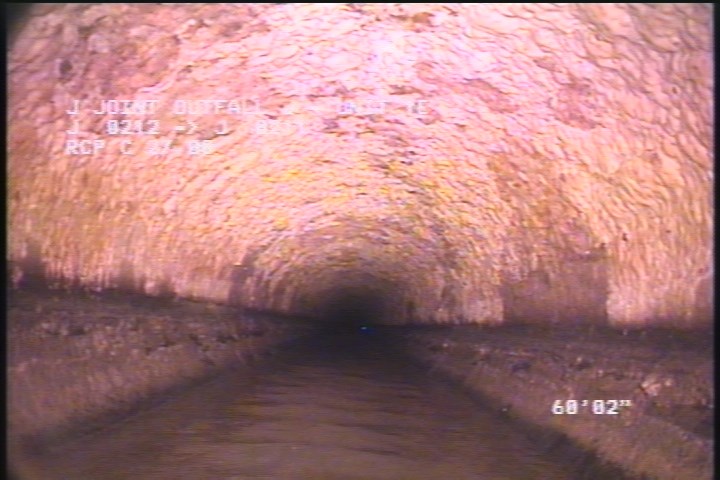

  • General Observation - MAG COAT 70% START

    60.1 ft. - General Observation - MAG COAT 70% START

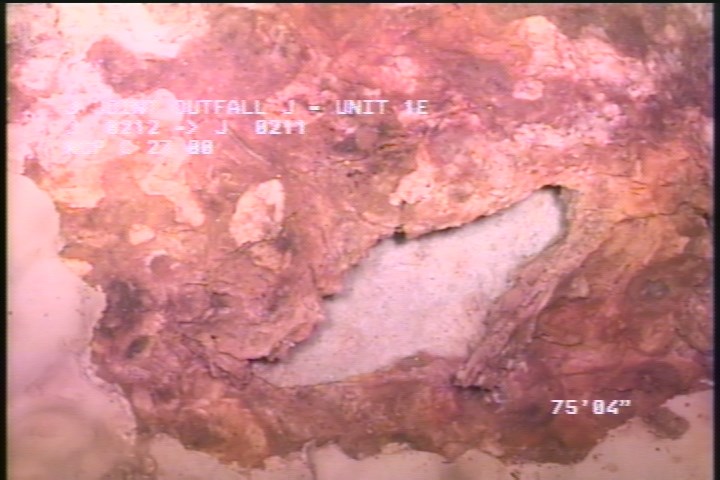

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE

    75.3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE

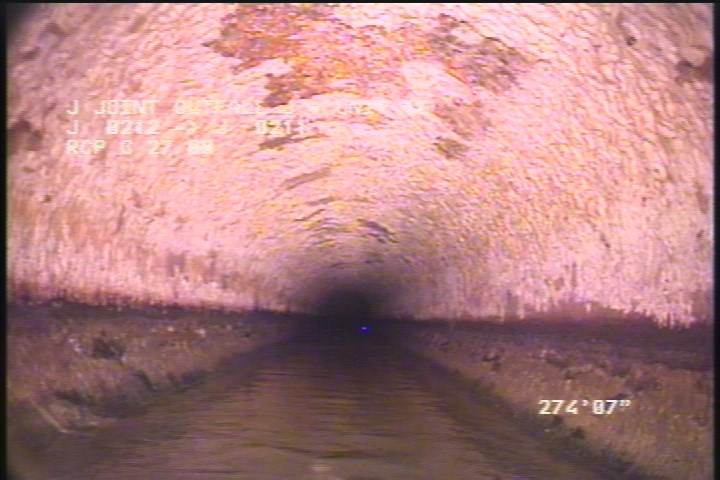

  • General Observation - MAG COAT 80% START

    259.1 ft. - General Observation - MAG COAT 80% START

All inspections of P11456Work order 0688894

Observations (12)

DistanceCodeObservation
2SSSBLISTERING PEELING CONCRETE
60.1MGOMAG COAT 70% START
15.5MGOMAG COAT 20% START
0AMH6:25AM
0MWM—
75.3SSSBLISTERING CONCRETE
317SSSBLISTERING PEELING CONCRETE
317MGOMAG COAT 80% FINISH
0MWL—
259.1MGOMAG COAT 80% START
2MGOMAG COAT 70% START 8:00 TO 4:00
317.7AMH6:50AM

Properties (6)

custom_field_three
BLISTERING PEELING CONCRETE
custom_field_two
3
customer
LACSD
datetime
2018-02-10T05:02:28-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
