Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 10, 2018, 01:00 PM

  • Section#4_J 0213_J 0212__2102018__G6957.mp4

Date
02/10/2018
W/O
0688894
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00057
PipeID
P11457
Time
5:00 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6957
Sewer Name
J JOINT OUTFALL J - UNIT 1E
City
PALO VERDES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
48
Purpose
Capital Improvement Program Assesment
Project
20180210MDM_JOINT_OUTFALL_J_UNIT_1E
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
J 0213
Downstream MH
J 0212
Dir. of Survey
Downstream
Length Surveyed
332.5 ft.
Total Length
332.5 ft.
Structural Index
2
Structural Quick
2M00
Structural Rating
136
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
136
Pipe schematic from manhole J 0213 to J 0212
MH: J 0213MH: J 0212downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:40AM2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING CONCRETE2 ft. MGO - General Observation - MAG COAT 70% START 8:00 TO 4:0061.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - BIISTERING CONCRETE229.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE332.1 ft. MGO - General Observation - MAG COAT 70% FINISH332.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE332.5 ft. AMH - Downstream Manhole, Survey Ends - 6:15AM

Observation photos (4)

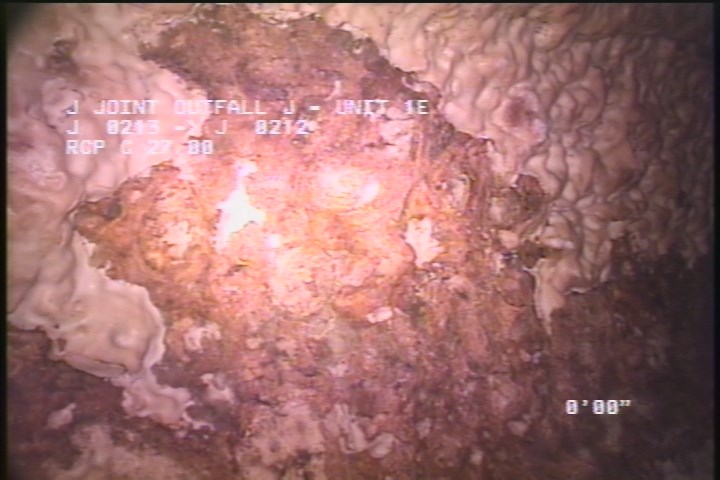

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING CONCRETE

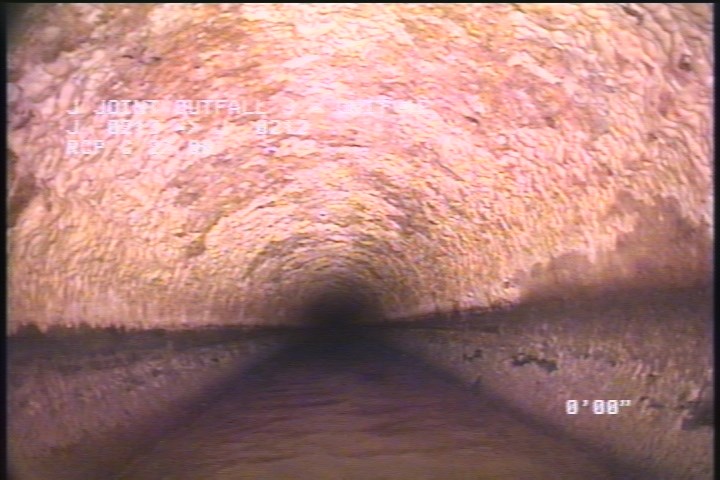

  • General Observation - MAG COAT 70% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 70% START 8:00 TO 4:00

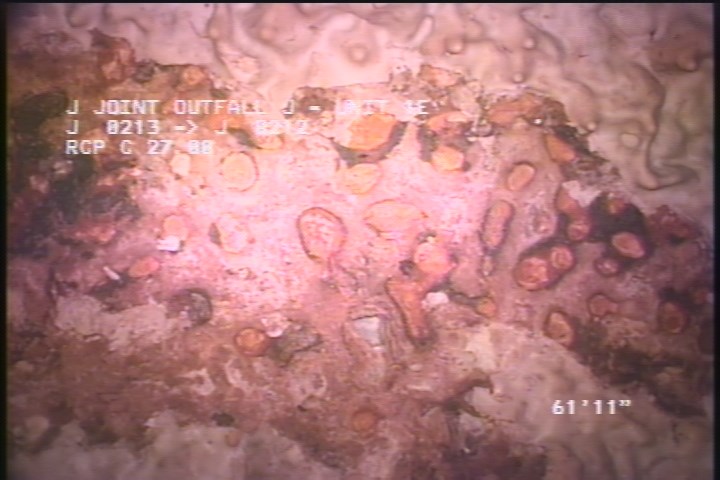

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - BIISTERING CONCRETE

    61.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - BIISTERING CONCRETE

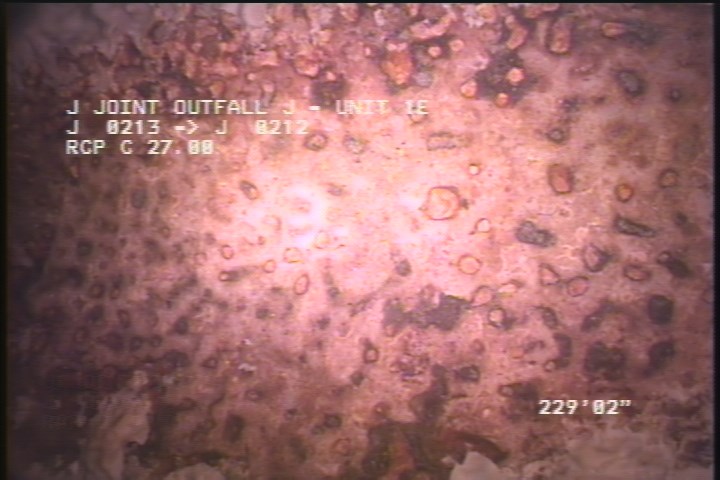

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE

    229.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE

All inspections of P11457Work order 0688894

Observations (10)

DistanceCodeObservation
61.9SSSBIISTERING CONCRETE
0MWL—
332.1MGOMAG COAT 70% FINISH
2SSSPEELING BLISTERING CONCRETE
0MWM—
0AMH5:40AM
332.1SSSBLISTERING PEELING CONCRETE
229.1SSSBLISTERING CONCRETE
2MGOMAG COAT 70% START 8:00 TO 4:00
332.5AMH6:15AM

Properties (6)

custom_field_three
BLISTERING PEELING CONCRETE
custom_field_two
3
customer
LACSD
datetime
2018-02-10T05:00:17-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
