Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 10, 2018, 09:32 AM

  • Section#3_J 0214_J 0213__2102018__G6956.mp4

Date
02/10/2018
W/O
0688894
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00057
PipeID
P11458
Time
1:32 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6956
Sewer Name
J JOINT OUTFALL J - UNIT 1E
City
PALO VERDES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
48
Purpose
Capital Improvement Program Assesment
Project
20180210MDM_JOINT_OUTFALL_J_UNIT_1E
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
J 0214
Downstream MH
J 0213
Dir. of Survey
Downstream
Length Surveyed
416.5 ft.
Total Length
416.5 ft.
Structural Index
2
Structural Quick
2P00
Structural Rating
172
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
172
Pipe schematic from manhole J 0214 to J 0213
MH: J 0214MH: J 0213downstream0 ft. AMH - Upstream Manhole, Survey Begins - 3:20AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE2 ft. MGO - General Observation - MAG COAT 75% START58.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE87.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING CONCRETE114.3 ft. MGO - General Observation - MAG COAT 60%373.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE415.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE415.7 ft. MGO - General Observation - MAG COAT 60% FINISH416.5 ft. AMH - Downstream Manhole, Survey Ends - 3:55AM

Observation photos (6)

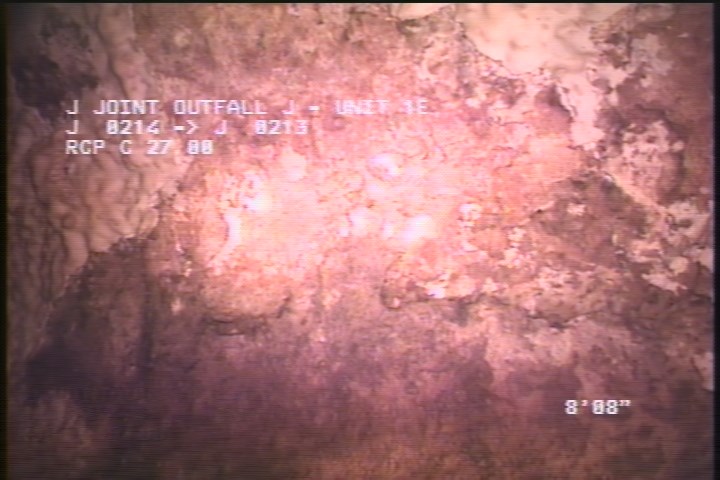

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

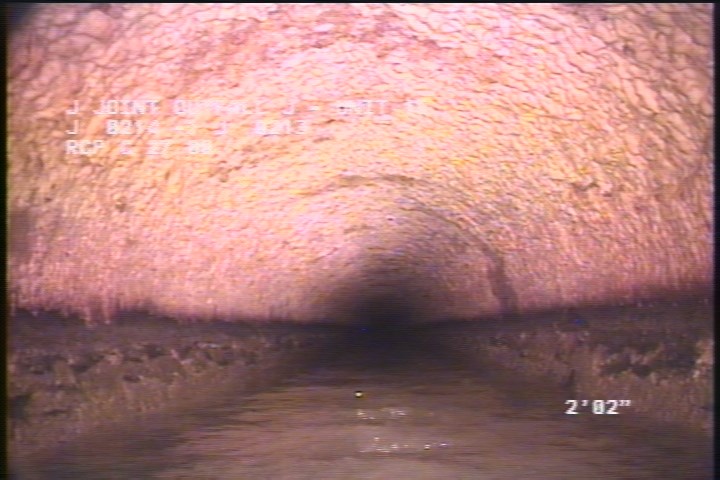

  • General Observation - MAG COAT 75% START

    2 ft. - General Observation - MAG COAT 75% START

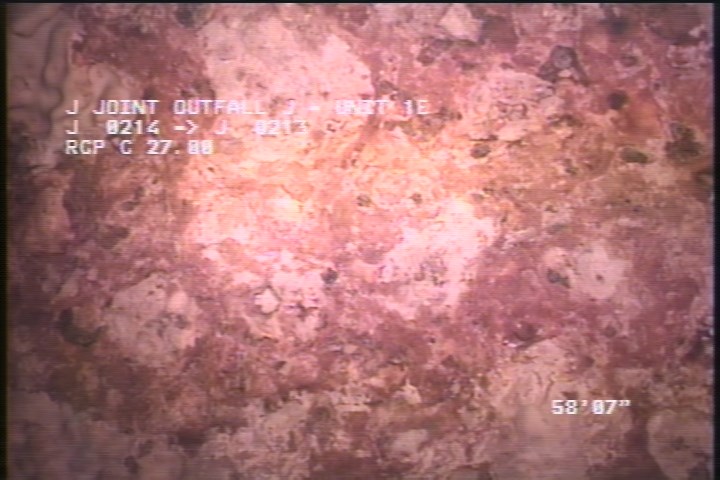

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE

    58.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE

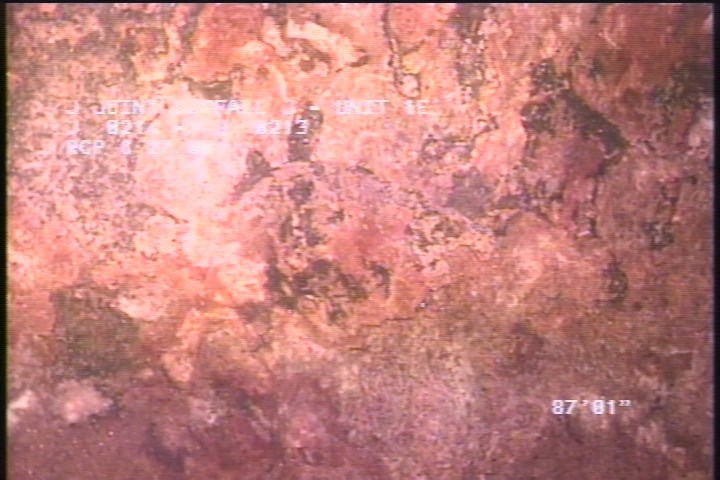

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING CONCRETE

    87.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - PEELING CONCRETE

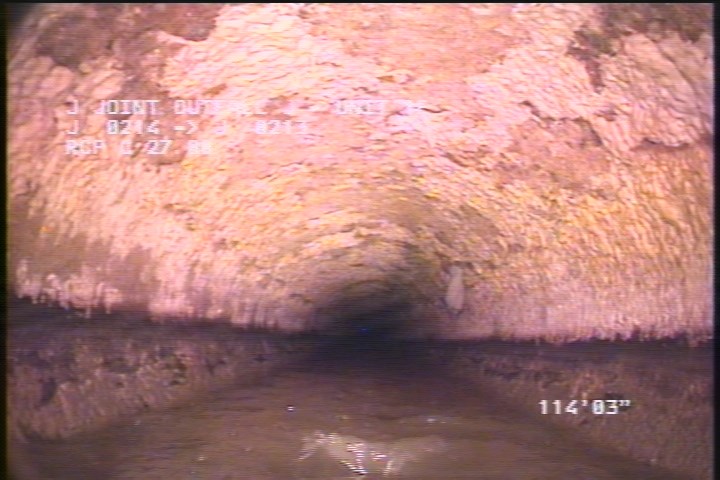

  • General Observation - MAG COAT 60%

    114.3 ft. - General Observation - MAG COAT 60%

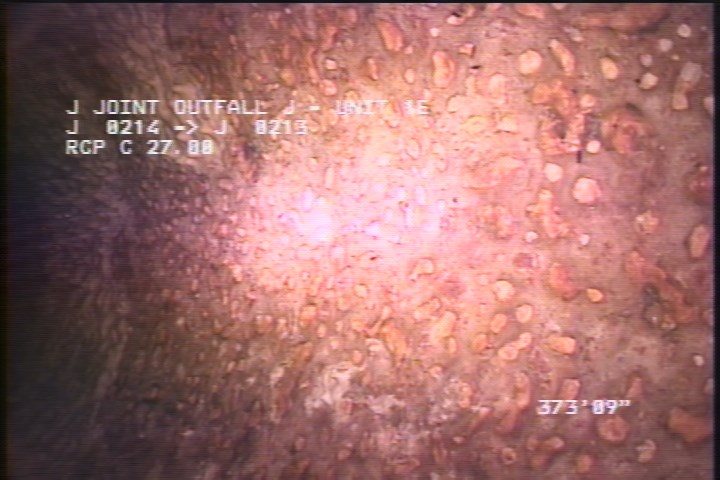

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

    373.7 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

All inspections of P11458Work order 0688894

Observations (12)

DistanceCodeObservation
114.3MGOMAG COAT 60%
2SSSBLISTERING PEELING CONCRETE
0AMH3:20AM
58.6SSSBLISTERING CONCRETE
2MGOMAG COAT 75% START
415.7SSSBLISTERING PEELING CONCRETE
373.7SSSBLISTERING PEELING CONCRETE
415.7MGOMAG COAT 60% FINISH
0MWM—
87.1SSSPEELING CONCRETE
0MWL—
416.5AMH3:55AM
