Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 9, 2018, 09:13 AM

  • Section#4_01 0970_01 0969__292018__G6953.mp4

Date
02/09/2018
W/O
0686794
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00228
PipeID
P01807
Time
1:13 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6953
Sewer Name
01 WRIGHT ROAD TRUNK
City
MAYWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
05
Purpose
Capital Improvement Program Assesment
Project
20180209MDM_WRIGHT_ROAD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
01 0970
Downstream MH
01 0969
Dir. of Survey
Downstream
Length Surveyed
157.9 ft.
Total Length
158 ft.
Structural Index
3
Structural Quick
3G21
Structural Rating
116
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
116
Pipe schematic from manhole 01 0970 to 01 0969
MH: 01 0970MH: 01 0969downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:20AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area2.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT7.2 ft. MGO - General Observation - 12:00 SLIGHT LONG FRACTURE25.4 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE27.9 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H30.2 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H30.2 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - H40.4 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H74.4 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H79.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H134.5 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - H139.4 ft. MGO - General Observation - 12:00 LONG FRACTURE157.2 ft. MGO - General Observation - MH CONN 9:00 STUB157.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT158 ft. AMH - Downstream Manhole, Survey Ends - 4:40AM

Observation photos (3)

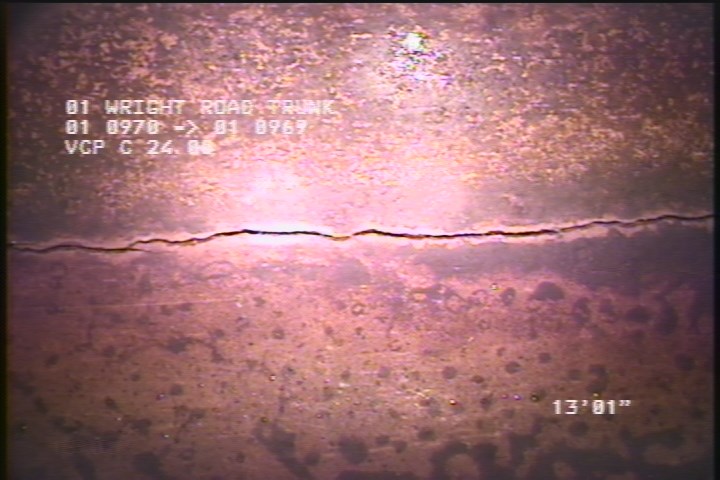

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    2.2 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

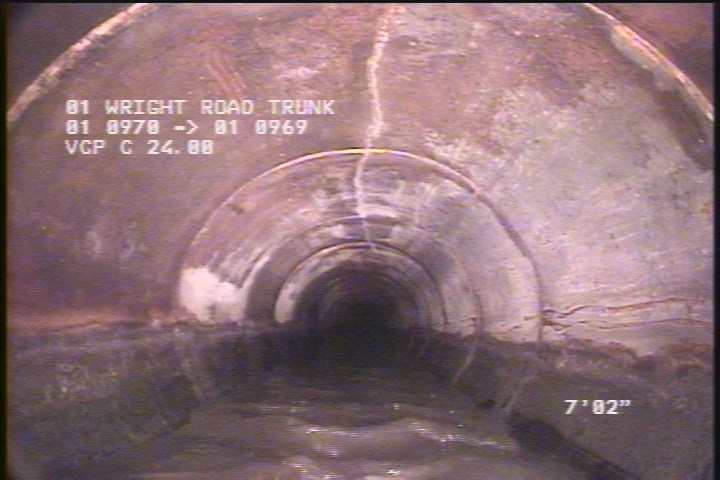

  • General Observation - 12:00 SLIGHT LONG FRACTURE

    7.2 ft. - General Observation - 12:00 SLIGHT LONG FRACTURE

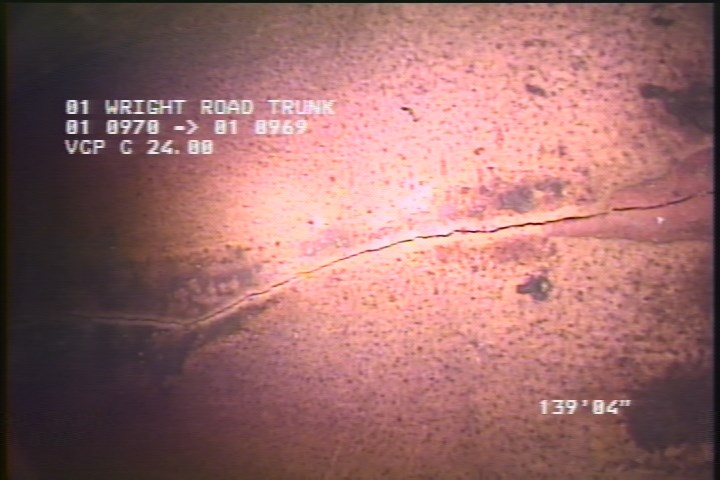

  • General Observation - 12:00 LONG FRACTURE

    139.4 ft. - General Observation - 12:00 LONG FRACTURE

All inspections of P01807Work order 0686794

Observations (17)

DistanceCodeObservation
139.4MGO12:00 LONG FRACTURE
0AMH4:20AM
74.4FLH
30.2FLH
157.2MGOMH CONN 9:00 STUB
7.2MGO12:00 SLIGHT LONG FRACTURE
30.2FLH
25.4FCHAIRLINE
158AMH4:40AM
27.9FLH
40.4FLH
2.2FLSLIGHT
79.2FLH
0MWL—
157.2FLSLIGHT
0MWM—
134.5FLH

Properties (6)

custom_field_three
SLIGHT LONG FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2018-02-09T01:13:23-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
