Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 9, 2018, 09:11 AM

  • Section#2_01 0980_01 0979__292018__G6953.mp4

Date
02/09/2018
W/O
0686794
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00228
PipeID
P01818
Time
1:11 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6953
Sewer Name
01 WRIGHT ROAD TRUNK
City
MAYWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
05
Purpose
Capital Improvement Program Assesment
Project
20180209MDM_WRIGHT_ROAD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
01 0980
Downstream MH
01 0979
Dir. of Survey
Downstream
Length Surveyed
359.8 ft.
Total Length
359.8 ft.
Structural Index
3
Structural Quick
3C2A
Structural Rating
88
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
88
Pipe schematic from manhole 01 0980 to 01 0979
MH: 01 0980MH: 01 0979downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:00AM0 ft. MGO - General Observation - MH CONN 3:00 ACTIVE0 ft. MWM - Water Mark, 20 %of cross sectional area5.7 ft. FC - Fracture Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES - SLIGHT8.5 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - HAIRLINE11.2 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - H18.9 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - H31.4 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H31.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H37.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H47.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, - H47.2 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H60.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H75.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H82.9 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - H139 ft. MGO - General Observation - 24" VCP143.4 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - H170.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT176.4 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H183 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT221.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H227 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H230 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H236.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H257.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H293.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT301 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H308.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT311.3 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H316.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H319.1 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H323.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H329.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H332.8 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H340 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H359.2 ft. MGO - General Observation - MH CONN 3:00 ACTIVE359.2 ft. MGO - General Observation - MH CONN 9:00 ACTIVE359.8 ft. AMH - Downstream Manhole, Survey Ends - 2:40AM

Observation photos (4)

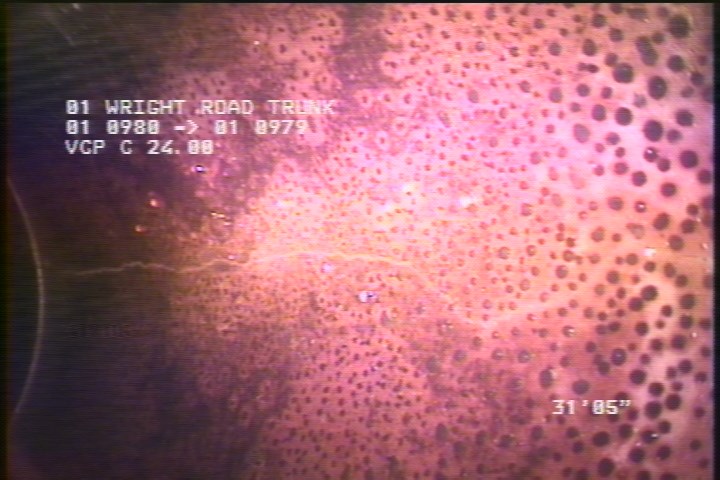

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

    31.4 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

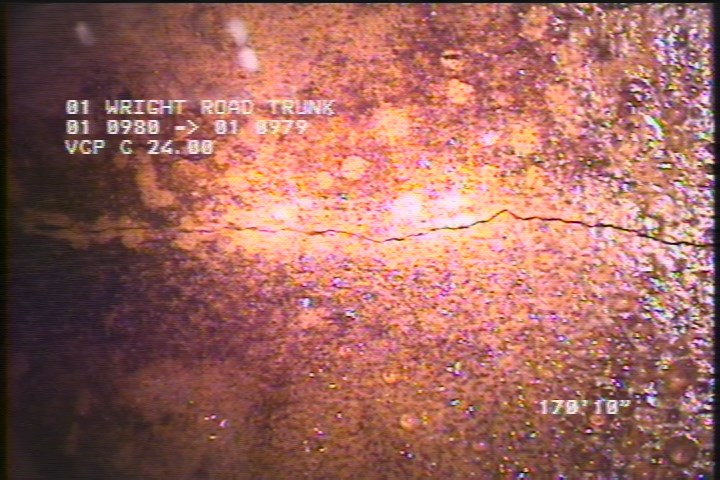

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    170.9 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

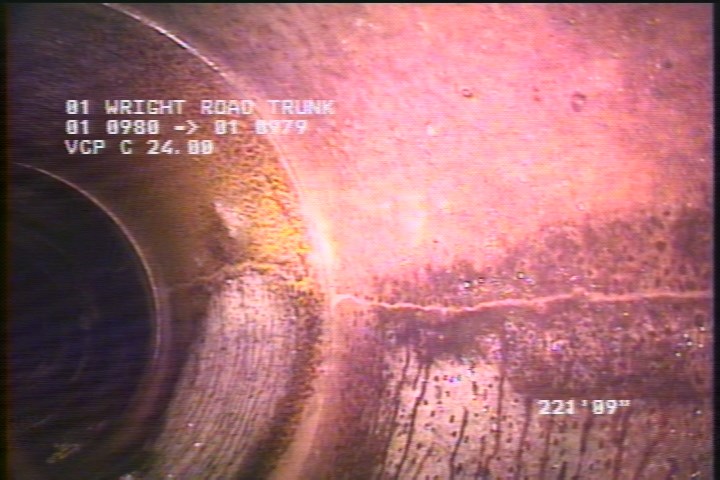

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

    221.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

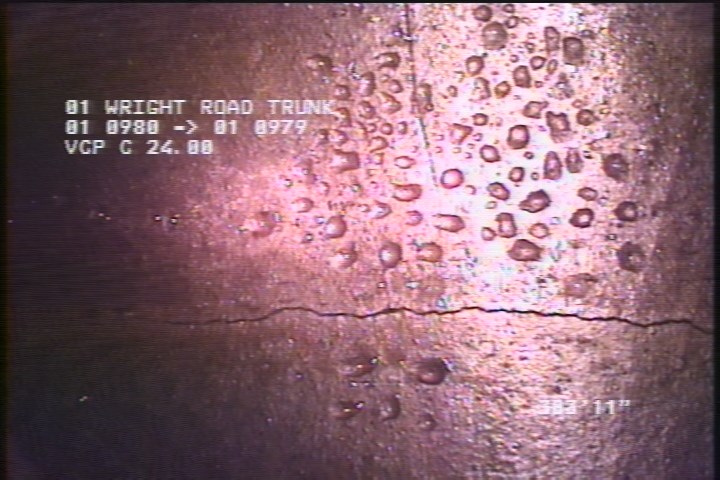

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    293.3 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

All inspections of P01818Work order 0686794

Observations (39)

DistanceCodeObservation
75.4FLH
329.5FLH
18.9FCH
227FLH
319.1FLH
359.2MGOMH CONN 3:00 ACTIVE
47.2FLH
183FLSLIGHT
176.4FLH
0MWL—
31.4FLH
293.3FLSLIGHT
340FCH
257.8FLH
221.8FLH
47.2FCH
301FCH
323.4FLH
31.4FLH
8.5FCHAIRLINE
0AMH2:00AM
332.8FCH
170.9FLSLIGHT
230FLH
11.2FCH
359.8AMH2:40AM
82.9FCH
316.4FLH
37.7FLH
0MGOMH CONN 3:00 ACTIVE
359.2MGOMH CONN 9:00 ACTIVE
236.4FLH
139MGO24" VCP
311.3FCH
308.7FLSLIGHT
60.5FLH
0MWM—
143.4FCH
5.7FCSLIGHT

Properties (6)

custom_field_three
LONG SLIGHT FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2018-02-09T01:11:27-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
