Wastewater/Activity/PacpInspection/1.0Jul 6, 2018, 07:38 AM
03 0559_03 0558_762018_044254.mp4
- Date
- 07/06/2018
- W/O
- 0711839
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00367
- PipeID
- P05009
- Time
- 12:38 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0926
- Sewer Name
- 03 LOS COYOTES DIAGONAL RELIEF TRUNK
- City
- LAKEWOOD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- 20180629MDM_LOS_COYOTES_DIAGONAL_RELIEF_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 03 0559
- Downstream MH
- 03 0558
- Dir. of Survey
- Downstream
- Length Surveyed
- 13 ft.
- Total Length
- 13 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 5131
- O&M Rating
- 10
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

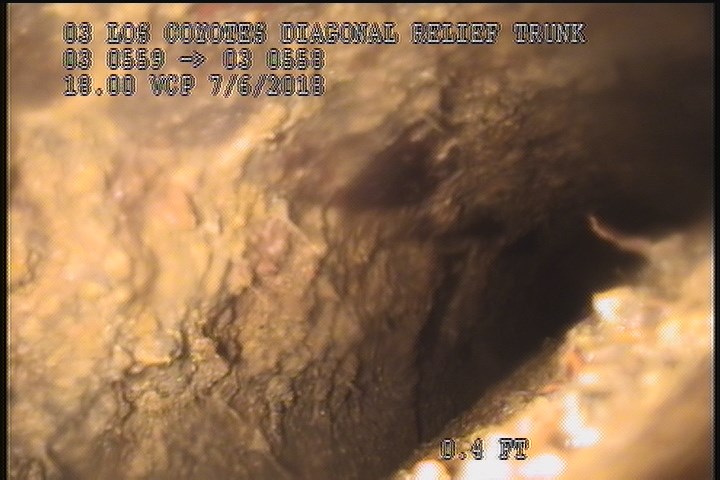

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES, Start
2 ft. - Deposits Settled Other, 80 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start - FLOATING SLUDGE

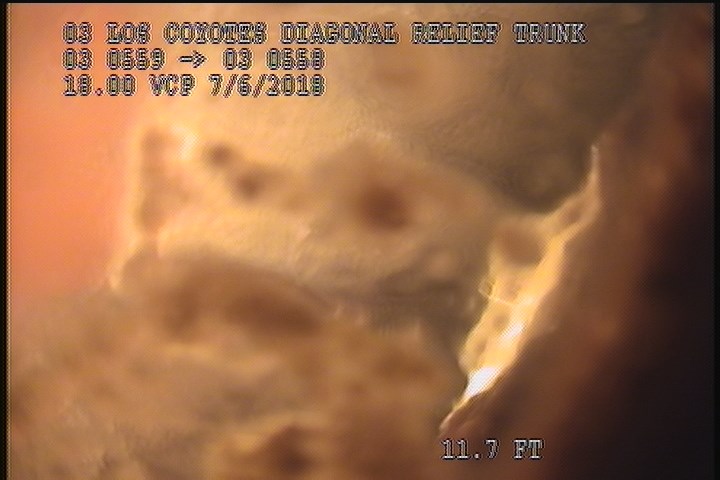

11.7 ft. - Survey Abandoned - FLOATING SLUDGE ON CAMERA
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2 | DAGS | — |
| 11.7 | MSA | FLOATING SLUDGE ON CAMERA |
| 2 | DSZ | FLOATING SLUDGE |
| 11.4 | DAGS | — |
| 0 | AMH | 4:40AM |
| 11.4 | DSZ | FLOATING SLUDGE |
| -1.3 | MWM | — |
Properties (4)
- customer
- LACSD
- datetime
- 2018-07-06T00:38:10-07:00
- documentation
- MARTIN,OLIVER 111,YOUNG
- is_lateral_inspection
- false
