Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 3, 2018, 09:00 PM

  • S_StartNode_29 0112_732018_140333.mp4

Date
07/03/2018
W/O
0711161
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00273
PipeID
P23899
Time
2:00 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7750
Sewer Name
29 33RD STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
20180629DF_33RD_STREET_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0112
Dir. of Survey
Upstream
Length Surveyed
85.7 ft.
Total Length
85.7 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 29 0112 to unknown
MH: 29 0112MH: —upstream0 ft. AMH - Upstream Manhole, Survey Ends - 2:13 PM2.6 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open5.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 4" - Open8.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish35.1 ft. MGP - General Photograph - SEAM TAPE57.9 ft. MGP - General Photograph83.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start85.7 ft. MGO - General Observation - ROACHES @ MH85.7 ft. MWL - Water Level, 5 %of cross sectional area85.7 ft. AMH - Downstream Manhole, Survey Begins - 2:01 PM85.7 ft. MWM - Water Mark, 10 %of cross sectional area

Observation photos (4)

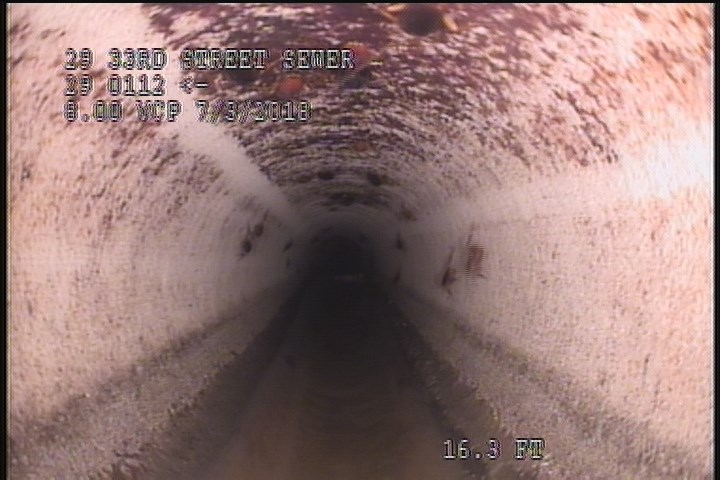

  • Water Mark, 10 %of cross sectional area

    0 ft. - Water Mark, 10 %of cross sectional area

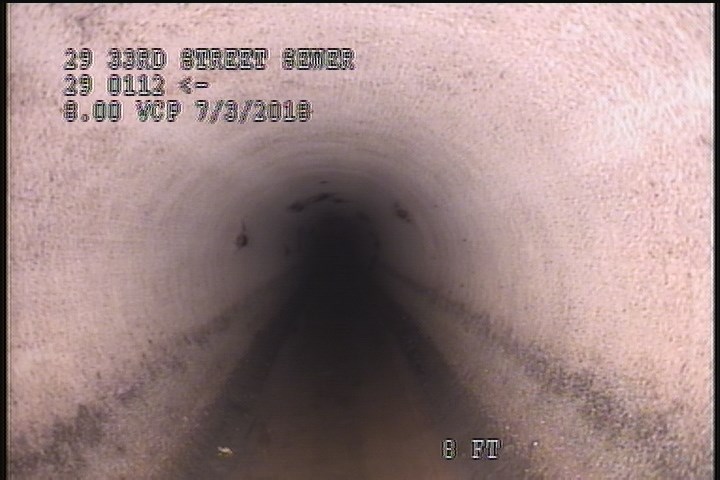

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

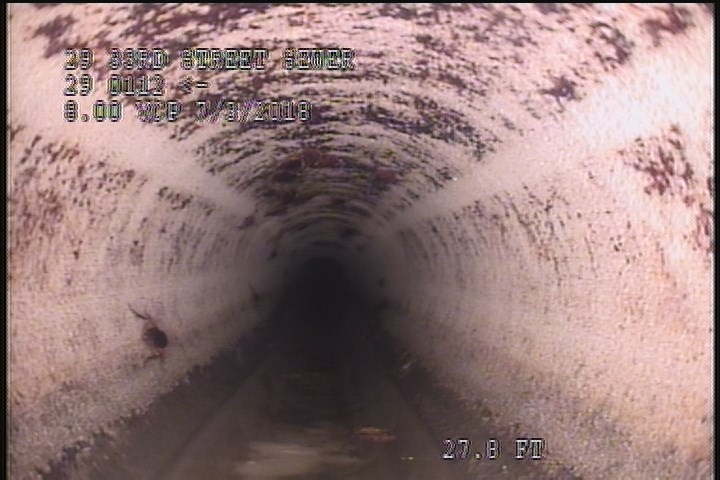

  • General Photograph

    27.8 ft. - General Photograph

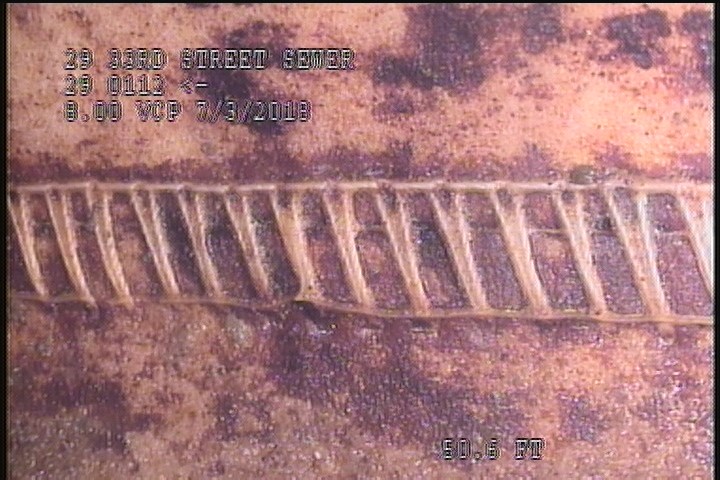

  • General Photograph - SEAM TAPE

    50.6 ft. - General Photograph - SEAM TAPE

All inspections of P23899Work order 0711161

Observations (11)

DistanceCodeObservation
50.6MGPSEAM TAPE
80.5TFOpen
27.8MGP—
0MGOROACHES @ MH
2SSS—
85.7AMH2:13 PM
0MWL—
76.8SSS—
0AMH2:01 PM
83.1TFOpen
0MWM—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2018-07-03T14:00:18-07:00
documentation
FRANKLIN, PARAISO, AHUMADA
is_lateral_inspection
false
