Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 3, 2018, 06:54 PM

  • S_StartNode_29 0119_732018_122003.mp4

Date
07/03/2018
W/O
0711161
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00273
PipeID
P23909
Time
11:54 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7750
Sewer Name
29 33RD STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
20180629DF_33RD_STREET_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0119
Dir. of Survey
Upstream
Length Surveyed
237.9 ft.
Total Length
237.9 ft.
Structural Index
4
Structural Quick
5121
Structural Rating
7
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 29 0119 to unknown
MH: 29 0119MH: —upstream0 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)0 ft. AMH - Upstream Manhole, Survey Ends - 12:44 PM1.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish4.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"6.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"17 ft. MGP - General Photograph55.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"83 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"103.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"106.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"130.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - OPEN150.2 ft. B - Broken, from 07 to 05 o'clock, within 8 inches of joint: YES157.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open176.9 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open182 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"209.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"233.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"235.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start237.9 ft. MWM - Water Mark, 10 %of cross sectional area237.9 ft. MGO - General Observation - ROACHES @ MH237.9 ft. AMH - Downstream Manhole, Survey Begins - 12:10 PM237.9 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (3)

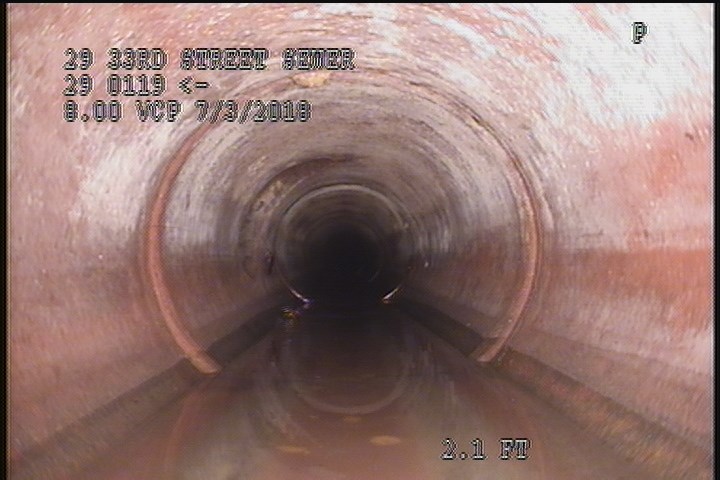

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

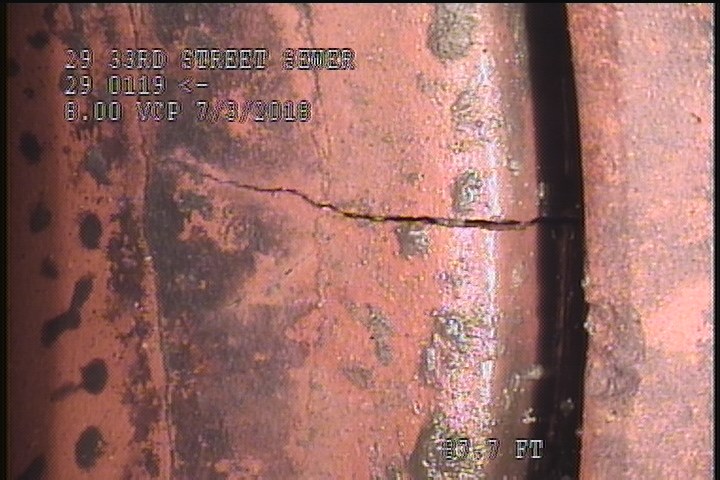

  • Broken, from 07 to 05 o'clock, within 8 inches of joint: YES

    87.7 ft. - Broken, from 07 to 05 o'clock, within 8 inches of joint: YES

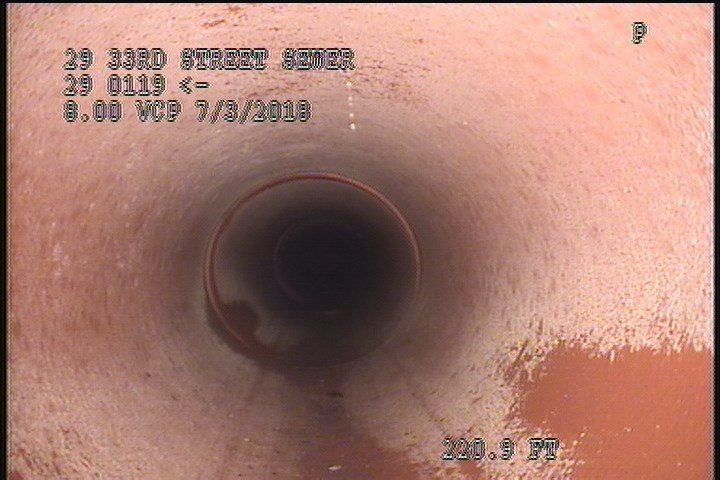

  • General Photograph

    220.9 ft. - General Photograph

All inspections of P23909Work order 0711161

Observations (22)

DistanceCodeObservation
0MWM—
0MGOROACHES @ MH
237.9MGOGREASE THROUGHOUT THE REACH (5%)
0AMH12:10 PM
0MWL—
236.2SSS—
134TFC—
107.3TFOPEN
131.5TFC—
55.9TFC—
237.9AMH12:44 PM
61TBOpen
182.1TFA—
28.7TFC—
233.5TFC—
87.7B—
80TFOpen
220.9MGP—
231.2TFC—
2SSS—
154.9TFA—
4.6TFC—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2018-07-03T11:54:54-07:00
documentation
FRANKLIN, PARAISO, AHUMADA
is_lateral_inspection
false
