Wastewater/Activity/PacpInspection/1.0Aug 1, 2018, 06:33 AM
21 0650_21 0649 _31072018_234630.mp4
- Date
- 07/31/2018
- W/O
- 718061
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00767
- PipeID
- P15803
- Time
- 11:33 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5885
- Sewer Name
- 21 FIRST ST TR, SECT 1A & CONNS TO 1ST ST TR SYSTM
- City
- POMONA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_718061_TV21099_AUG2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Rectangular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 21 0650
- Downstream MH
- 21 0649
- Dir. of Survey
- Downstream
- Length Surveyed
- 340.5 ft.
- Total Length
- 340.5 ft.
- Structural Index
- 3
- Structural Quick
- 3L2L
- Structural Rating
- 335
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 134
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 469
Observation photos (3)

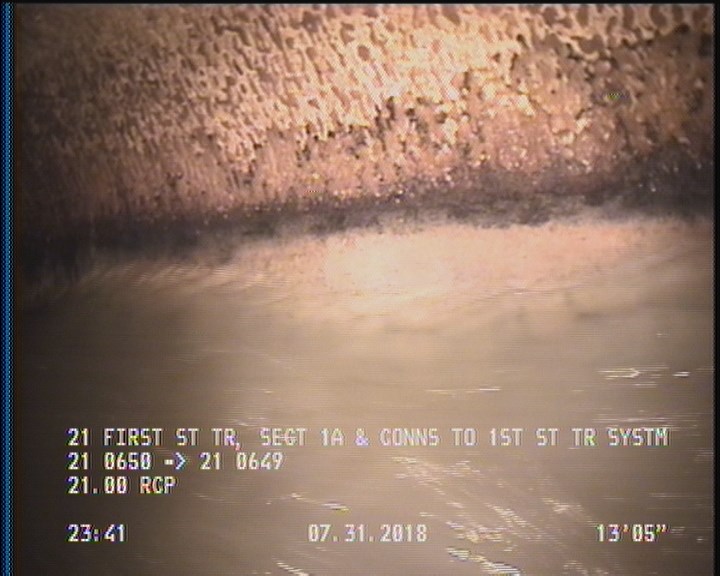

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

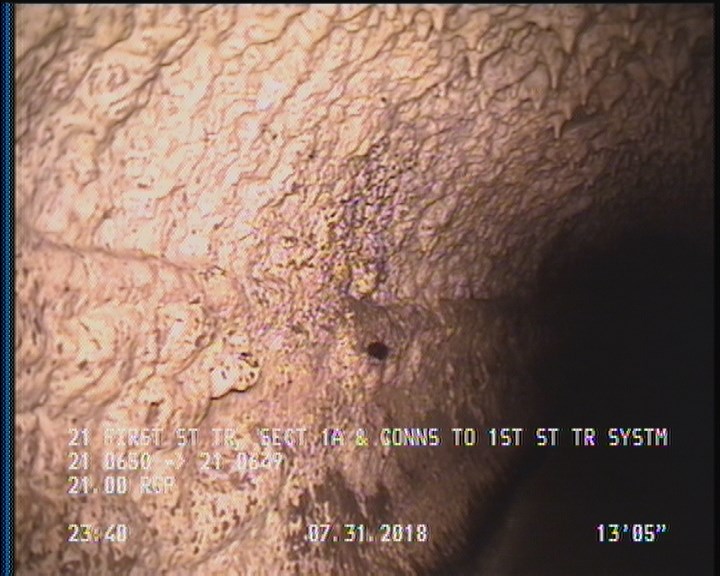

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

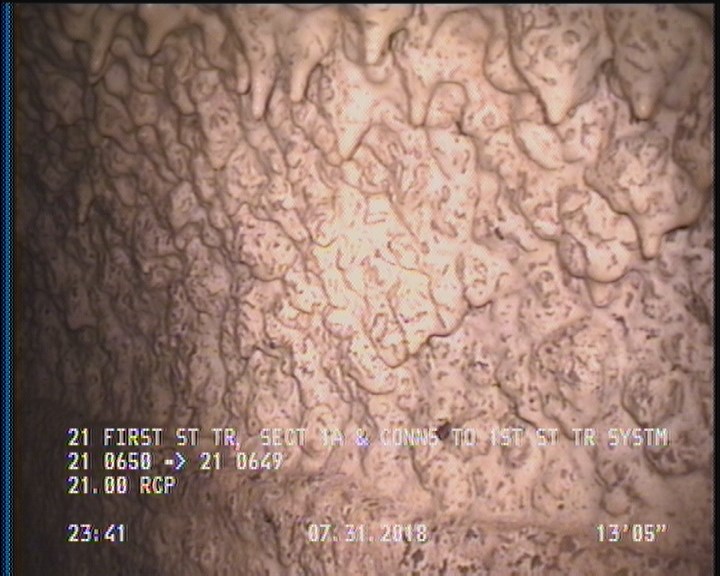

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 21 0650 |
| 2 | DAGS | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 338 | SAP | — |
| 0 | MWM | — |
| 338 | SSS | — |
| 338 | DAGS | — |
| 340.5 | AMH | 21 0649 |
| 340.5 | MGO | COCKROACHES IN MANHOLE |
| 0 | MGO | MAG COATING THROUGHOUT 90% |
| 2 | SSS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
| 2 | SAP | — |
Properties (6)
- additional_info
- SC364753
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-07-31T23:33:52-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
