Wastewater/Activity/PacpInspection/1.0Aug 3, 2018, 05:37 AM
32 1170_32 1169_02082018_225638.mp4
- Date
- 08/02/2018
- W/O
- 717960
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00839
- PipeID
- P19624
- Time
- 10:37 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5890
- Sewer Name
- 32 SAN FERNANDO ROAD TRUNK
- City
- SANTA CLARITA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_717960_TV32039_AUG2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 32 1170
- Downstream MH
- 32 1169
- Dir. of Survey
- Downstream
- Length Surveyed
- 409.2 ft.
- Total Length
- 409.2 ft.
- Structural Index
- 2
- Structural Quick
- 3L2O
- Structural Rating
- 358
- O&M Index
- 2
- O&M Quick
- 2S00
- O&M Rating
- 204
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 562
Observation photos (4)

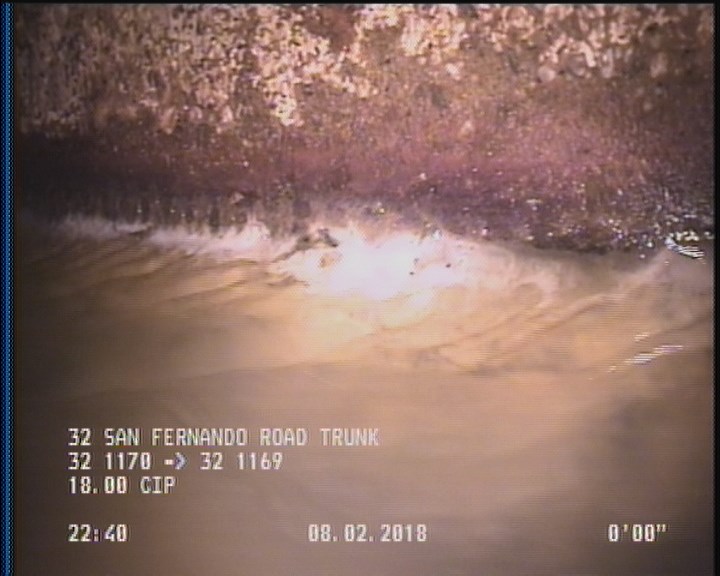

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

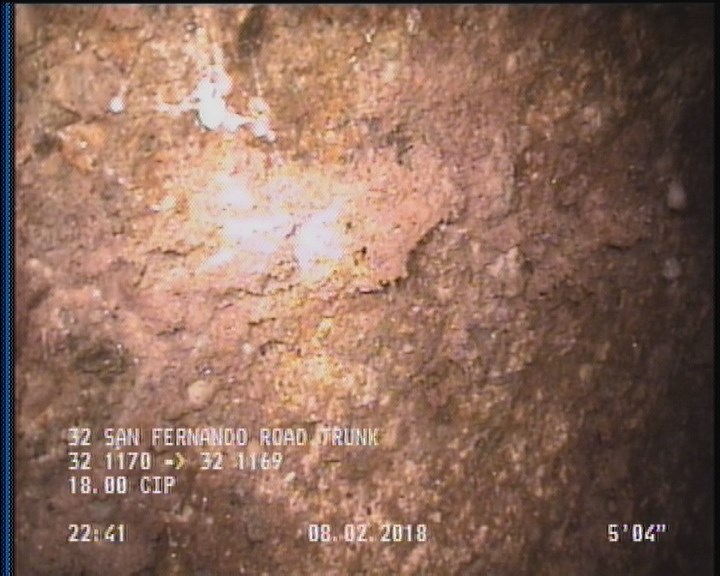

5.3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

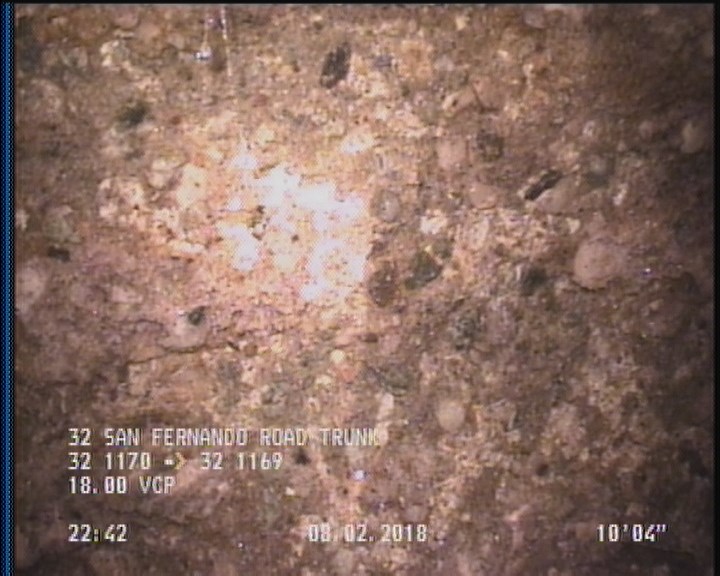

5.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

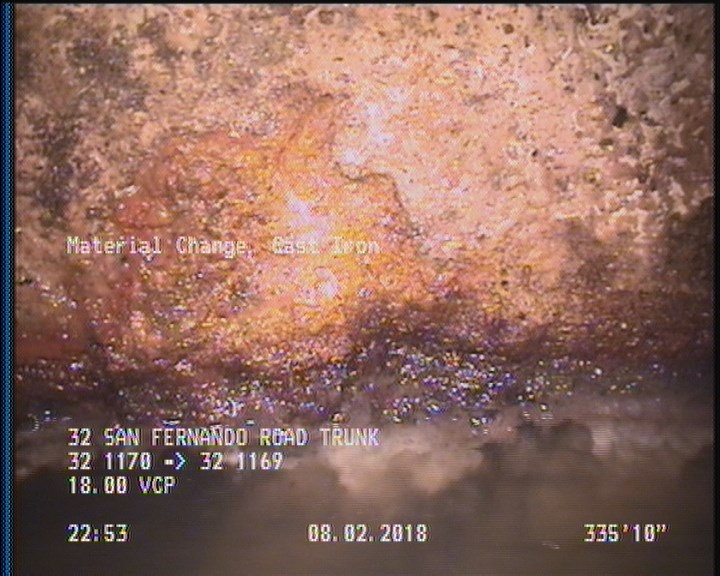

335.8 ft. - Material Change, Cast Iron
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 32 1170 |
| 5.3 | SSS | — |
| 211.6 | TBA | — |
| 5.3 | SAP | — |
| 2 | DAGS | — |
| 407.5 | SSS | — |
| 409.2 | AMH | 32 1169 |
| 0 | MWM | — |
| 335.8 | SAP | — |
| 335.8 | MMC | — |
| 304.7 | DSZ | DEBRIS |
| 407.5 | DSZ | — |
| 0 | MWL | — |
| 215.7 | TFC | — |
| 407.5 | DAGS | — |
Properties (6)
- additional_info
- SC364758
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-08-02T22:37:05-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
