Wastewater/Activity/PacpInspection/1.0Jul 20, 2018, 10:05 AM
05 1814B_05 1814A _20072018_031601.mp4
- Date
- 07/20/2018
- W/O
- 717852
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00466
- PipeID
- P24951
- Time
- 3:05 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5786
- Sewer Name
- 05 JANET LANE TRUNK
- City
- TORRANCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_717852_TV05329_AUG2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 05 1814B
- Downstream MH
- 05 1814A
- Dir. of Survey
- Downstream
- Length Surveyed
- 35.3 ft.
- Total Length
- 35.3 ft.
- Structural Index
- 3
- Structural Quick
- 4135
- Structural Rating
- 19
- O&M Index
- 1
- O&M Quick
- 1200
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 21
Observation photos (4)

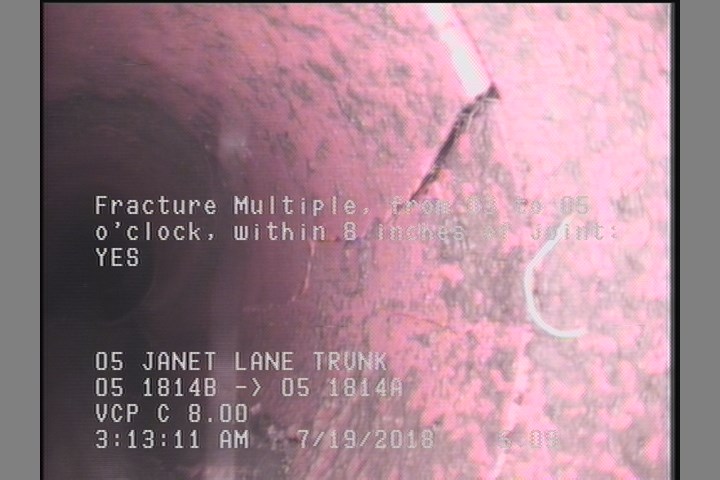

5.1 ft. - Fracture Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES

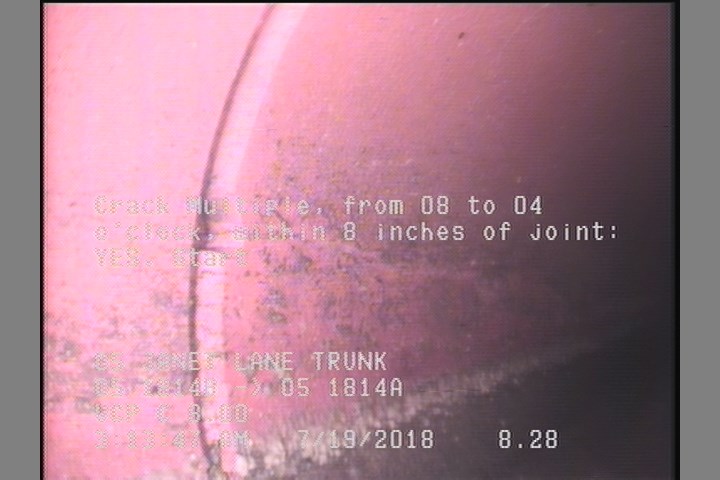

8.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

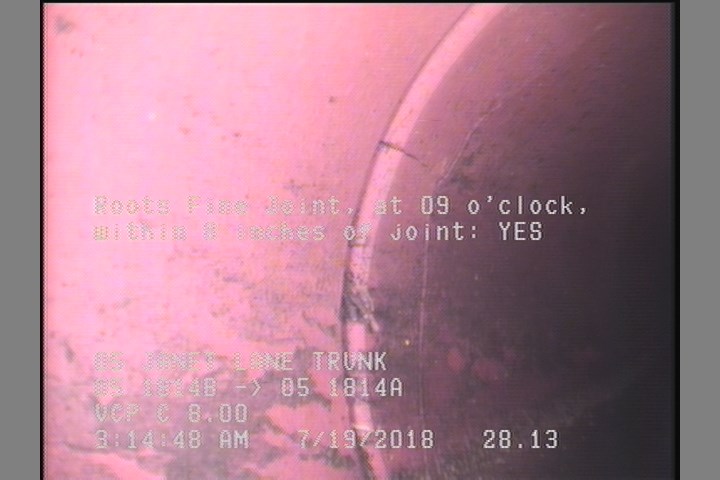

28.1 ft. - Roots Fine Joint, at 09 o'clock, within 8 inches of joint: YES

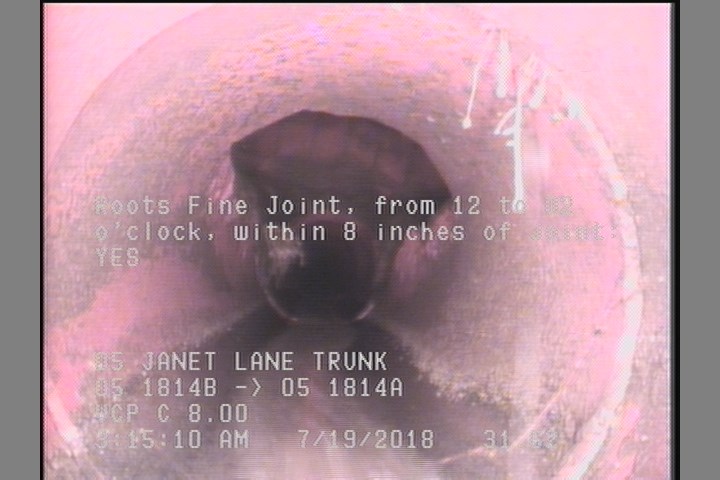

31.6 ft. - Roots Fine Joint, from 12 to 02 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 35.3 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 28.1 | RFJ | — |
| 35.3 | CM | — |
| 35.3 | AMH | 05 1814A |
| 0 | AMH | 05 1814B |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 31.6 | RFJ | — |
| 8.3 | CM | — |
| 5.1 | FM | — |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC359697
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-20T03:05:55-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
