Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 20, 2018, 07:00 AM

  • J 0001_D 0150 _20072018_000919.mp4

Date
07/20/2018
W/O
712432
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00060
PipeID
P11588
Time
12:00 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5784
Sewer Name
J JOINT OUTFALL J - UNIT 2A
City
HARBOR CITY
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
13
Purpose
Routine Assessment
Project
WO_712432_TV08171_JUL2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
57 in.
Width
57 in.
Upstream MH
J 0001
Downstream MH
D 0150
Dir. of Survey
Downstream
Length Surveyed
213.1 ft.
Total Length
213.1 ft.
Structural Index
3
Structural Quick
553G
Structural Rating
148
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
148
Pipe schematic from manhole J 0001 to D 0150
MH: J 0001MH: D 0150downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - J 00010 ft. MWM - Water Mark, 20 %of cross sectional area5.9 ft. MGO - General Observation - MAG COAT5.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start187.9 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start213.1 ft. AMH - Downstream Manhole, Survey Ends - D 0150213.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish213.1 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish213.1 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK213.1 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK

Observation photos (2)

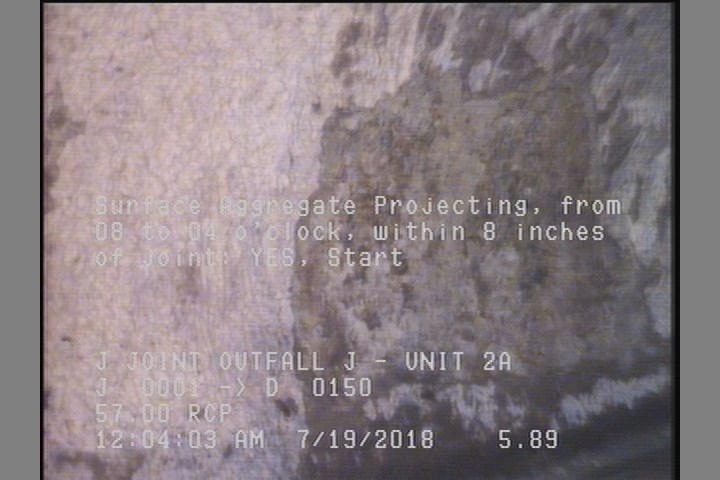

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

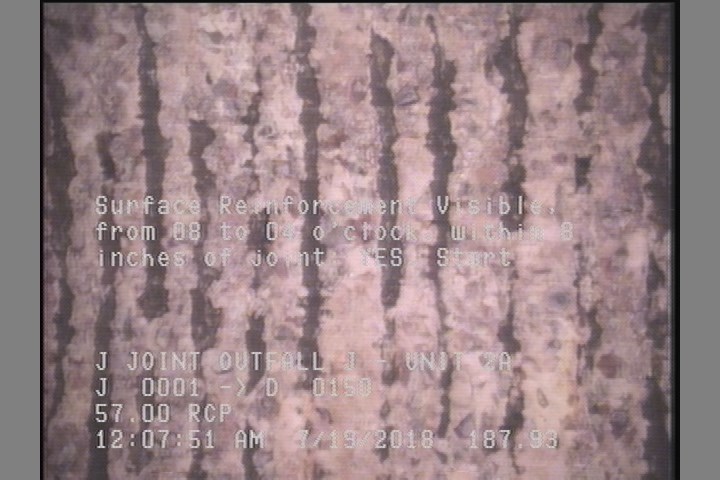

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    187.9 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P11588Work order 712432

Observations (11)

DistanceCodeObservation
213.1AMHD 0150
187.9SRV—
213.1SAP—
213.1SRV—
0MWL—
5.9MGOMAG COAT
213.1MGOCONNECTION AT MH 3 O'CLOCK
0AMHJ 0001
0MWM—
5.9SAP—
213.1MGOCONNECTION AT MH 9 O'CLOCK

Properties (6)

additional_info
SC359695
custom_field_two
2
customer
LACSD
datetime
2018-07-20T00:00:19-07:00
documentation
PROPIPE
is_lateral_inspection
false
