Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 21, 2018, 07:53 AM

  • 29 0528_29 0527 _21062018_011109.mp4

Date
06/21/2018
W/O
706888
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01106
PipeID
P24581
Time
12:53 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5740
Sewer Name
29 19TH STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
04
Purpose
Routine Assessment
Project
WO_706888_TV29054_JUN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0528
Downstream MH
29 0527
Dir. of Survey
Downstream
Length Surveyed
299.1 ft.
Total Length
299.1 ft.
Structural Index
3
Structural Quick
3J00
Structural Rating
171
O&M Index
2
O&M Quick
2J00
O&M Rating
108
Overall Index
3
Overall Quick
—
Overall Rating
279
Pipe schematic from manhole 29 0528 to 29 0527
MH: 29 0528MH: 29 0527downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 29 05287.2 ft. CM - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES11.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"13.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"15.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start31.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start62.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"64.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"65.8 ft. RFB - Roots Fine Barrell, at 01 o'clock, within 8 inches of joint: YES112.2 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"114.8 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"120.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"170.9 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"173 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"218 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 4"263.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"265.6 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"297.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish297.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish299.1 ft. AMH - Downstream Manhole, Survey Ends - 29 0527

Observation photos (4)

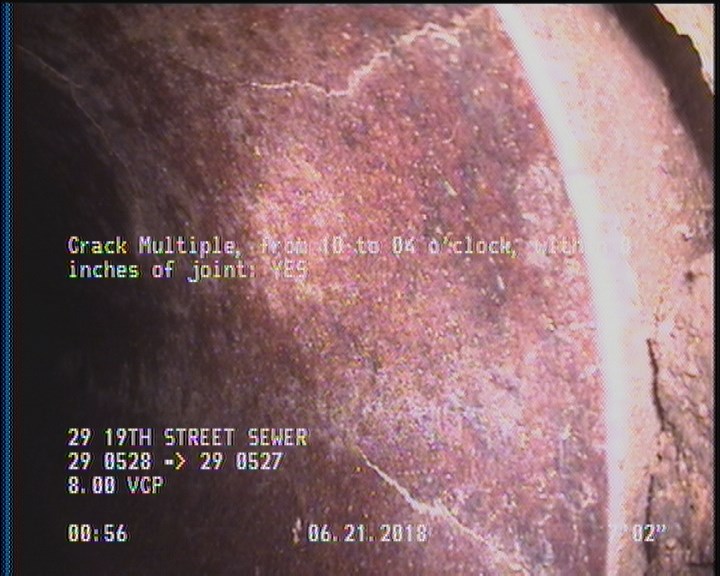

  • Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES

    7.2 ft. - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES

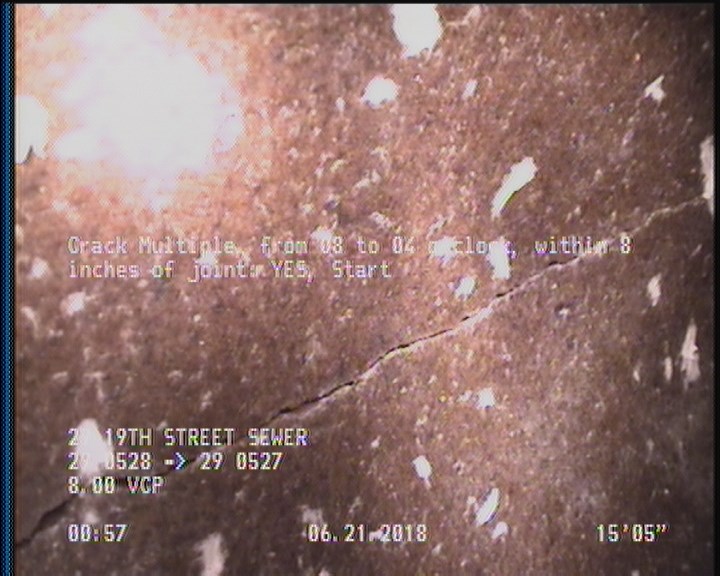

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    15.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

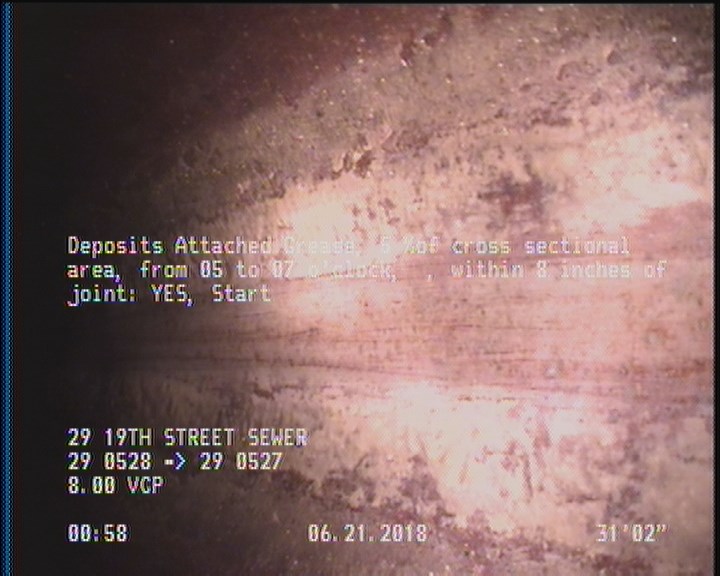

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    31.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

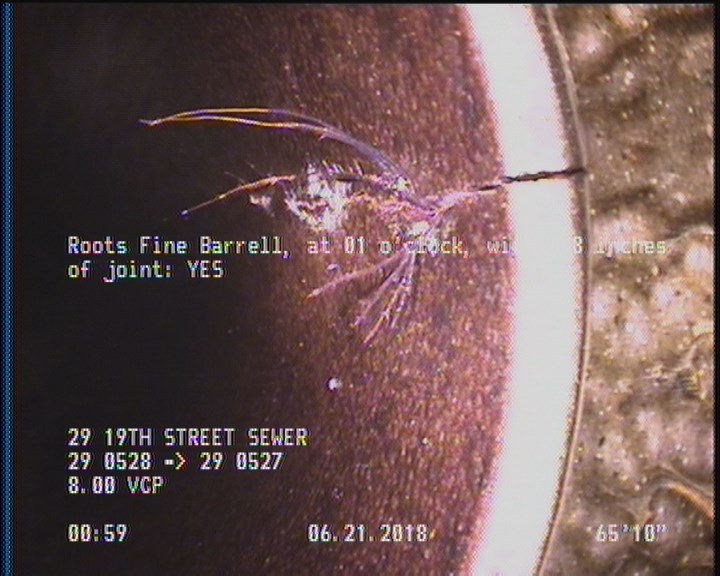

  • Roots Fine Barrell, at 01 o'clock, within 8 inches of joint: YES

    65.8 ft. - Roots Fine Barrell, at 01 o'clock, within 8 inches of joint: YES

All inspections of P24581Work order 706888

Observations (22)

DistanceCodeObservation
173TFA—
112.2TFA—
0MWL—
0MWM—
114.8TFA—
218TFA—
297.6CM—
120.8TFA—
0AMH29 0528
299.1AMH29 0527
65.8RFB—
62.1TFA—
297.6DAGS—
263.2TFA—
13.8TFA—
31.2DAGS—
265.6TFA—
15.5CM—
7.2CM—
64.5TFA—
11.5TF—
170.9TFA—

Properties (6)

additional_info
SC359706
custom_field_two
3
customer
LACSD
datetime
2018-06-21T00:53:07-07:00
documentation
PRO PIPE
is_lateral_inspection
false
