Wastewater/Activity/PacpInspection/1.0Jun 19, 2018, 11:03 AM
B 0884_B 0465 _19062018_040813.mp4
- Date
- 06/19/2018
- W/O
- 706863
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00094
- PipeID
- P08979
- Time
- 4:03 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5735
- Sewer Name
- B JOINT OUTFALL B - UNIT 5D
- City
- PASADENA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_706863_TV16037_JUN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- B 0465
- Downstream MH
- B 0884
- Dir. of Survey
- Upstream
- Length Surveyed
- 34.9 ft.
- Total Length
- 34.9 ft.
- Structural Index
- 3
- Structural Quick
- 3626
- Structural Rating
- 30
- O&M Index
- 2
- O&M Quick
- 4126
- O&M Rating
- 16
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 46
Observation photos (3)

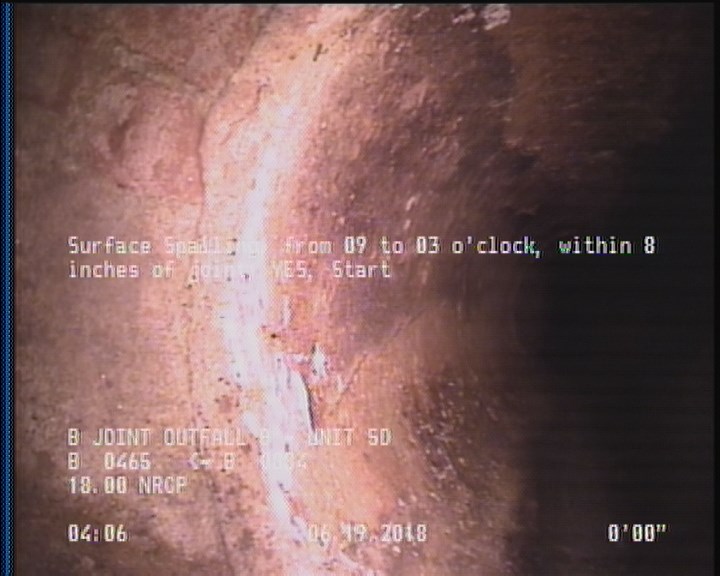

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

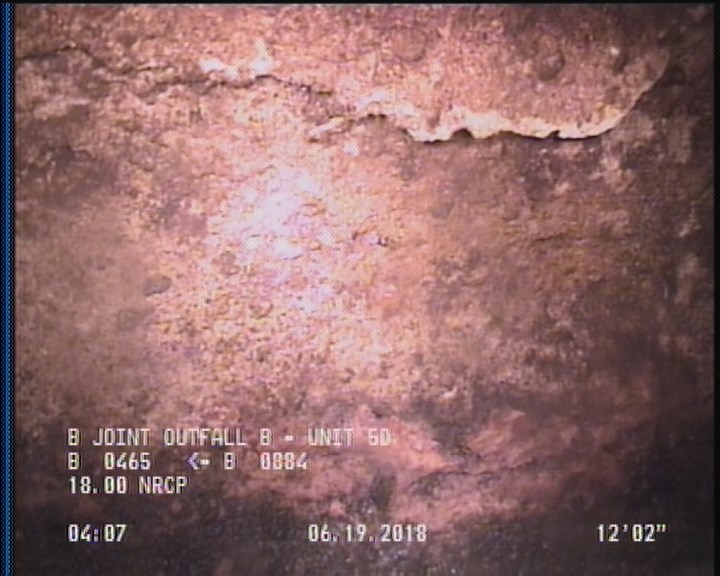

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

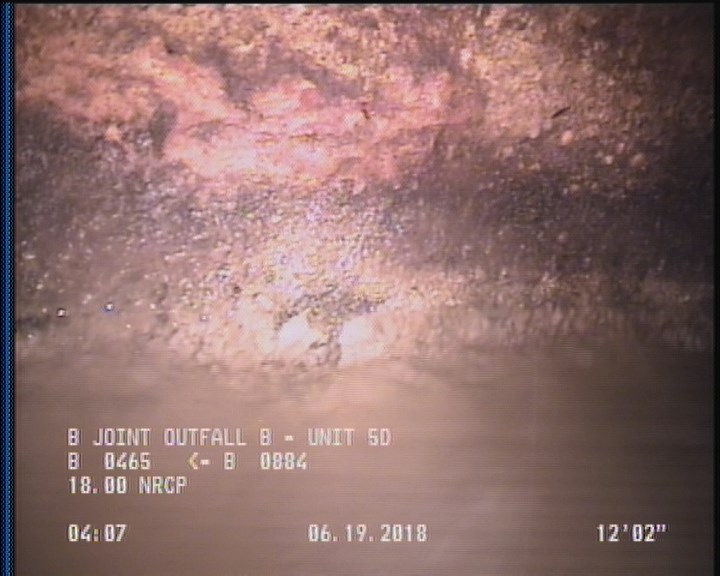

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 33.4 | DAGS | — |
| 0 | MWL | — |
| 34.9 | AMH | B 0884 |
| 0 | MWM | — |
| 0 | AMH | B 0465 |
| 33.4 | SSS | — |
| 2 | SSS | — |
| 2 | SAP | — |
| 33.4 | SAP | — |
| 2 | DAGS | — |
Properties (6)
- additional_info
- SC359701
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-06-19T04:03:13-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
