Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 12, 2018, 06:52 AM

  • G 0212_G 0211_12072018_000747.mp4

Date
07/11/2018
W/O
711942
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01180
PipeID
P01116
Time
11:52 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5773
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
SOUTH GATE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
WO_711942_TV01122_JUL2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
G 0212
Downstream MH
G 0211
Dir. of Survey
Downstream
Length Surveyed
337.7 ft.
Total Length
337.7 ft.
Structural Index
3
Structural Quick
3J22
Structural Rating
169
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
169
Pipe schematic from manhole G 0212 to G 0211
MH: G 0212MH: G 0211downstream0 ft. AMH - Upstream Manhole, Survey Begins - G 02120 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area3.1 ft. CM - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES10.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES18.3 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES26.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start66.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"115.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"160.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish166.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"200.8 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start215.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"264.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"307.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"337.7 ft. AMH - Downstream Manhole, Survey Ends - G 0211337.7 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish337.7 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK337.7 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK

Observation photos (5)

  • Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

    3.1 ft. - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    10.8 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    18.3 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    26.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

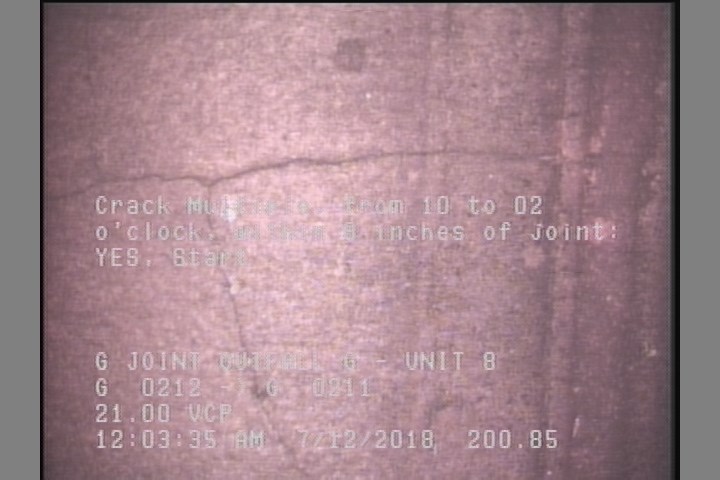

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    200.8 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P01116Work order 711942

Observations (20)

DistanceCodeObservation
337.7AMHG 0211
337.7CM—
307.8TFC—
337.7MGOCONNECTION AT MH 3 O'CLOCK
10.8CL—
264.6TFC—
3.1CM—
0AMHG 0212
26.3CM—
0MGOCONNECTION AT MH 3 O'CLOCK
337.7MGOCONNECTION AT MH 9 O'CLOCK
215.4TFC—
18.3CL—
0MWM—
160.6CM—
166.7TFC—
0MWL—
115.5TFC—
200.8CM—
66.6TF—

Properties (6)

additional_info
SC359682
custom_field_two
3
customer
LACSD
datetime
2018-07-11T23:52:41-07:00
documentation
PROPIPE
is_lateral_inspection
false
