Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 23, 2018, 07:37 AM

  • Section#1_G 0161_G 0160__7232018__ I0037.mp4

Date
07/23/2018
W/O
0711987
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01180
PipeID
P00842
Time
12:37 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0038
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Capital Improvement Program Assesment
Project
20180723MDM_JOINT_OUTFALL_G_UNIT_8
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
G 0161
Downstream MH
G 0160
Dir. of Survey
Downstream
Length Surveyed
445.7 ft.
Total Length
445.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2P00
O&M Rating
170
Overall Index
2
Overall Quick
—
Overall Rating
170
Pipe schematic from manhole G 0161 to G 0160
MH: G 0161MH: G 0160downstream0 ft. MGO - General Observation - MH CONN 3:00 ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 1:15AM0 ft. MGO - General Observation - MH CONN 9:00 ACTIVE0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. MGO - General Observation - MAG COAT 80% START 8:00 TO 4:002 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG & GREASE COAT START3 ft. DAGS - Deposits Attached Grease, 2 %of cross sectional area, from 07 to 08 o'clock, , within 8 inches of joint: NO23.5 ft. MGO - General Observation - TILES 100% IN PLACE25.7 ft. DAGS - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start35 ft. MGO - General Observation - MAG COAT 100% START199.7 ft. MGO - General Observation - TILES IN PLACE UNDER MAG COAT201.4 ft. MGO - General Observation - MAG COAT 98% START232.9 ft. MGO - General Observation - 100% MAG COAT START445.1 ft. MGO - General Observation - MAG COAT 100% FINISH445.1 ft. MGO - General Observation - MH CONN 9:00 ACTIVE445.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish445.1 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG & GREASE COAT FINISH445.7 ft. AMH - Downstream Manhole, Survey Ends - 1:50AM

Observation photos (8)

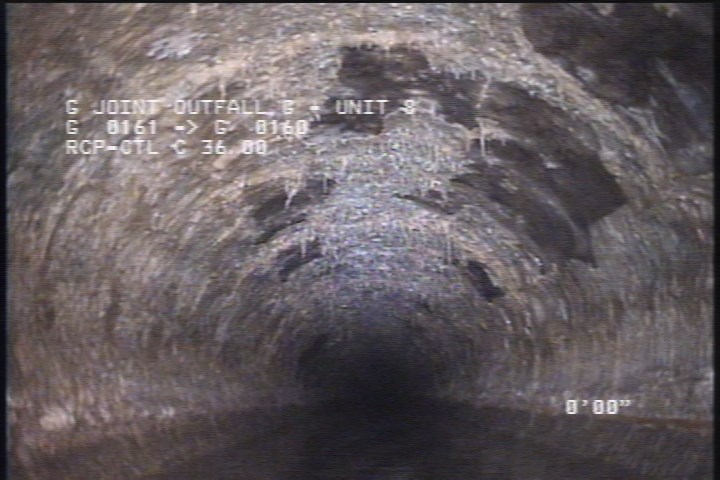

  • General Observation - MAG COAT 80% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 80% START 8:00 TO 4:00

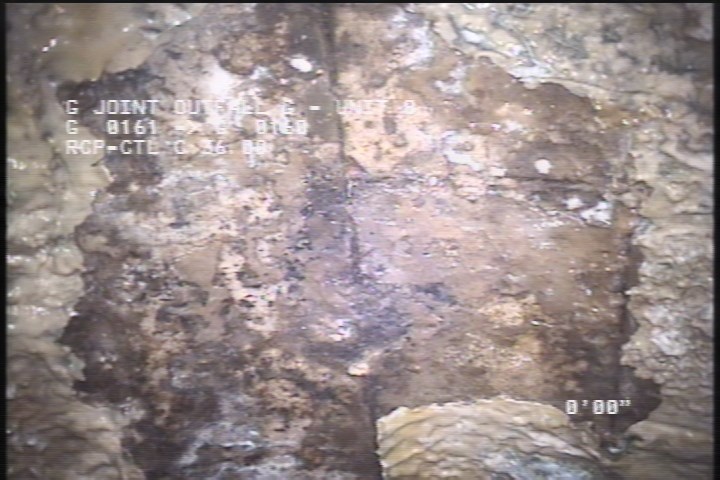

  • General Observation - TILES 100% IN PLACE UNDER MAG & GREASE COAT START

    2 ft. - General Observation - TILES 100% IN PLACE UNDER MAG & GREASE COAT START

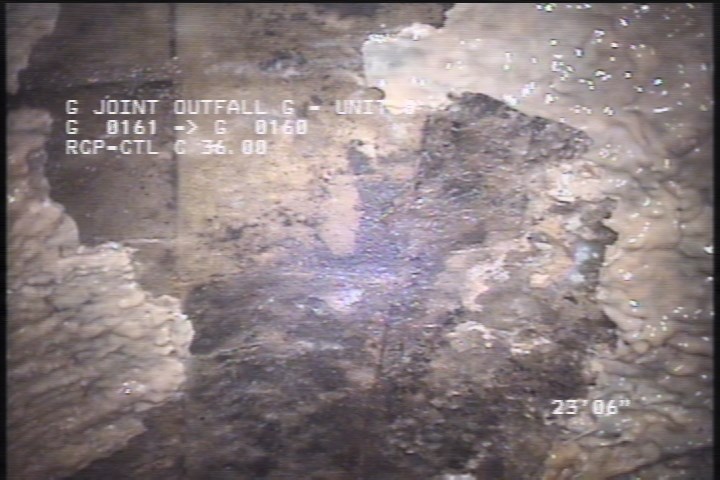

  • General Observation - TILES 100% IN PLACE

    23.5 ft. - General Observation - TILES 100% IN PLACE

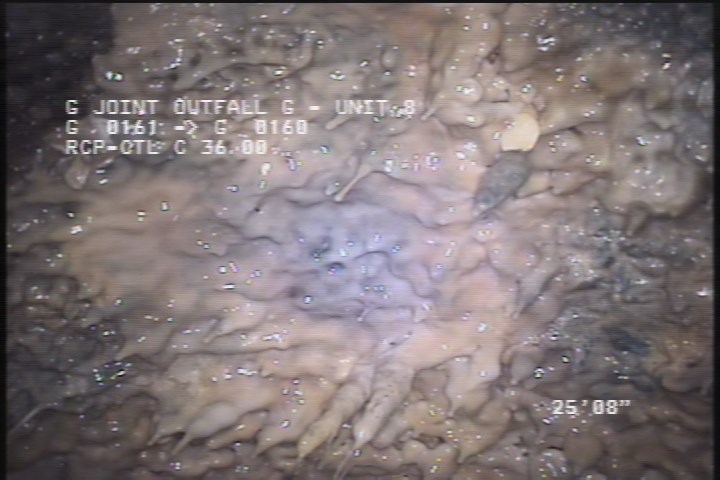

  • Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    25.7 ft. - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

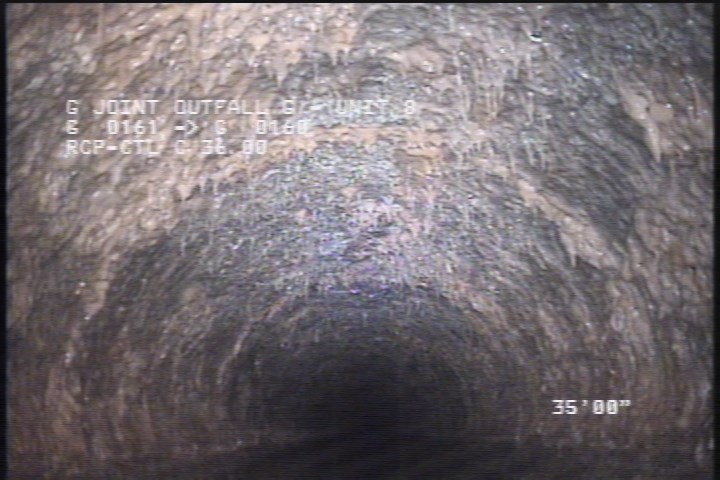

  • General Observation - MAG COAT 100% START

    35 ft. - General Observation - MAG COAT 100% START

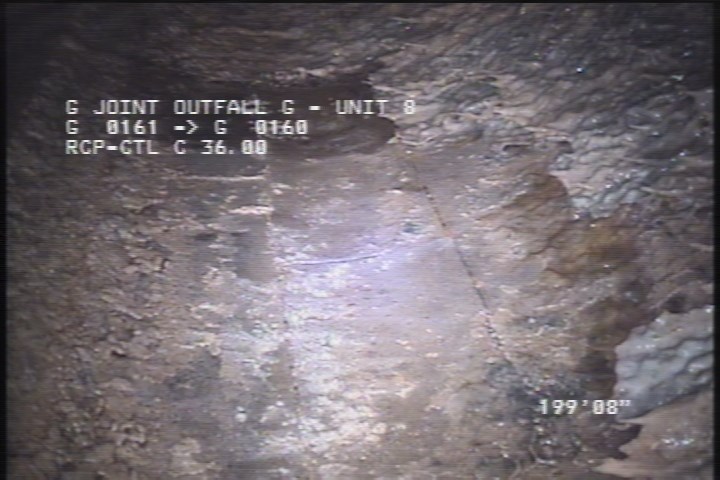

  • General Observation - TILES IN PLACE UNDER MAG COAT

    199.7 ft. - General Observation - TILES IN PLACE UNDER MAG COAT

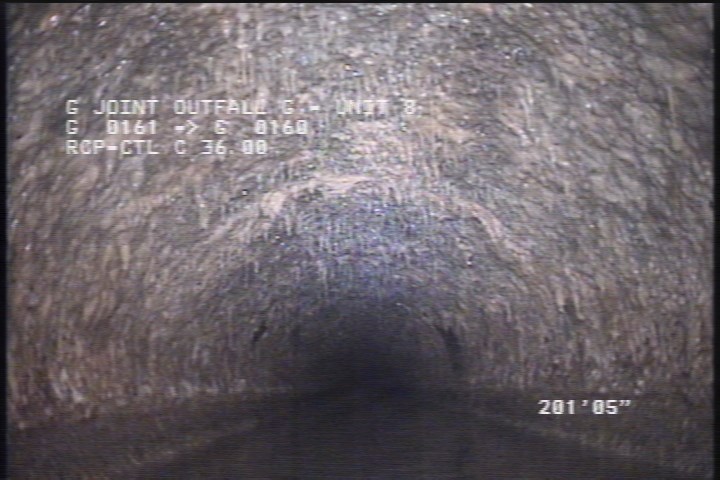

  • General Observation - MAG COAT 98% START

    201.4 ft. - General Observation - MAG COAT 98% START

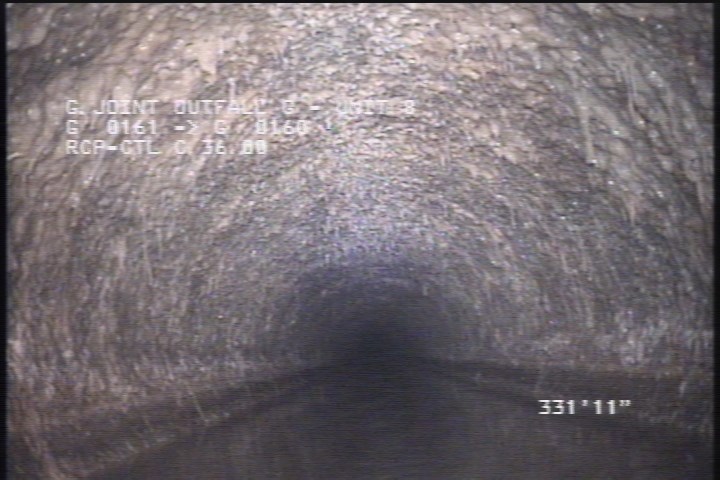

  • General Observation - 100% MAG COAT START

    232.9 ft. - General Observation - 100% MAG COAT START

All inspections of P00842Work order 0711987

Observations (19)

DistanceCodeObservation
35MGOMAG COAT 100% START
2MGOMAG COAT 80% START 8:00 TO 4:00
0MGOMH CONN 3:00 ACTIVE
445.1MGOMAG COAT 100% FINISH
23.5MGOTILES 100% IN PLACE
0AMH1:15AM
232.9MGO100% MAG COAT START
201.4MGOMAG COAT 98% START
25.7DAGS—
0MGOMH CONN 9:00 ACTIVE
445.7AMH1:50AM
199.7MGOTILES IN PLACE UNDER MAG COAT
3DAGS—
445.1MGOMH CONN 9:00 ACTIVE
0MWL—
445.1DAGS—
0MWM—
445.1MGOTILES 100% IN PLACE UNDER MAG & GREASE COAT FINISH
2MGOTILES 100% IN PLACE UNDER MAG & GREASE COAT START

Properties (6)

custom_field_three
TILES 100% IN PLACE UNDER MAG & GREASE COAT
custom_field_two
3
customer
LACSD
datetime
2018-07-23T00:37:52-07:00
documentation
MARTIN,REVELES,OLIVER 111,YOUNG
is_lateral_inspection
false
