Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 19, 2018, 09:13 AM

  • G 0157_G 0156_7192018_022159.mp4

Date
07/19/2018
W/O
0711987
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01180
PipeID
P00838
Time
2:13 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0936
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Capital Improvement Program Assesment
Project
20180719MDM_JOINT_OUTFALL_G_UNIT_8
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
G 0157
Downstream MH
G 0156
Dir. of Survey
Downstream
Length Surveyed
178.6 ft.
Total Length
178.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole G 0157 to G 0156
MH: G 0157MH: G 0156downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:25AM2 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG & GREASE COAT2 ft. MGO - General Observation - MAG COAT 100% START 8:00 TO 4:002 ft. DAGS - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start14.8 ft. MGO - General Observation - TILES 100% IN PLACE24.4 ft. MGO - General Observation - MAG COAT 95% IN PLACE121.7 ft. MGO - General Observation - MAG COAT 100%178.3 ft. MGO - General Observation - MAG COAT 100% FINISH178.3 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG & GREASE COAT178.3 ft. DAGS - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish178.6 ft. AMH - Downstream Manhole, Survey Ends - 3:05AM

Observation photos (6)

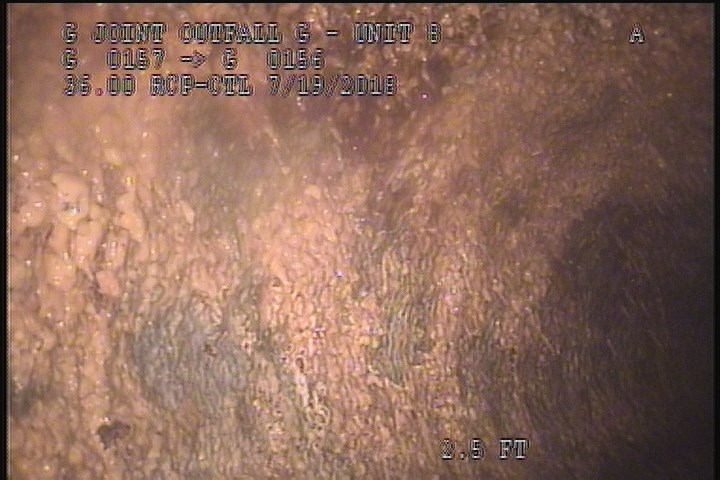

  • General Observation - TILES 100% IN PLACE UNDER MAG & GREASE COAT

    2 ft. - General Observation - TILES 100% IN PLACE UNDER MAG & GREASE COAT

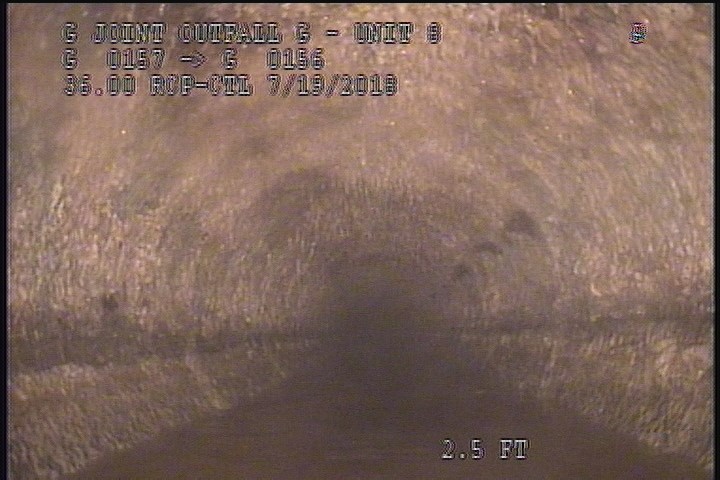

  • General Observation - MAG COAT 100% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 100% START 8:00 TO 4:00

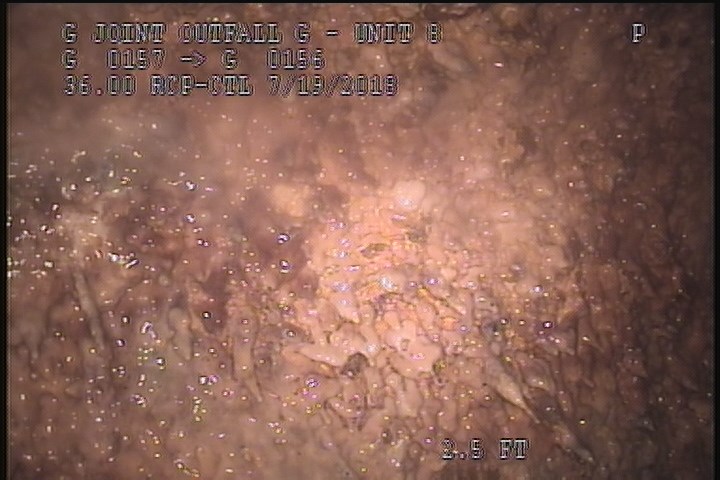

  • Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

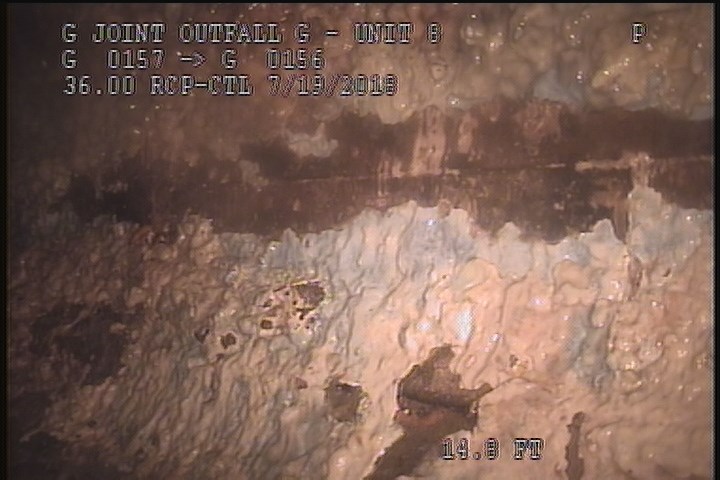

  • General Observation - TILES 100% IN PLACE

    14.8 ft. - General Observation - TILES 100% IN PLACE

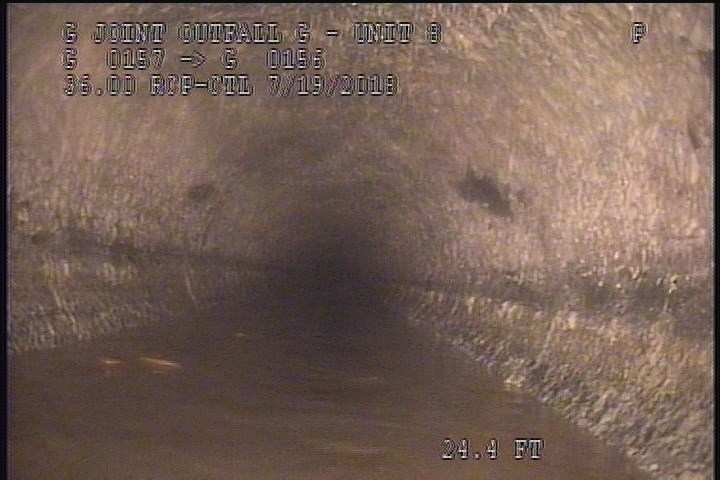

  • General Observation - MAG COAT 95% IN PLACE

    24.4 ft. - General Observation - MAG COAT 95% IN PLACE

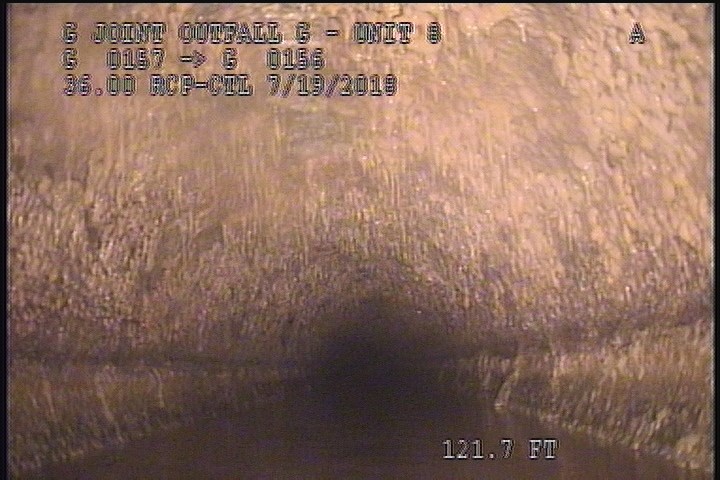

  • General Observation - MAG COAT 100%

    121.7 ft. - General Observation - MAG COAT 100%

All inspections of P00838Work order 0711987

Observations (13)

DistanceCodeObservation
178.3MGOMAG COAT 100% FINISH
0MWM—
0MWL—
2MGOTILES 100% IN PLACE UNDER MAG & GREASE COAT
121.7MGOMAG COAT 100%
178.3MGOTILES 100% IN PLACE UNDER MAG & GREASE COAT
178.3DAGS—
24.4MGOMAG COAT 95% IN PLACE
0AMH2:25AM
14.8MGOTILES 100% IN PLACE
2MGOMAG COAT 100% START 8:00 TO 4:00
178.6AMH3:05AM
2DAGS—

Properties (6)

custom_field_three
TILES 100% UNDER MAG & GREASE COAT
custom_field_two
3
customer
LACSD
datetime
2018-07-19T02:13:04-07:00
documentation
MARTIN,REVELES,YOUNG
is_lateral_inspection
false
