Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 19, 2018, 08:30 AM

  • G 0158_G 0157_7192018_014808.mp4

Date
07/19/2018
W/O
0711987
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01180
PipeID
P00839
Time
1:30 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0936
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Capital Improvement Program Assesment
Project
20180719MDM_JOINT_OUTFALL_G_UNIT_8
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
G 0158
Downstream MH
G 0157
Dir. of Survey
Downstream
Length Surveyed
321.9 ft.
Total Length
321.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole G 0158 to G 0157
MH: G 0158MH: G 0157downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:40AM0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start2 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG COAT & GREASE COAT2 ft. MGO - General Observation - MAG COAT 100% START 8:00 TO 4:0072.5 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - ROCKS201.4 ft. MGO - General Observation - 100% MAG COAT321.5 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish - ROCKS321.5 ft. MGO - General Observation - MAG COAT 100% FINISH321.5 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG & GREASE COAT321.5 ft. DAGS - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish321.9 ft. AMH - Downstream Manhole, Survey Ends - 2:10AM

Observation photos (4)

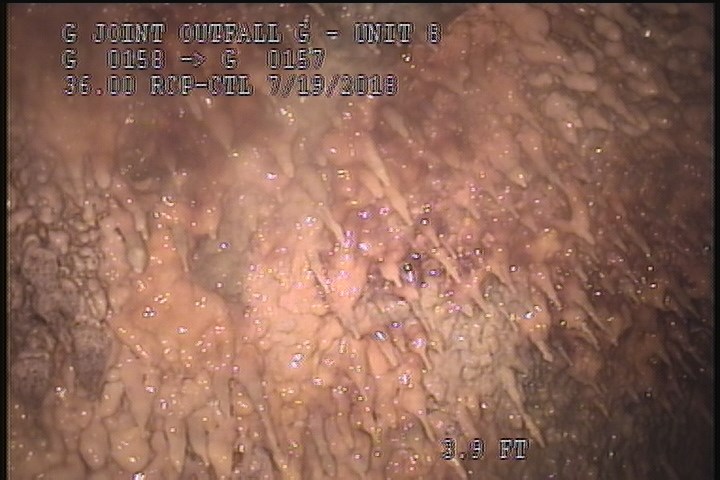

  • Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

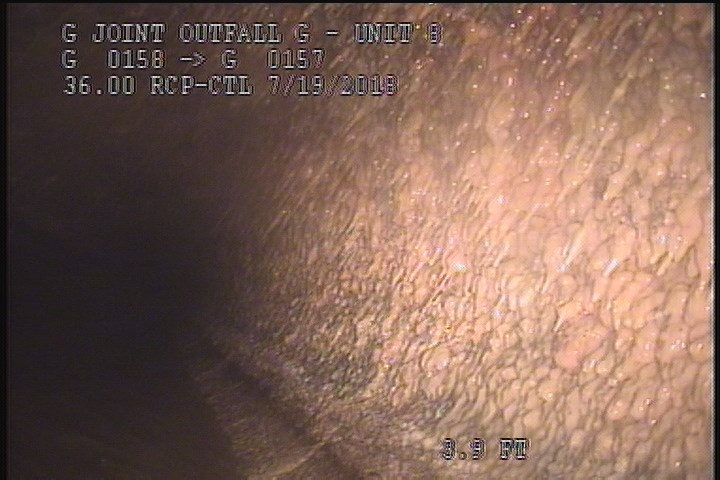

  • General Observation - TILES 100% IN PLACE UNDER MAG COAT & GREASE COAT

    2 ft. - General Observation - TILES 100% IN PLACE UNDER MAG COAT & GREASE COAT

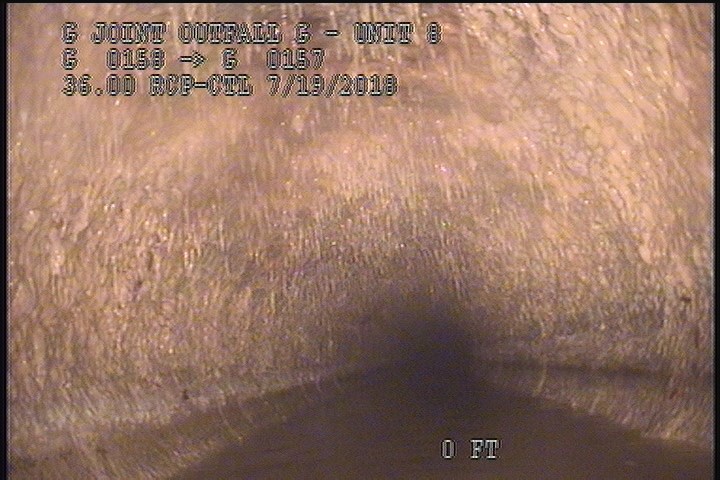

  • General Observation - MAG COAT 100% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 100% START 8:00 TO 4:00

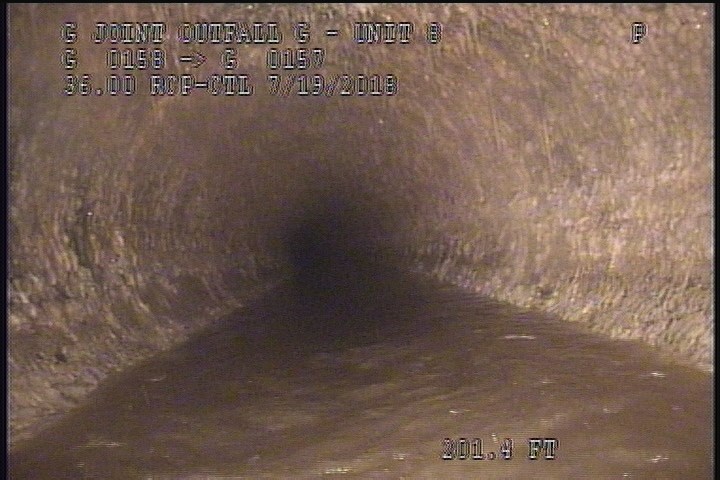

  • General Observation - 100% MAG COAT

    201.4 ft. - General Observation - 100% MAG COAT

All inspections of P00839Work order 0711987

Observations (13)

DistanceCodeObservation
0MWM—
321.5DSZROCKS
0AMH1:40AM
0MWL—
2DAGS—
321.5MGOMAG COAT 100% FINISH
321.5MGOTILES 100% IN PLACE UNDER MAG & GREASE COAT
321.5DAGS—
72.5DSZROCKS
321.9AMH2:10AM
2MGOTILES 100% IN PLACE UNDER MAG COAT & GREASE COAT
201.4MGO100% MAG COAT
2MGOMAG COAT 100% START 8:00 TO 4:00

Properties (6)

custom_field_three
TILES 100% UNDER MAG & GREASE COAT
custom_field_two
3
customer
LACSD
datetime
2018-07-19T01:30:59-07:00
documentation
MARTIN,REVELES,YOUNG
is_lateral_inspection
false
