Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 12, 2018, 11:16 AM

  • 01 0090_01 0089_12032018_042802.mp4

Date
03/12/2018
W/O
691313
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00209
PipeID
P00759
Time
4:16 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5480
Sewer Name
01 HOOPER AVENUE-COMPTON CREEK TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
06
Purpose
Routine Assessment
Project
WO_691313_TV01255_MAR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
01 0090
Downstream MH
01 0089
Dir. of Survey
Downstream
Length Surveyed
184.7 ft.
Total Length
184.7 ft.
Structural Index
3
Structural Quick
3F00
Structural Rating
108
O&M Index
2
O&M Quick
2F00
O&M Rating
72
Overall Index
3
Overall Quick
—
Overall Rating
180
Pipe schematic from manhole 01 0090 to 01 0089
MH: 01 0090MH: 01 0089downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 00900 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 AND 9 O'CLOCK0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start88.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"112.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"142.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"183.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE183.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish183.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish184.7 ft. AMH - Downstream Manhole, Survey Ends - 01 0089

Observation photos (2)

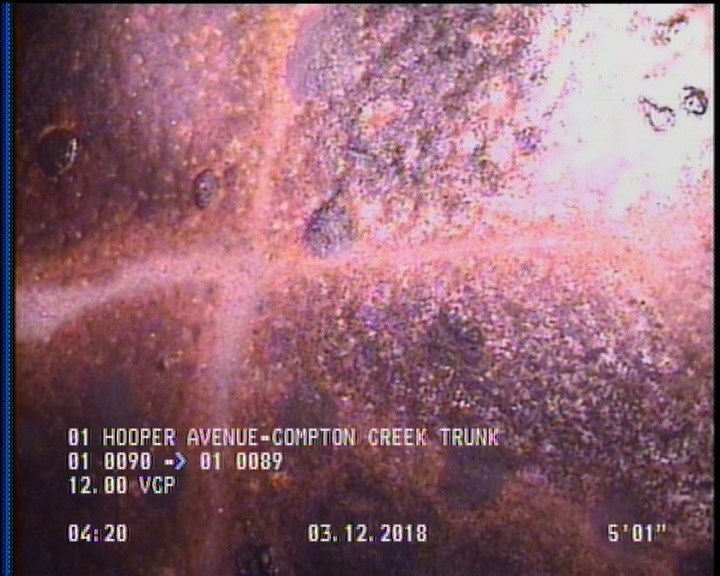

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

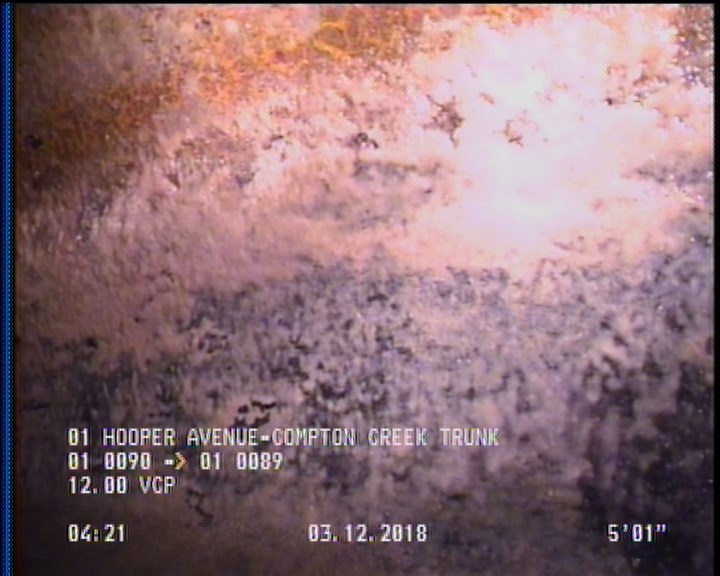

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P00759Work order 691313

Observations (13)

DistanceCodeObservation
112.4TFC—
0AMH01 0090
0MGOACTIVE CONNECTION AT MH 3 AND 9 O'CLOCK
0MWM—
142.7TF—
183.4MGOCOCKROACHES IN MANHOLE
183.4CM—
2CM—
0MWL—
88.5TF—
2DAGS—
183.4DAGS—
184.7AMH01 0089

Properties (6)

additional_info
SC358486
custom_field_two
3
customer
LACSD
datetime
2018-03-12T04:16:24-07:00
documentation
PRO PIPE
is_lateral_inspection
false
