Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 3, 2018, 12:08 PM

  • 08 0546_08 0455_432018_051638.mp4

Date
04/03/2018
W/O
0699098
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00021
PipeID
P00608
Time
5:08 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0800
Sewer Name
08 VICTORIA STREET TRUNK
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
02
Purpose
Capital Improvement Program Assesment
Project
20180403MDM_VICTORIA_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
08 0546
Downstream MH
08 0545
Dir. of Survey
Downstream
Length Surveyed
274.7 ft.
Total Length
274.7 ft.
Structural Index
3
Structural Quick
5141
Structural Rating
39
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
39
Pipe schematic from manhole 08 0546 to 08 0545
MH: 08 0546MH: 08 0545downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:15AM0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area8 ft. MGO - General Observation - 10" VCP23 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SLIGHT23 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - SLIGHT23.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open39.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE76 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SL80.1 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - H108.4 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SL111.5 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open112.7 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H128.7 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT128.7 ft. B - Broken, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT CIRCUM169.6 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - SL197.8 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - H209.9 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H209.9 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL238.5 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL270.7 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - H274.4 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. OPEN274.4 ft. MGO - General Observation - MH MAY HAVE SURCHARGED IN PAST274.7 ft. AMH - Downstream Manhole, Survey Ends - 5:45AM

Observation photos (4)

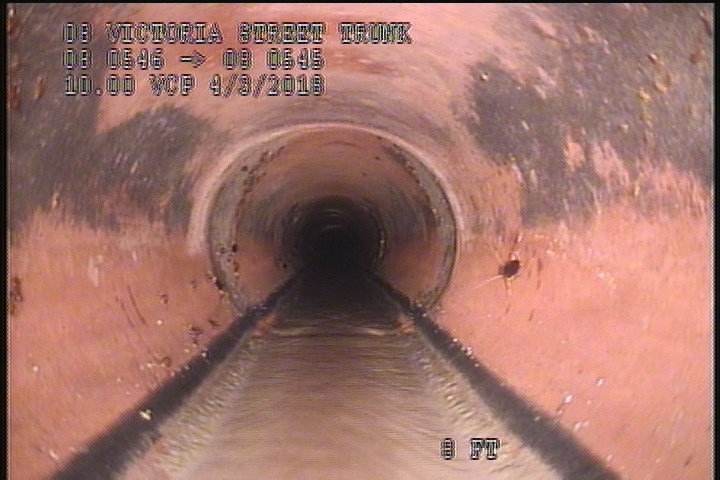

  • General Observation - 10" VCP

    8 ft. - General Observation - 10" VCP

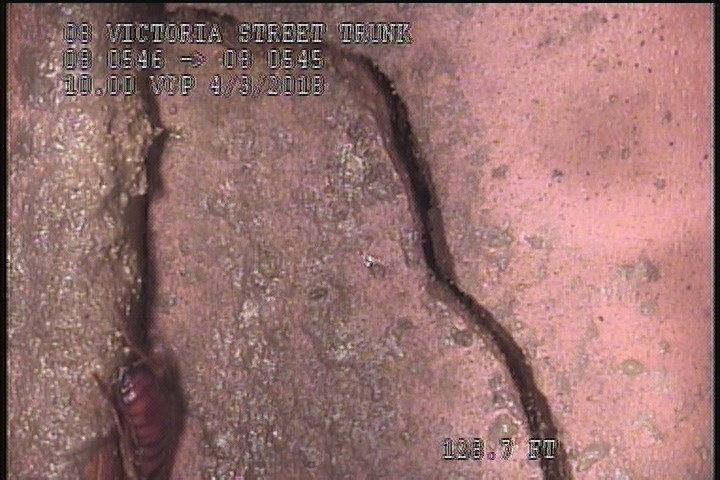

  • Broken, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT CIRCUM

    128.7 ft. - Broken, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT CIRCUM

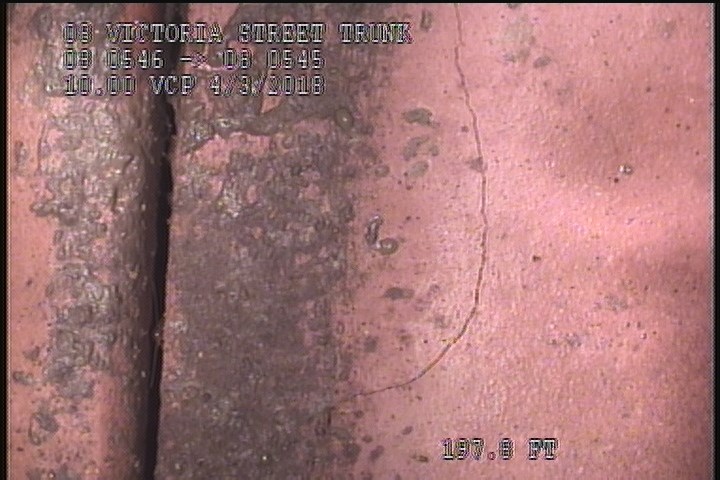

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - H

    197.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - H

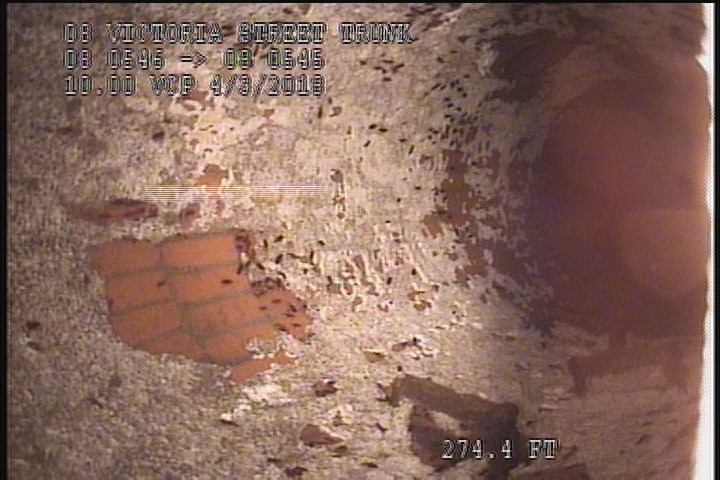

  • General Observation - MH MAY HAVE SURCHARGED IN PAST

    274.4 ft. - General Observation - MH MAY HAVE SURCHARGED IN PAST

All inspections of P00608Work order 0699098

Observations (24)

DistanceCodeObservation
274.4MGOConn. @ Mh, 9 O' Clock. OPEN
270.7FCH
0AMH5:15AM
274.4MGOMH MAY HAVE SURCHARGED IN PAST
0MWL—
39.6FLHAIRLINE
274.7AMH5:45AM
112.7FCH
209.9FCH
209.9FCSL
111.5TBOpen
23.9TFOpen
0MWM—
169.6FLSL
23FCSLIGHT
80.1FCH
128.7FCSLIGHT
197.8FMH
23FLSLIGHT
8MGO10" VCP
76FLSL
108.4FCSL
128.7BSLIGHT CIRCUM
238.5FCSL

Properties (6)

custom_field_three
BROKEN PIPE SLIGHT CIRCUM FRACTURE
custom_field_two
2
customer
LACSD
datetime
2018-04-03T05:08:18-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
