Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 3, 2018, 11:17 AM

  • 08 0547_08 0546_432018_043023.mp4

Date
04/03/2018
W/O
0699100
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00021
PipeID
P00609
Time
4:17 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0800
Sewer Name
08 VICTORIA STREET TRUNK
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
02
Purpose
Capital Improvement Program Assesment
Project
20180403MDM_VICTORIA_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
08 0546
Downstream MH
08 0547
Dir. of Survey
Upstream
Length Surveyed
279.9 ft.
Total Length
279.9 ft.
Structural Index
2
Structural Quick
312C
Structural Rating
43
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
45
Pipe schematic from manhole 08 0546 to 08 0547
MH: 08 0546MH: 08 0547upstream0 ft. AMH - Downstream Manhole, Survey Ends - 5:00AM0.3 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0.3 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active2.6 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - ROCK22.8 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - SL33.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open39.1 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL47 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H50.9 ft. FC - Fracture Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES - SL59.2 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H71.2 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL71.2 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H83.3 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL83.3 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL91.5 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - SL107.7 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SLIGHT124 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - H132 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - SL135.5 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H144.2 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H152.2 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL159.7 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - SL168.4 ft. MGO - General Observation - 10" VCP176.3 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H200.6 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL220.7 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - HAIRLINE245 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHHT279.9 ft. MWL - Water Level, 5 %of cross sectional area279.9 ft. MWM - Water Mark, 20 %of cross sectional area279.9 ft. AMH - Downstream Manhole, Survey Begins - 4:25AM

Observation photos (2)

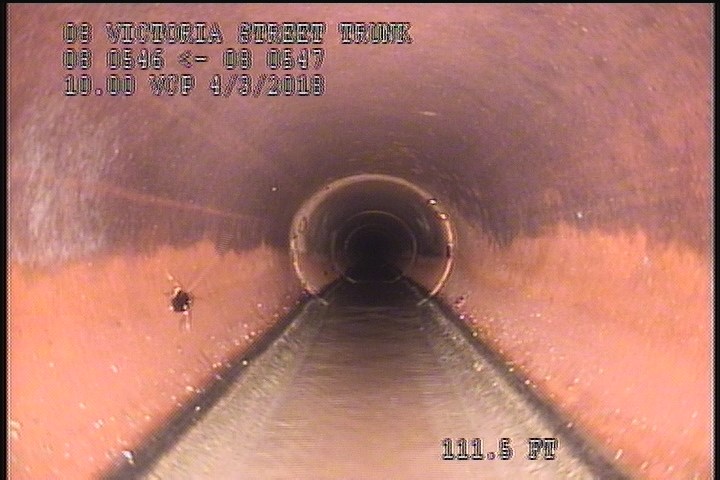

  • General Observation - 10" VCP

    111.5 ft. - General Observation - 10" VCP

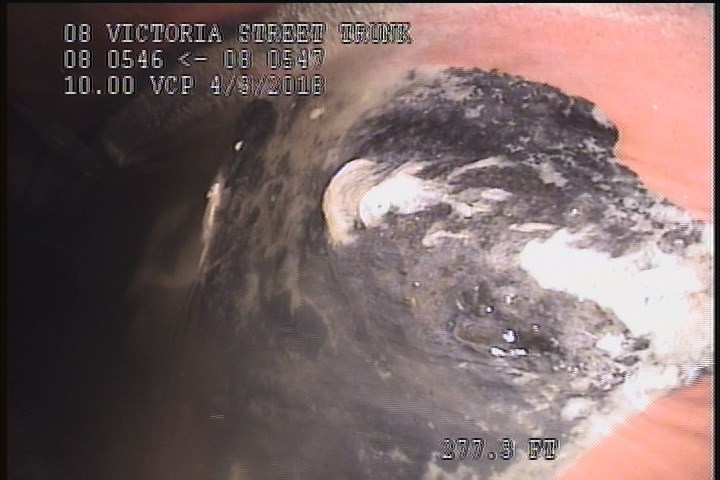

  • Deposits Settled Other, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - ROCK

    277.3 ft. - Deposits Settled Other, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - ROCK

All inspections of P00609Work order 0699100

Observations (30)

DistanceCodeObservation
0MWL—
246.7TFOpen
79.3FCSL
229FCSL
127.7FCSL
111.5MGO10" VCP
147.9FCSL
172.2FCSLIGHT
232.9FLH
240.8FCSL
208.7FCSL
220.7FCH
257.1FCSL
103.6FCH
155.9FCH
279.9AMH5:00AM
279.6MGOConn. @ Mh, 9 O' Clock. Active
0MWM—
279.6MGOConn. @ Mh, 3 O' Clock. Active
196.6FCSL
196.6FCSL
208.7FCH
0AMH4:25AM
135.7FCH
120.2FCSL
144.4FCH
188.4FCSL
34.9FCSLIGHHT
277.3DSZROCK
59.2FCHAIRLINE

Properties (7)

additional_info
REVERSE INSPECTION
custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2018-04-03T04:17:12-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
