Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 30, 2018, 08:14 AM

  • 02 1846_02 1845_3302018_013925.mp4

Date
03/30/2018
W/O
0696275
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00283
PipeID
P04191
Time
1:14 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0795
Sewer Name
02 MONTEBELLO INTERCEPTOR TRUNK, SECTS 1&2
City
C0MMERCE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
18
Purpose
Routine Assessment
Project
20180330MDM_MONTEBELLO_INTERCEPTOR_TRUNK_SECTS_1_2
Material
Reinforced Concrete Pipe
Shape
Circular
Height
28.440000534057617 in.
Upstream MH
02 1846
Downstream MH
02 1845
Dir. of Survey
Downstream
Length Surveyed
486 ft.
Total Length
486 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 02 1846 to 02 1845
MH: 02 1846MH: 02 1845downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 1:25AM0 ft. MWL - Water Level, 40 %of cross sectional area8 ft. MGO - General Observation - CIPP LNER8 ft. MGO - General Observation - 28.4" RCP-CIPP28.6 ft. MWL - Water Level, 10 %of cross sectional area186.3 ft. MGO - General Observation - 28.4" RCP-CIPP189.2 ft. MGO - General Observation - CIPPLINER427.7 ft. MGO - General Observation - 28.4" RCP-CIPP446.4 ft. MWM - Water Mark, 30 %of cross sectional area486 ft. AMH - Downstream Manhole, Survey Ends - 2:00AM

Observation photos (6)

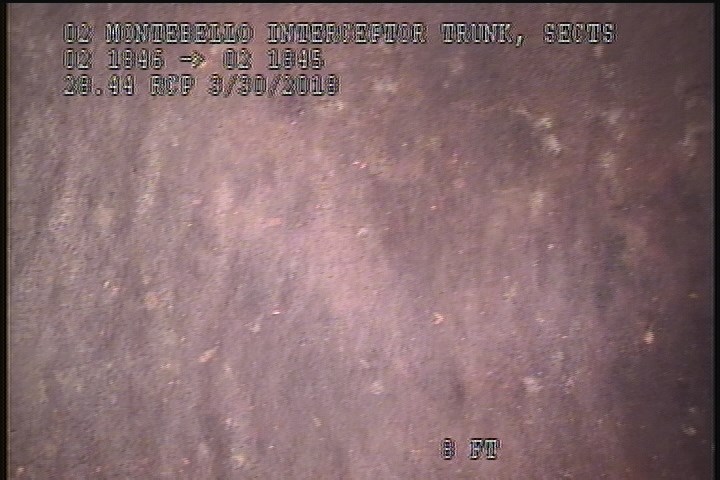

  • General Observation - CIPP LNER

    8 ft. - General Observation - CIPP LNER

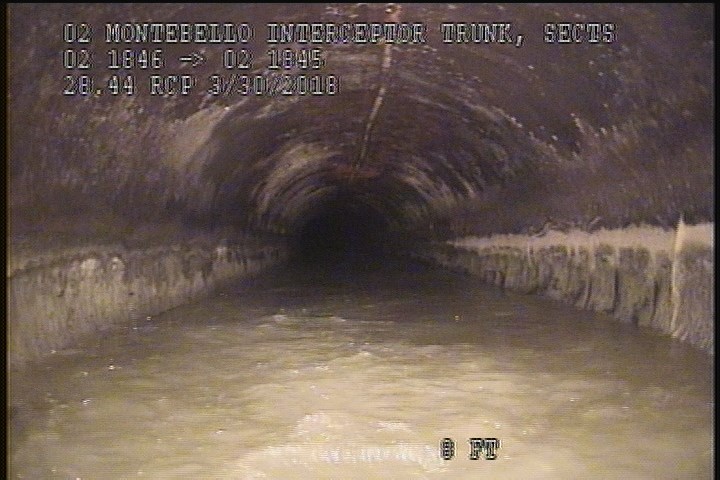

  • General Observation - 28.4" RCP-CIPP

    8 ft. - General Observation - 28.4" RCP-CIPP

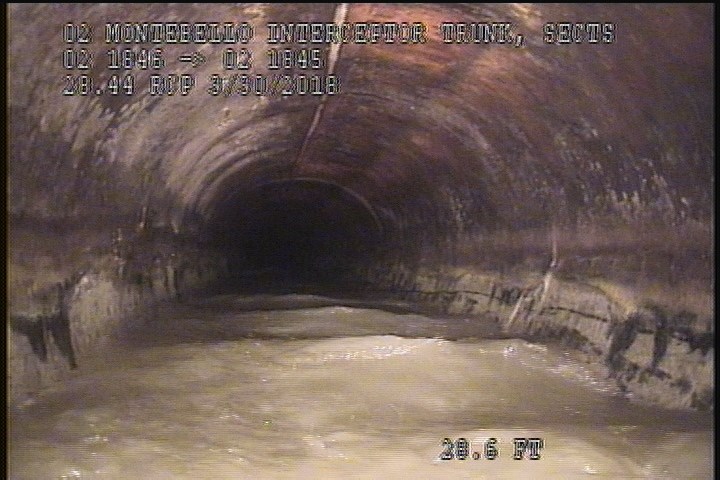

  • Water Level, 10 %of cross sectional area

    28.6 ft. - Water Level, 10 %of cross sectional area

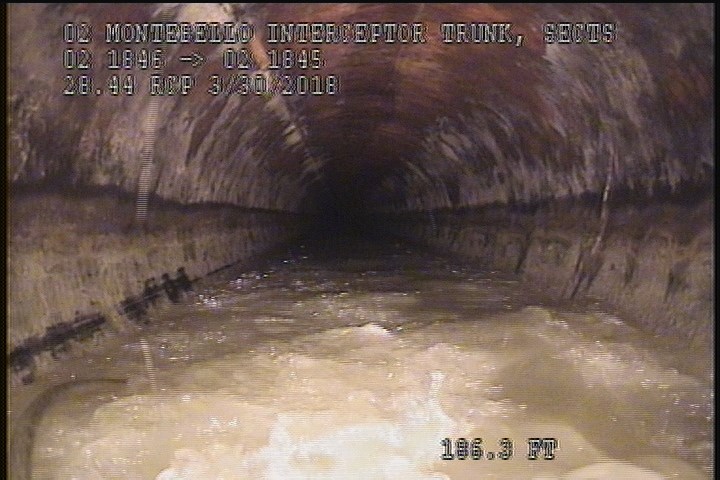

  • General Observation - 28.4" RCP-CIPP

    186.3 ft. - General Observation - 28.4" RCP-CIPP

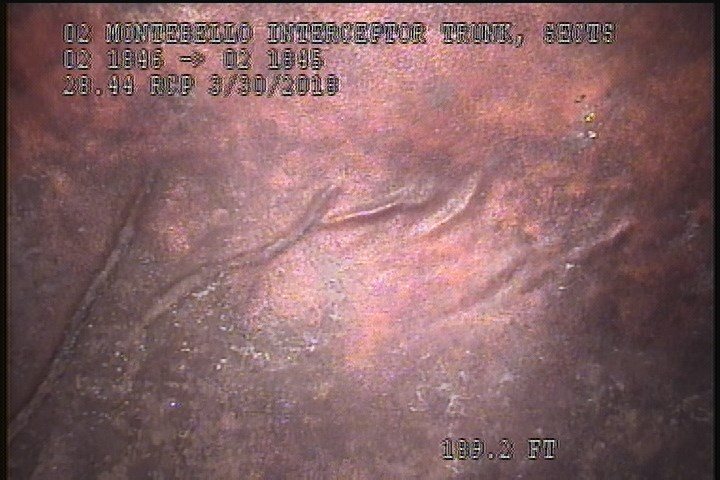

  • General Observation - CIPPLINER

    189.2 ft. - General Observation - CIPPLINER

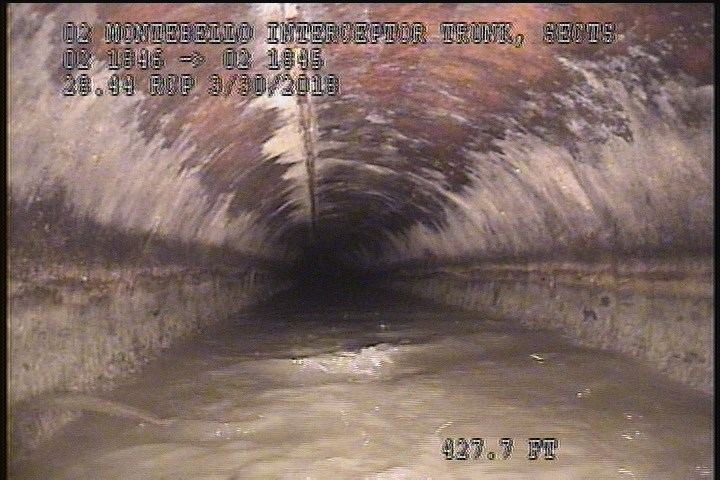

  • General Observation - 28.4" RCP-CIPP

    427.7 ft. - General Observation - 28.4" RCP-CIPP

All inspections of P04191Work order 0696275

Observations (12)

DistanceCodeObservation
0MWM—
446.4MWM—
8MGOCIPP LNER
8MGO28.4" RCP-CIPP
0MGOConn. @ Mh, 3 O' Clock. Active
28.6MWL—
186.3MGO28.4" RCP-CIPP
486AMH2:00AM
0AMH1:25AM
189.2MGOCIPPLINER
427.7MGO28.4" RCP-CIPP
0MWL—

Properties (7)

custom_field_three
LINER GOOD COND
custom_field_two
4
customer
LACSD
datetime
2018-03-30T01:14:12-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
lining
CIPP
