Wastewater/Activity/PacpInspection/1.0Mar 29, 2018, 03:55 PM
A 1212_A 1211_3292018_125025.mp4
- Date
- 03/29/2018
- W/O
- 0697985
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00973
- PipeID
- P02860
- Time
- 8:55 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7672
- Sewer Name
- A JOINT OUTFALL A - UNIT 9
- City
- COMMERCE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- 20180329SHO_JOINT_OUTFALL_A_UNIT_9
- Material
- RCP-CTL
- Shape
- Circular
- Height
- 39 in.
- Upstream MH
- A 1212
- Downstream MH
- A 1211
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (4)

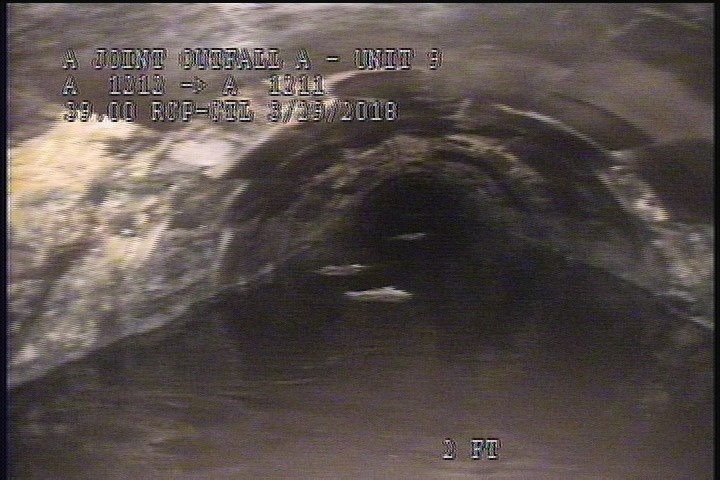

2 ft. - General Observation - 50% MISSING TILES

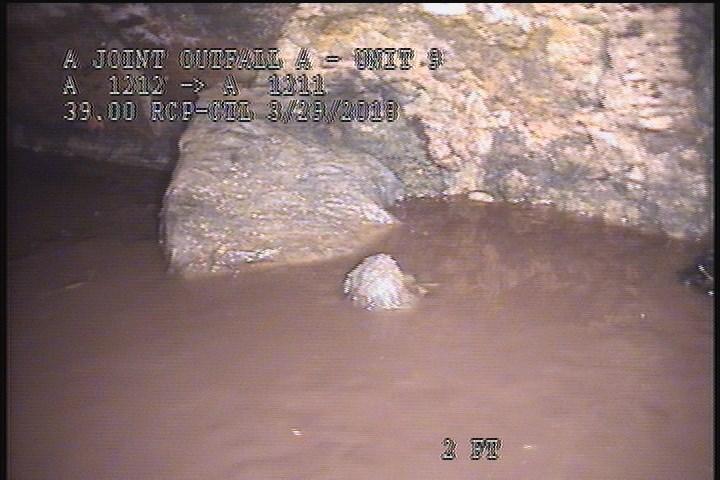

2 ft. - Deposits Settled Other, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES - TILES & UNKNOWN DEBRIS

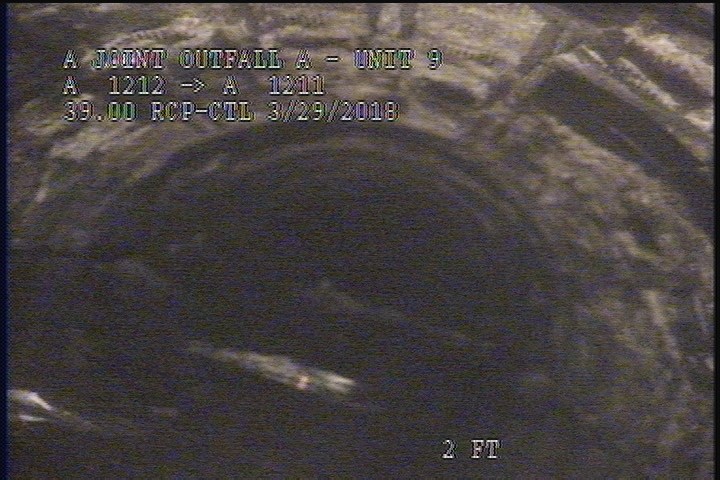

2 ft. - General Observation - DEBRIS FURTHER D/S

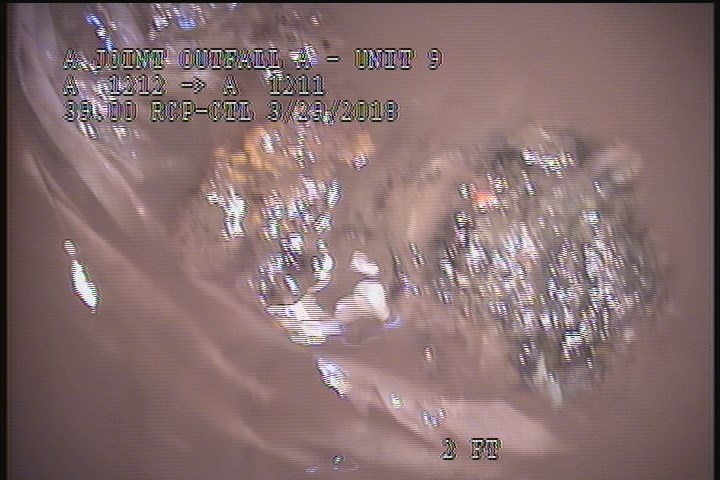

2 ft. - General Observation - DEBRIS 2 FEET IN
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | ACTIVE CONNECTION IN THE MH @ 9 O CLOCK |
| 0 | MWM | — |
| 2 | MGO | 50% MISSING TILES |
| 2 | DSZ | TILES & UNKNOWN DEBRIS |
| 2 | MGO | DEBRIS FURTHER D/S |
| 2 | MGO | DEBRIS 2 FEET IN |
| 0 | MWL | — |
| 2 | MSA | ZOOMING D/S TO MH A 1211 |
| 0 | AMH | 1250 |
Properties (7)
- additional_info
- ZOOMING D/S DUE TO DEBRIS IN THE LINE
- custom_field_three
- DEBRIS IN THE LINE
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-03-29T08:55:02-07:00
- documentation
- OBREGON, BRAR, VENDRYES, PARAISO
- is_lateral_inspection
- false
