Wastewater/Activity/PacpInspection/1.0Mar 14, 2018, 08:12 AM
03 0469_03 0468 _14032018_014934.mp4
- Date
- 03/14/2018
- W/O
- 690067
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00387
- PipeID
- P04798
- Time
- 1:12 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5485
- Sewer Name
- 03 NORTH LONG BEACH TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_690067_TV03025_MAR2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 03 0468
- Downstream MH
- 03 0469
- Dir. of Survey
- Upstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (3)

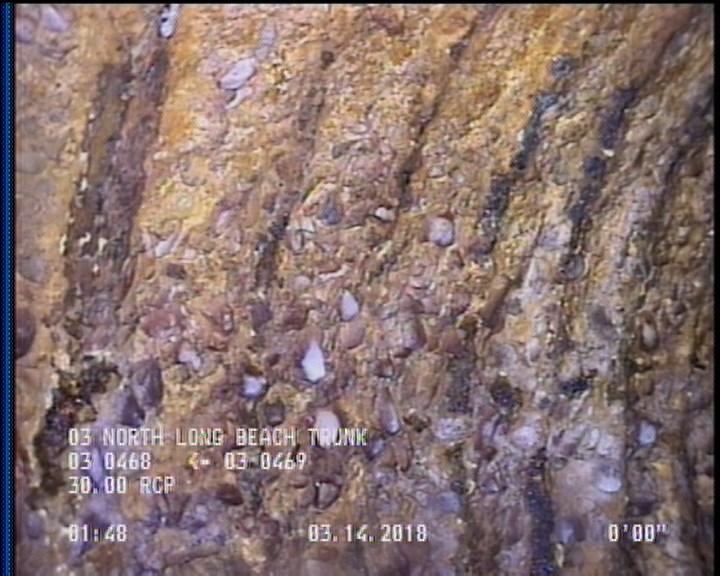

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES

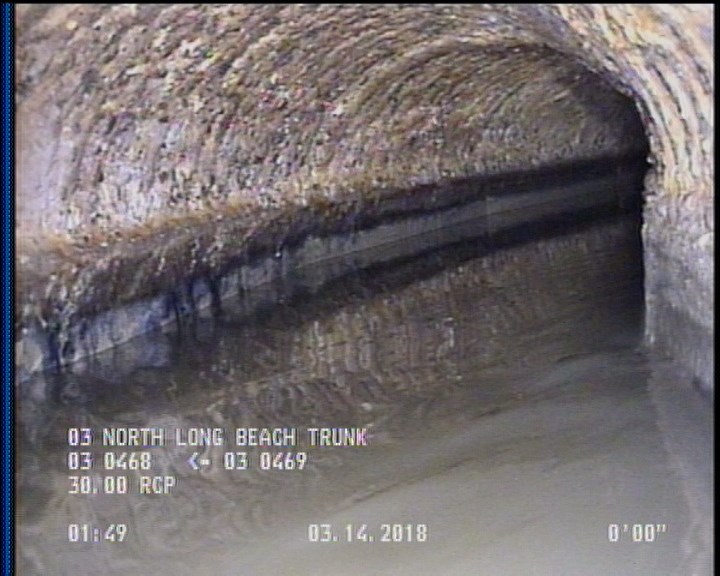

2 ft. - Survey Abandoned - VIEW OF UPLEG OF D/S SIPHON.

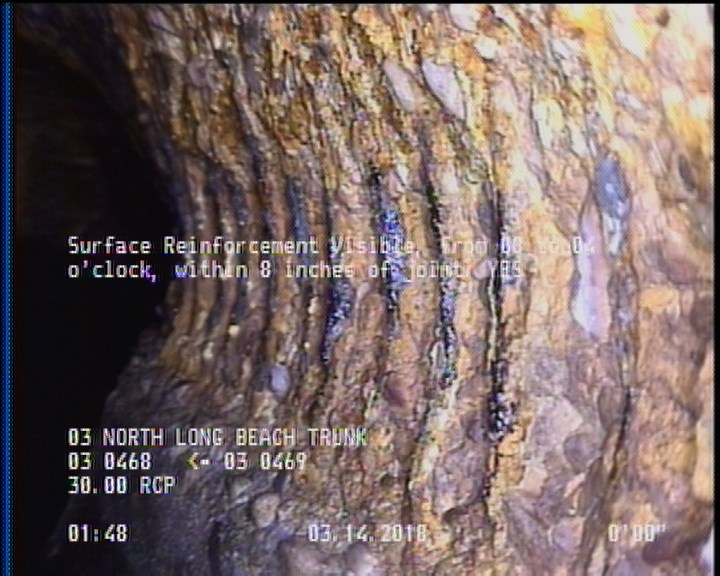

2 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2 | SAP | — |
| 2 | MSA | VIEW OF UPLEG OF D/S SIPHON. |
| 2 | SRV | — |
| 0 | AMH | 03 0468 |
| 0 | MWL | — |
Properties (7)
- additional_info
- SC358491
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-03-14T01:12:45-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 36115
