Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 28, 2018, 12:08 PM

  • 15 0780_15 0779_3282018_052228.mp4

Date
03/28/2018
W/O
0670896
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00593
PipeID
P12981
Time
5:08 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0793
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
ARCADIA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
04
Purpose
Routine Assessment
Project
20180328MDM_ARCADIA_SIERRA_MADRE_TRUNK_SECTS_2_5
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
15 0780
Downstream MH
15 0779
Dir. of Survey
Downstream
Length Surveyed
12.8 ft.
Total Length
12.8 ft.
Structural Index
3
Structural Quick
3222
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 15 0780 to 15 0779
MH: 15 0780MH: 15 0779downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:15AM0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AGG2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING CONCREYTE2.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - MODERATE AGG SPORATIC8.4 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - PEELING CONCRETE MODERATE AGG ATTACHED12.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - MODERATE AGG SPORATIC12.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SLIGHT AGG12.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - PEELING CONCRETE MODERATE AGG ATTCHED12.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active12.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN12.8 ft. AMH - Downstream Manhole, Survey Ends - 5:25AM

Observation photos (4)

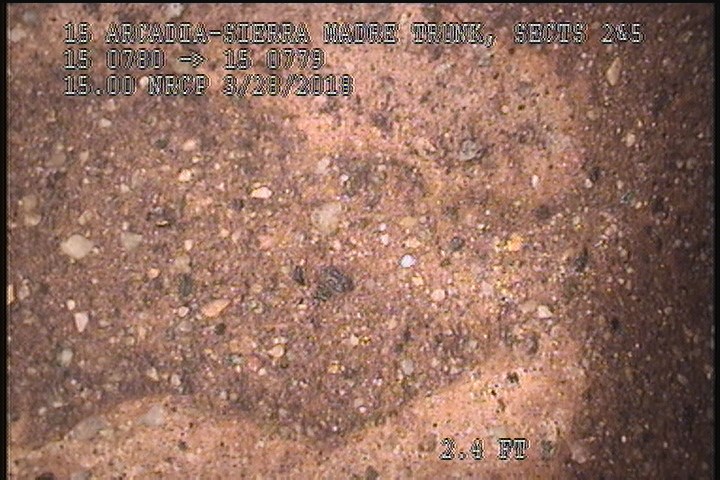

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AGG

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AGG

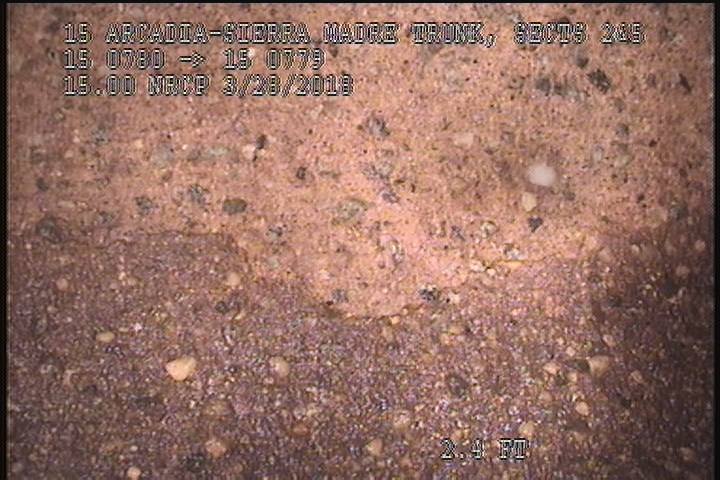

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING CONCREYTE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING CONCREYTE

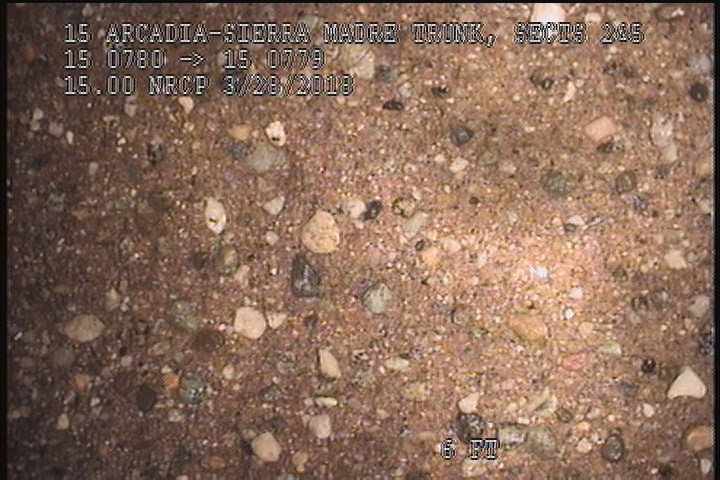

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - MODERATE AGG SPORATIC

    2.4 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - MODERATE AGG SPORATIC

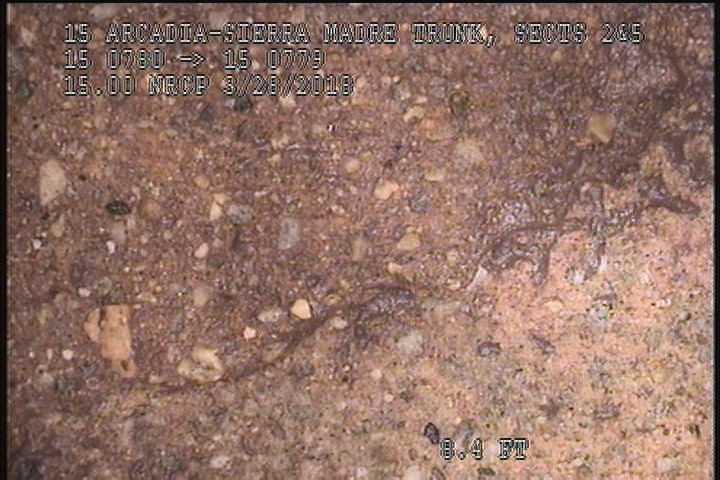

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - PEELING CONCRETE MODERATE AGG ATTACHED

    8.4 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - PEELING CONCRETE MODERATE AGG ATTACHED

All inspections of P12981Work order 0670896

Observations (14)

DistanceCodeObservation
12.8AMH5:25AM
0AMH5:15AM
2SAVSLIGHT AGG
0MGOConn. @ Mh, 9 O' Clock. Active
12.2SAVMODERATE AGG SPORATIC
2.4SAVMODERATE AGG SPORATIC
12.2SAVSLIGHT AGG
2SSSPEELING CONCREYTE
12.2SSSPEELING CONCRETE MODERATE AGG ATTCHED
0MWL—
8.4SSSPEELING CONCRETE MODERATE AGG ATTACHED
12.2MGOConn. @ Mh, 3 O' Clock. Active
0MWM—
12.2MGOConn. @ Mh, 3 O' Clock. OPEN

Properties (6)

custom_field_three
PEELING CONCRETE MODERATE AGG ATTCHED
custom_field_two
2
customer
LACSD
datetime
2018-03-28T05:08:08-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
