Wastewater/Activity/PacpInspection/1.0Jun 28, 2018, 08:07 AM
02 1235_02 1234_28062018_011356.mp4
- Date
- 06/28/2018
- W/O
- 712343
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00303
- PipeID
- P18787
- Time
- 1:07 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5808
- Sewer Name
- 02 SANTA ANITA OUTFALL TRUNK
- City
- MONTEBELLO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_712343_TV02300_JUL2018
- Sewer Type
- Siphon
- Material
- CIP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 1235
- Downstream MH
- 02 1234
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.3 ft.
- Total Length
- 2.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 5121
- O&M Rating
- 7
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

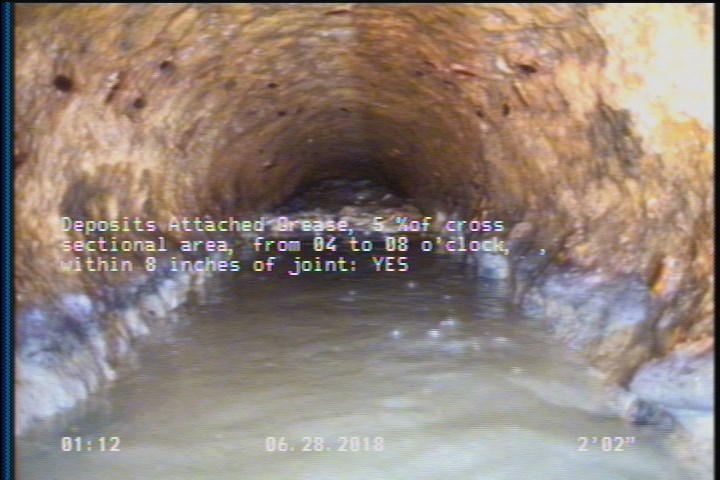

2.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

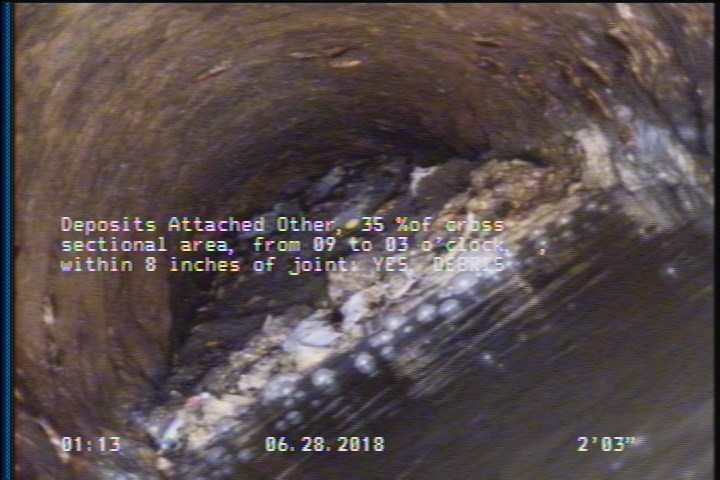

2.3 ft. - Deposits Attached Other, 35 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES - DEBRIS

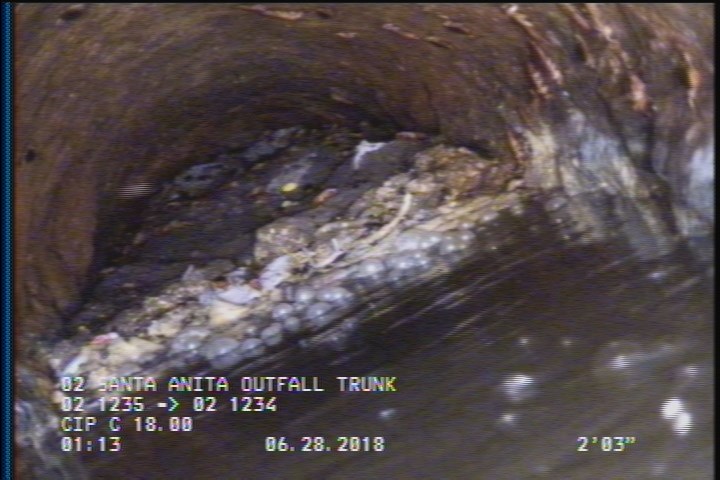

2.3 ft. - Survey Abandoned - VIEW OF THE SIPHON DOWNLEG FROM U/S MH
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 2 | MWM | — |
| 2.3 | DAZ | DEBRIS |
| 0 | AMH | 02 1235 |
| 0 | MWL | — |
| 2.2 | DAGS | — |
| 2.3 | MSA | VIEW OF THE SIPHON DOWNLEG FROM U/S MH |
| 0 | MGO | WEST BARREL |
Properties (6)
- additional_info
- SC359532
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-28T01:07:38-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
