Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 26, 2018, 06:24 AM

  • 32 1352_32 0072 _25062018_234111.mp4

Date
06/25/2018
W/O
712244
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00886
PipeID
P19837
Time
11:24 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5750
Sewer Name
32 CASTAIC TRUNK
City
CASTAIC
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
01
Purpose
Routine Assessment
Project
WO_712244_TV32012_JUL2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
32 0072
Downstream MH
32 1352
Dir. of Survey
Upstream
Length Surveyed
299.4 ft.
Total Length
299.4 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
2
O&M Quick
2I00
O&M Rating
96
Overall Index
2
Overall Quick
—
Overall Rating
100
Pipe schematic from manhole 32 0072 to 32 1352
MH: 32 0072MH: 32 1352upstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Ends - 32 13520 ft. MGO - General Observation - COCKROACHES IN MANHOLE1.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish71 ft. FM - Fracture Multiple, from 02 to 06 o'clock, within 8 inches of joint: YES239.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start269.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"299.4 ft. MWL - Water Level, 5 %of cross sectional area299.4 ft. MWM - Water Mark, 15 %of cross sectional area299.4 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK299.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE299.4 ft. AMH - Downstream Manhole, Survey Begins - 32 0072

Observation photos (2)

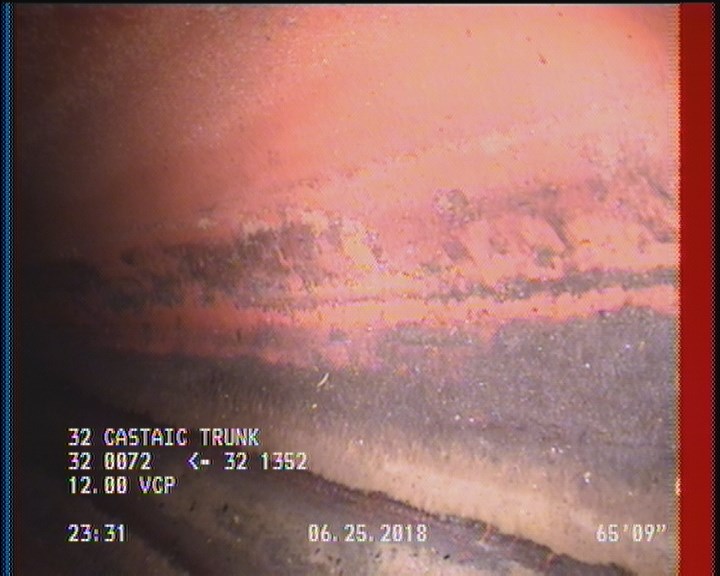

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    60 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

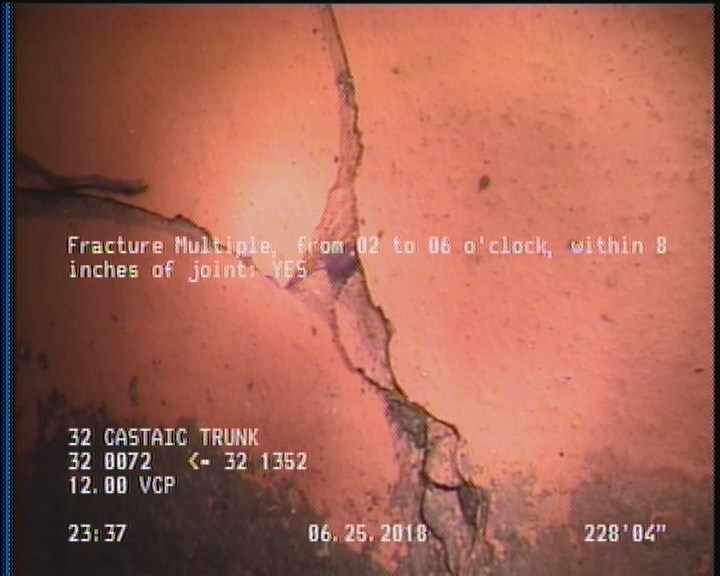

  • Fracture Multiple, from 02 to 06 o'clock, within 8 inches of joint: YES

    228.4 ft. - Fracture Multiple, from 02 to 06 o'clock, within 8 inches of joint: YES

All inspections of P19837Work order 712244

Observations (12)

DistanceCodeObservation
299.4MGOACTIVE CONNECTION AT MH 3 O'CLOCK
299.4AMH32 1352
60DAGS—
298.3DAGS—
30.3TFA—
299.4MGOCOCKROACHES IN MANHOLE
228.4FM—
0MWL—
0MWM—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0MGOCOCKROACHES IN MANHOLE
0AMH32 0072

Properties (7)

additional_info
SC359716
custom_field_two
3
customer
LACSD
datetime
2018-06-25T23:24:28-07:00
documentation
PRO PIPE
is_lateral_inspection
false
year_laid
27282
