Wastewater/Activity/PacpInspection/1.0Jul 3, 2018, 08:07 AM
32 0026A_32 0026_03072018_011856.mp4
- Date
- 07/03/2018
- W/O
- 712244
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00886
- PipeID
- P19791
- Time
- 1:07 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5857
- Sewer Name
- 32 CASTAIC TRUNK
- City
- CASTAIC
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_712244_TV32012_JUL2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 32 0026A
- Downstream MH
- 32 0026
- Dir. of Survey
- Downstream
- Length Surveyed
- 146.9 ft.
- Total Length
- 146.9 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 2
- O&M Quick
- 412E
- O&M Rating
- 62
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 63
Observation photos (2)

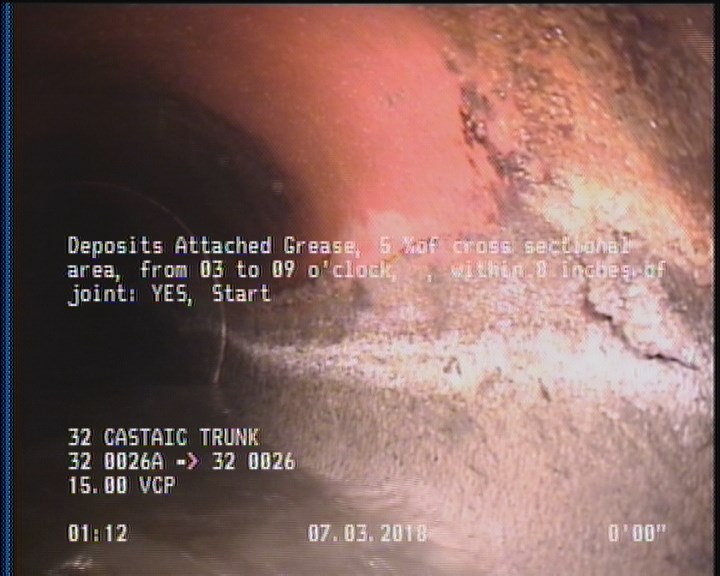

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

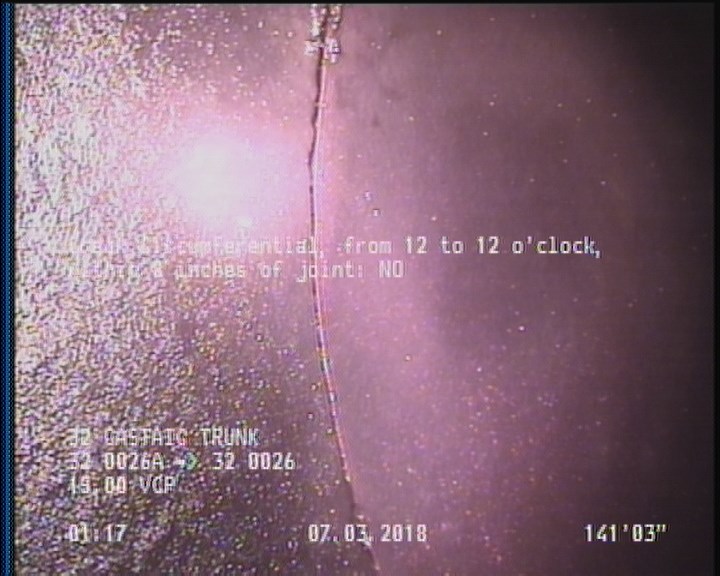

141.3 ft. - Crack Circumferential, from 12 to 12 o'clock, within 8 inches of joint: NO
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 141.3 | CC | — |
| 2 | DAGS | — |
| 144.6 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
| 0 | AMH | 32 0026A |
| 146.9 | AMH | 32 0026, RUN LIST STATES MH AT 202,. |
Properties (6)
- additional_info
- SC359724
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-03T01:07:29-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
