Wastewater/Activity/PacpInspection/1.0Jul 6, 2018, 08:13 AM
32 0012_32 0011A _06072018_012511.mp4
- Date
- 07/06/2018
- W/O
- 712244
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00886
- PipeID
- P25492
- Time
- 1:13 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5859
- Sewer Name
- 32 CASTAIC TRUNK
- City
- CASTAIC
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_712244_TV32012_JUL2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 32 0012
- Downstream MH
- 32 0011A
- Dir. of Survey
- Downstream
- Length Surveyed
- 82.1 ft.
- Total Length
- 82.1 ft.
- Structural Index
- 4
- Structural Quick
- 4200
- Structural Rating
- 8
- O&M Index
- 2
- O&M Quick
- 422B
- O&M Rating
- 40
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 48
Observation photos (2)

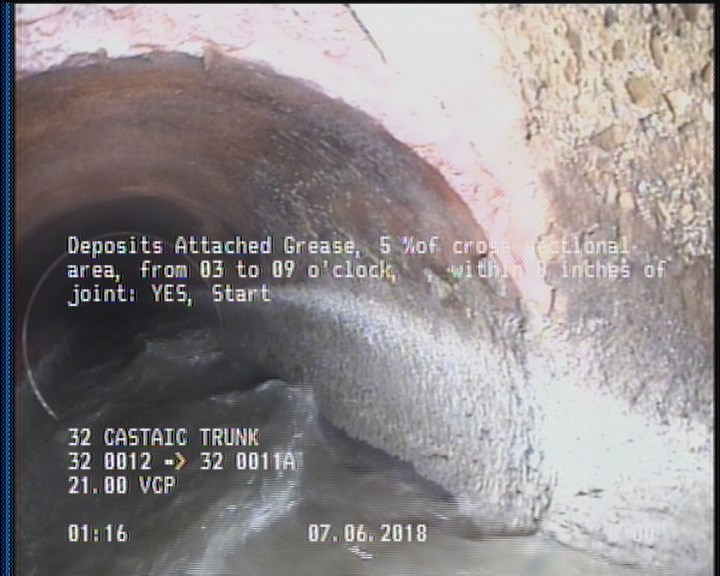

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

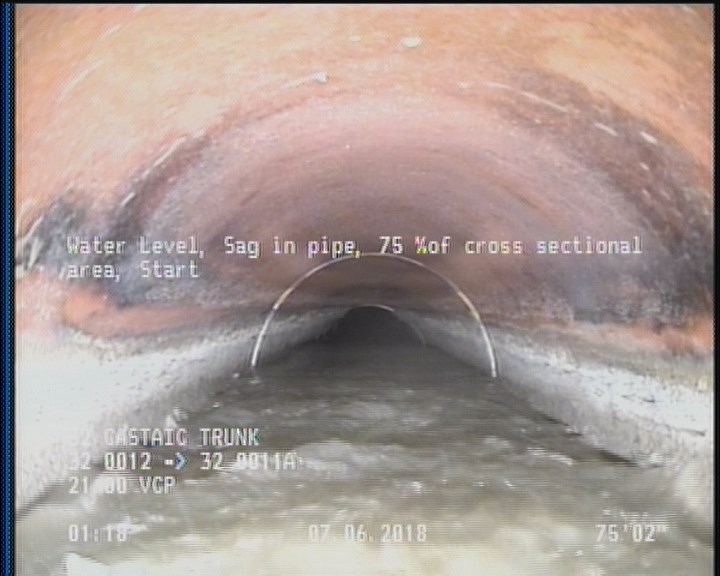

75.1 ft. - Water Level, Sag in pipe, 75 %of cross sectional area, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 82.1 | MSA | CAMERA UNDERWATER. |
| 82 | MWLS | — |
| 0 | AMH | 32 0012 |
| 82 | DAGS | — |
| 0 | MWL | — |
| 75.1 | MWLS | — |
| 82 | MCU | — |
| 0 | MWM | — |
| 2 | DAGS | — |
Properties (6)
- additional_info
- SC359726
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-07-06T01:13:39-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
