Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 28, 2018, 05:32 AM

  • 18 0936_18 0935 _27062018_225111.mp4

Date
06/27/2018
W/O
711900
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00700
PipeID
P14784
Time
10:32 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5758
Sewer Name
18 SCOTT AVENUE TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
WO_711900_TV18047_JUL2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
18 0936
Downstream MH
18 0935
Dir. of Survey
Downstream
Length Surveyed
352.6 ft.
Total Length
352.6 ft.
Structural Index
3
Structural Quick
423M
Structural Rating
212
O&M Index
3
O&M Quick
4131
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
220
Pipe schematic from manhole 18 0936 to 18 0935
MH: 18 0936MH: 18 0935downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 093611 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start20.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"23.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"72 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"74.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"121.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"124.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"152.5 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"172.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"175.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"219.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"219.9 ft. RMC - Roots Medium Connection, from 07 to 09 o'clock, 15 %, within 8 inches of joint: NO219.9 ft. RBL - Roots Ball Lateral, at 10 o'clock, 85 %222.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"232.3 ft. RFJ - Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES232.9 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES251.8 ft. FM - Fracture Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES271.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"273.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"322.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"324.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"352.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish352.6 ft. MGO - General Observation - CAPPED LATERAL 9 O'CLOCK @ MH352.6 ft. AMH - Downstream Manhole, Survey Ends - 18 0935352.6 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK

Observation photos (5)

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    11 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Roots Medium Connection, from 07 to 09 o'clock, 15 %, within 8 inches of joint: NO

    219.9 ft. - Roots Medium Connection, from 07 to 09 o'clock, 15 %, within 8 inches of joint: NO

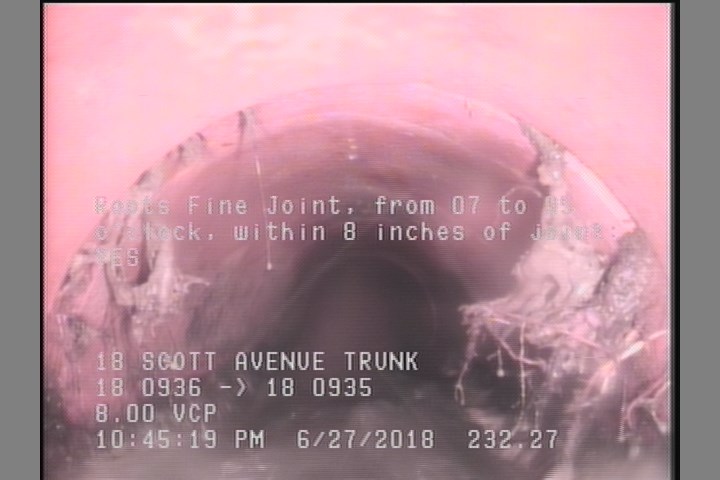

  • Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES

    232.3 ft. - Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES

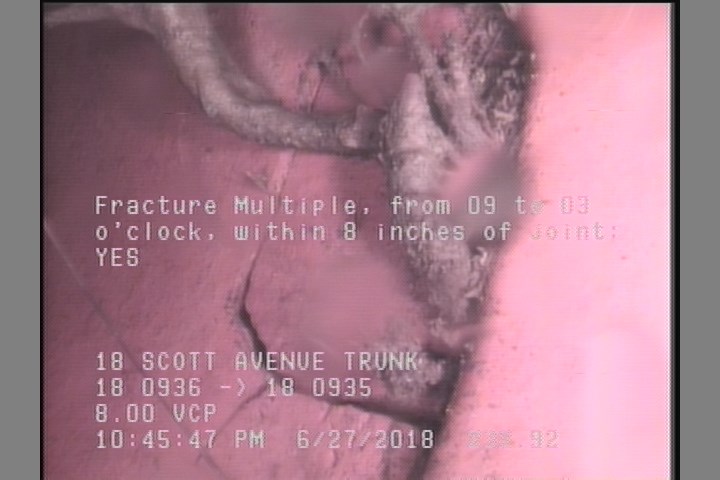

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    232.9 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

  • Fracture Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES

    251.8 ft. - Fracture Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES

All inspections of P14784Work order 711900

Observations (30)

DistanceCodeObservation
251.8FM—
219.9TF—
324.8TFC—
273.6TFC—
72TFC—
271.2TF—
20.9TFC—
219.9RMC—
222.2TFC—
352.5CM—
0MGOCONNECTION AT MH 9 O'CLOCK
11CM—
0MGOCONNECTION AT MH 3 O'CLOCK
0MWM—
232.3RFJ—
322.1TFC—
0MWL—
121.8TFC—
219.9RBL—
352.6MGOCAPPED LATERAL 9 O'CLOCK @ MH
232.9FM—
172.4TFC—
352.6AMH18 0935
74.3TFC—
152.5TF—
0AMH18 0936
124.5TF—
175.1TFC—
23.6TFC—
352.6MGOCONNECTION AT MH 3 O'CLOCK

Properties (6)

additional_info
SC359667
custom_field_two
3
customer
LACSD
datetime
2018-06-27T22:32:56-07:00
documentation
PROPIPE
is_lateral_inspection
false
