Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 19, 2018, 08:54 PM

  • 05 1186_05 1185_7192018_135625.mp4

Date
07/19/2018
W/O
0717904
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00514
PipeID
P06426
Time
1:54 PM
Certificate
U-1-140-0602254
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7762
Sewer Name
05 ROSECRANS AVENUE TRUNK
City
LAWNDALE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
17
Purpose
Routine Assessment
Project
20180719SHO_ROSECRANS_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
9.539999961853027 in.
Upstream MH
05 1186
Downstream MH
05 1185
Dir. of Survey
Downstream
Length Surveyed
213.3 ft.
Total Length
213.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 05 1186 to 05 1185
MH: 05 1186MH: 05 1185downstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 118628.6 ft. LFAC - Lining Failure Abandoned Connection, at 02 o'clock, within 8 inches of joint: NO72.7 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6"121.2 ft. LFZ - Lining Failure Other, at 07 o'clock, within 8 inches of joint: NO, Start - LINER TAPE IS LOOSE123.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"166 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"209.7 ft. LFZ - Lining Failure Other, at 07 o'clock, within 8 inches of joint: NO, Finish - LINER TAPE IS LOOSE213.3 ft. AMH - Downstream Manhole, Survey Ends - 05 1185

Observation photos (1)

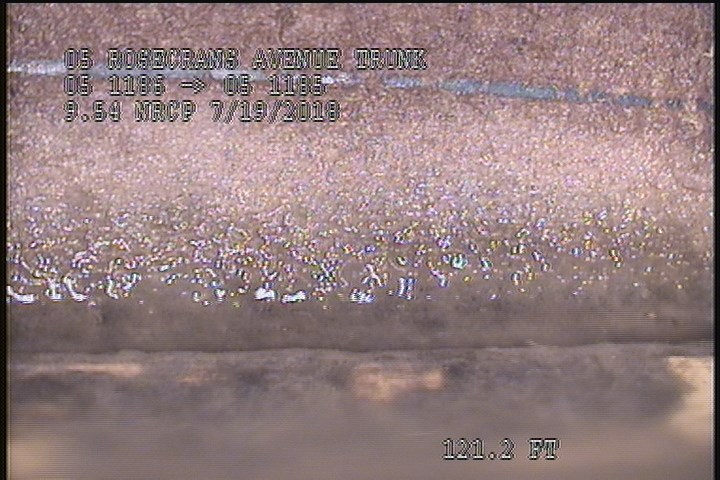

  • Lining Failure Other, at 07 o'clock, within 8 inches of joint: NO, Start - LINER TAPE IS LOOSE

    121.2 ft. - Lining Failure Other, at 07 o'clock, within 8 inches of joint: NO, Start - LINER TAPE IS LOOSE

All inspections of P06426Work order 0717904

Observations (10)

DistanceCodeObservation
0MWL—
0MWM—
0AMH05 1186
28.6LFAC—
213.3AMH05 1185
121.2LFZLINER TAPE IS LOOSE
123.4TF—
72.7TFD—
209.7LFZLINER TAPE IS LOOSE
166TF—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2018-07-19T13:54:14-07:00
documentation
OBREGON, BRAR, VENDRYES, PARAISO
is_lateral_inspection
false
