Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 13, 2018, 11:23 AM

  • C 0337_C 0336_7132018_044229.mp4

Date
07/13/2018
W/O
0716531
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00138
PipeID
P09800
Time
4:23 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0934
Sewer Name
C JOINT OUTFALL C - UNIT 7B
City
HAWAIIAN GARDENS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
08
Purpose
Capital Improvement Program Assesment
Project
20180713MDM_JOINT_OUTFALL_C_UNIT_7B
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
C 0337
Downstream MH
C 0336
Dir. of Survey
Downstream
Length Surveyed
741.8 ft.
Total Length
741.9 ft.
Structural Index
3
Structural Quick
3322
Structural Rating
13
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole C 0337 to C 0336
MH: C 0337MH: C 0336downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:45AM0 ft. MWL - Water Level, 5 %of cross sectional area - NO FLOW0 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE UNDER MAG COAT2 ft. MGO - General Observation - MAG COAT 95% START 9:00 TO 3:009.4 ft. SAV - Surface Aggregate Visible, from 10 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG99.3 ft. SAV - Surface Aggregate Visible, from 12 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC191.6 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE UNDER MAG COAT440.4 ft. SAV - Surface Aggregate Visible, from 12 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG740.2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE740.2 ft. MGO - General Observation - MAG COAT 95% FINISH741.9 ft. MSA - Survey Abandoned - 5:30AM CABLE PROBLEM WILL COMPLETE REVERSE INSPECTION

Observation photos (6)

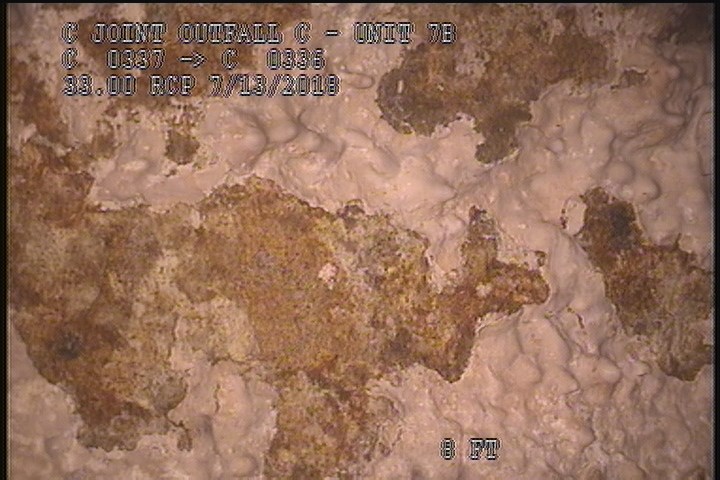

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE UNDER MAG COAT

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE UNDER MAG COAT

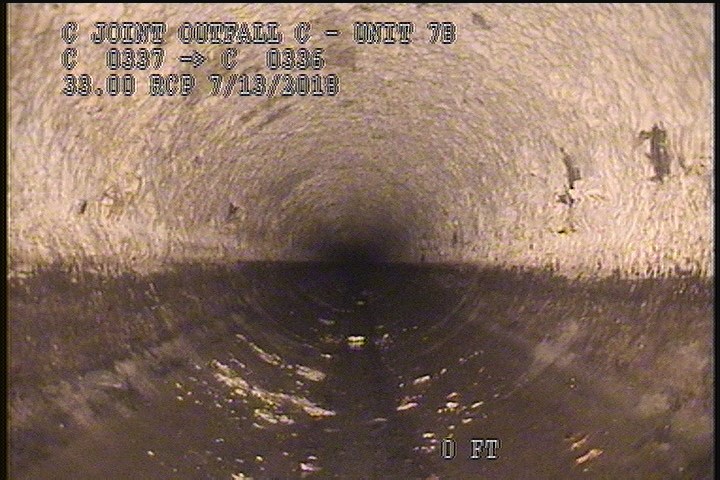

  • General Observation - MAG COAT 95% START 9:00 TO 3:00

    2 ft. - General Observation - MAG COAT 95% START 9:00 TO 3:00

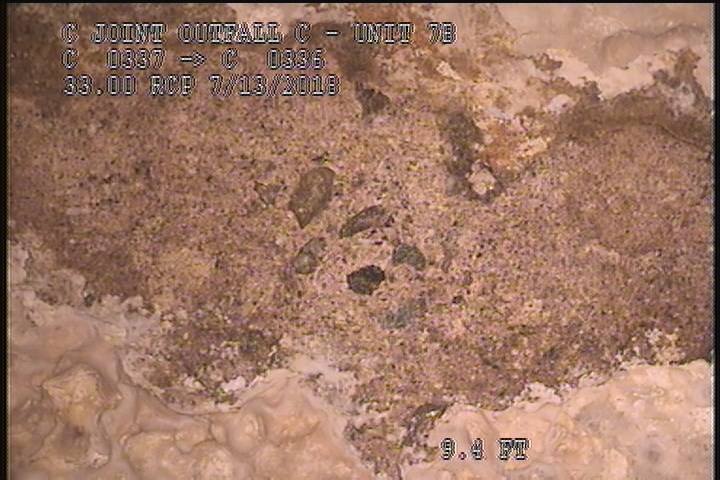

  • Surface Aggregate Visible, from 10 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG

    9.4 ft. - Surface Aggregate Visible, from 10 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG

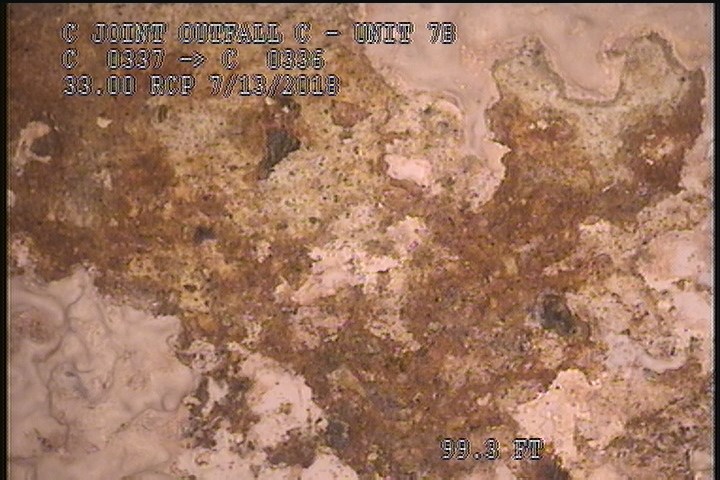

  • Surface Aggregate Visible, from 12 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

    99.3 ft. - Surface Aggregate Visible, from 12 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG SPORATIC

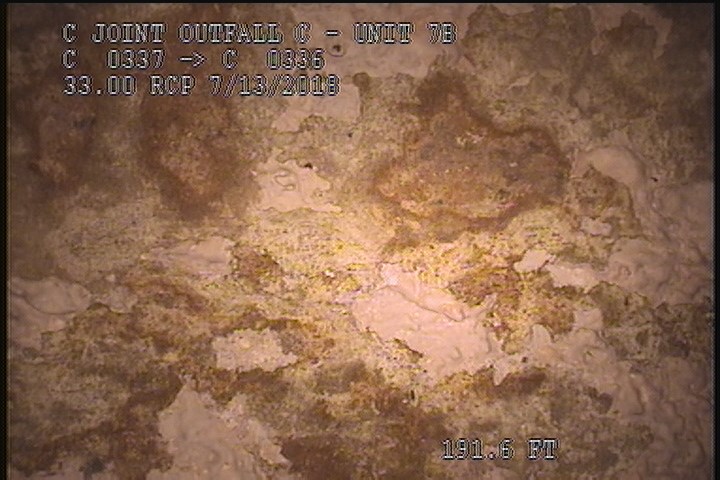

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE UNDER MAG COAT

    191.6 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE UNDER MAG COAT

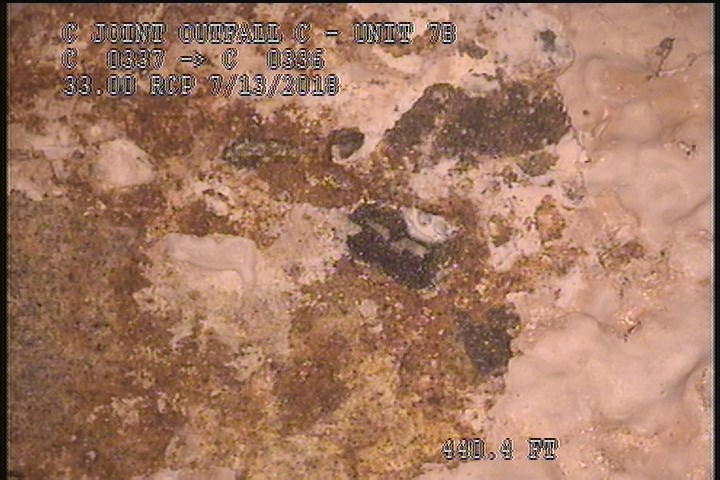

  • Surface Aggregate Visible, from 12 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG

    440.4 ft. - Surface Aggregate Visible, from 12 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG

All inspections of P09800Work order 0716531

Observations (12)

DistanceCodeObservation
741.9MSA5:30AM CABLE PROBLEM WILL COMPLETE REVERSE INSPECTION
99.3SAVSEVERE AGG SPORATIC
2SSSBLISTERING PEELING CONCRETE UNDER MAG COAT
0AMH4:45AM
740.2SSSBLISTERING PEELING CONCRETE
440.4SAVSEVERE AGG
2MGOMAG COAT 95% START 9:00 TO 3:00
740.2MGOMAG COAT 95% FINISH
0MWLNO FLOW
0MWM—
191.6SSSBLISTERING PEELING CONCRETE UNDER MAG COAT
9.4SAVSEVERE AGG

Properties (6)

custom_field_three
SEVERE AGG VISIBLE- 95% MAG COAT
custom_field_two
3
customer
LACSD
datetime
2018-07-13T04:23:08-07:00
documentation
MARTIN,REVELES,OLIVER 111,YOUNG
is_lateral_inspection
false
