Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 27, 2017, 07:52 AM

  • 01 0354_01 0353_12262017_235336.mp4

Date
12/26/2017
W/O
679333
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00215
PipeID
P00828
Time
11:52 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5294
Sewer Name
01 NADEAU TRUNK, SECTS 2&1
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
06
Purpose
Routine Assessment
Project
WO_679333_TV01077_JAN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0354
Downstream MH
01 0353
Dir. of Survey
Downstream
Length Surveyed
341.5 ft.
Total Length
341.5 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2M00
O&M Rating
136
Overall Index
2
Overall Quick
—
Overall Rating
142
Pipe schematic from manhole 01 0354 to 01 0353
MH: 01 0354MH: 01 0353downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 03540 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start8.1 ft. CM - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES135.7 ft. CM - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES339.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish339.6 ft. MGO - General Observation - COCKROACHES IN MANHOLE341.5 ft. AMH - Downstream Manhole, Survey Ends - 01 0353

Observation photos (3)

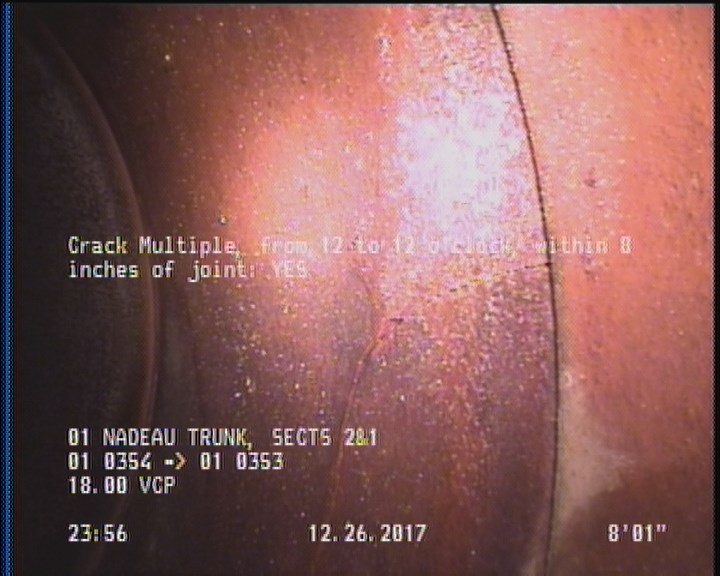

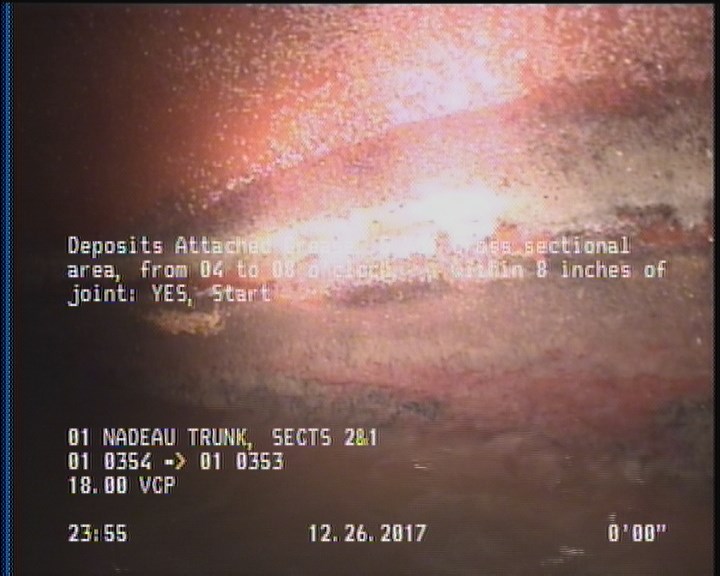

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

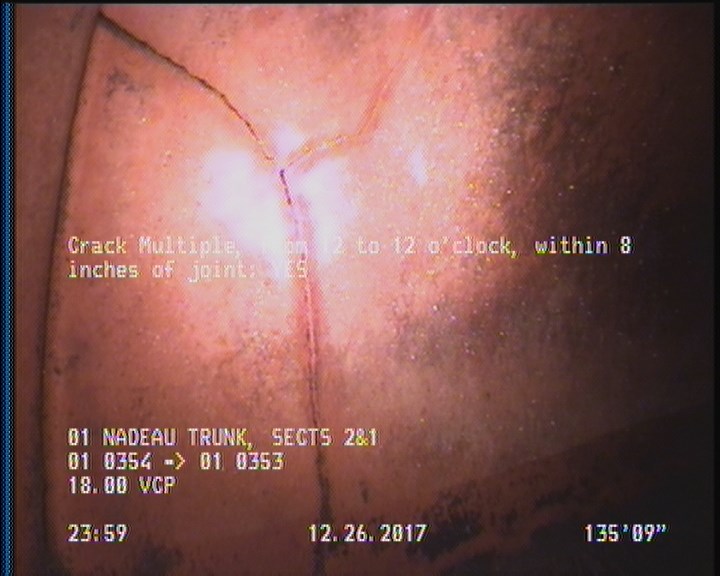

  • Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

    8.1 ft. - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

    135.7 ft. - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

All inspections of P00828Work order 679333

Observations (9)

DistanceCodeObservation
0AMH01 0354
341.5AMH01 0353
339.6DAGS—
0MWM—
135.7CM—
0MWL—
8.1CM—
2DAGS—
339.6MGOCOCKROACHES IN MANHOLE

Properties (6)

additional_info
SC346431
custom_field_two
3
customer
LACSD
datetime
2017-12-26T23:52:50-08:00
documentation
PRO PIPE
is_lateral_inspection
false
