Wastewater/Activity/PacpInspection/1.0Jan 5, 2018, 12:21 PM
18 0129_18 0128 _05012018_042211.mp4
- Date
- 01/05/2018
- W/O
- 679305
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00695
- PipeID
- P13950
- Time
- 4:21 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5305
- Sewer Name
- 18 ORR AND DAY ROAD TRUNK
- City
- NORWALK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 29
- Purpose
- Routine Assessment
- Project
- WO_679305_TV18170_JAN2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 18 0129
- Downstream MH
- 18 0128
- Dir. of Survey
- Downstream
- Length Surveyed
- 17.1 ft.
- Total Length
- 17.2 ft.
- Structural Index
- 4
- Structural Quick
- 5333
- Structural Rating
- 24
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 24
Observation photos (2)

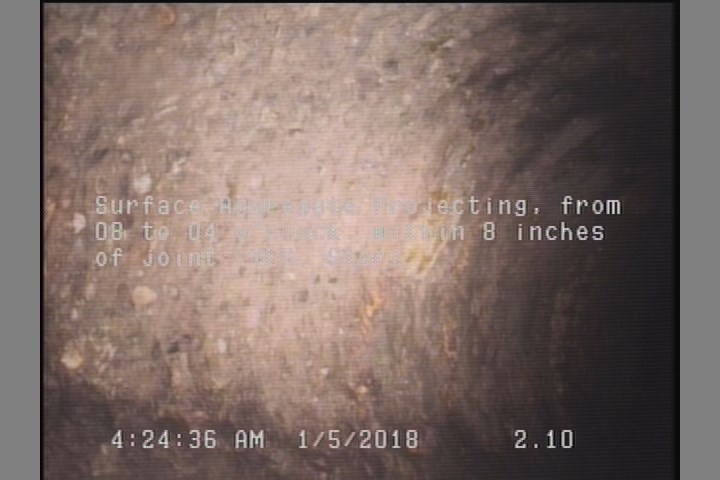

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

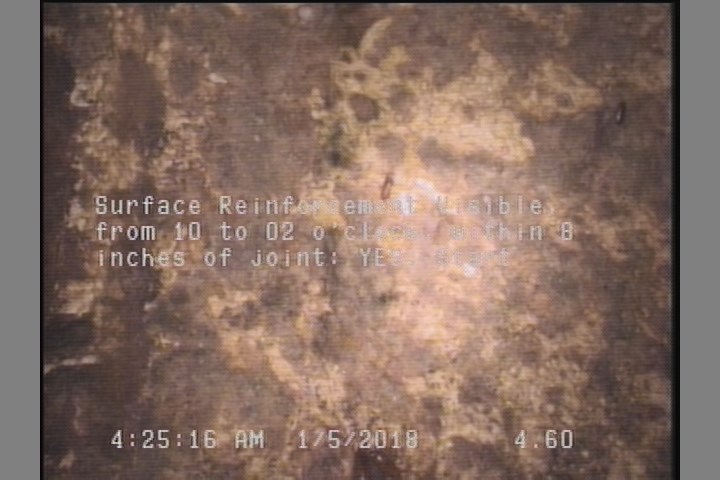

4.6 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 17 | SAP | — |
| 17.2 | SRV | — |
| 2.1 | SAP | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 17.2 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | 18 0129 |
| 17.2 | AMH | 18 0128 |
| 4.6 | SRV | — |
Properties (6)
- additional_info
- SC346779
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-01-05T04:21:18-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
