Wastewater/Activity/PacpInspection/1.0Jan 2, 2018, 10:53 AM
H 1296_H 1295 _02012018_025317.mp4
- Date
- 01/02/2018
- W/O
- 679277
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z01183
- PipeID
- P17312
- Time
- 2:53 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5300
- Sewer Name
- H JOINT OUTFALL H - UNIT 8L
- City
- AZUSA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_679277_TV22154_JAN2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- H 1295
- Downstream MH
- H 1296
- Dir. of Survey
- Upstream
- Length Surveyed
- 412.4 ft.
- Total Length
- 412.4 ft.
- Structural Index
- 3
- Structural Quick
- 513O
- Structural Rating
- 409
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 409
Observation photos (3)

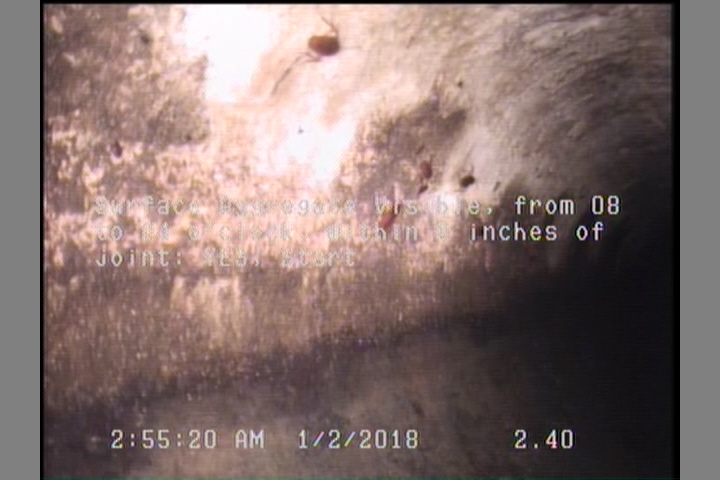

2.4 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

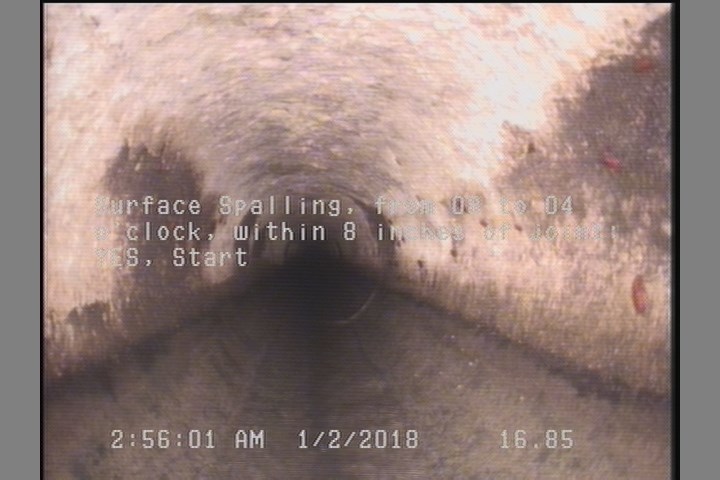

16.7 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

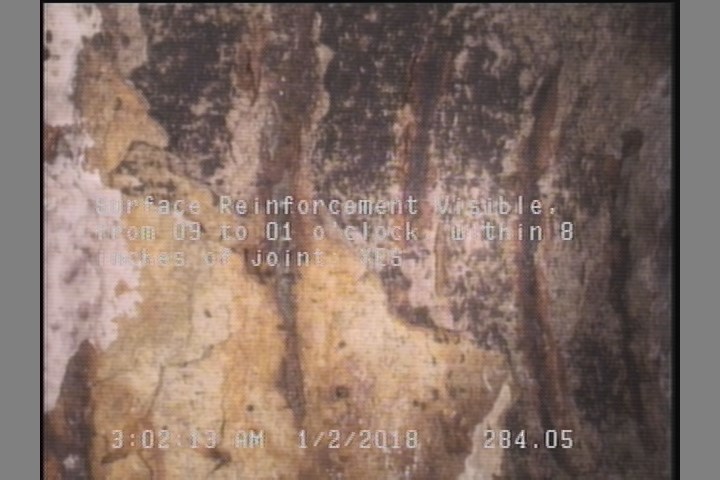

284.1 ft. - Surface Reinforcement Visible, from 09 to 01 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 412.4 | SAV | — |
| 2.5 | MGO | MAG COAT |
| 0 | MWM | — |
| 412.4 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 16.7 | SSS | — |
| 412.4 | SSS | — |
| 0 | MWL | — |
| 412.4 | AMH | H 1296 |
| 0 | AMH | H 1295 |
| 284.1 | SRV | — |
| 2.4 | SAV | — |
Properties (6)
- additional_info
- SC346774
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-01-02T02:53:01-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
