Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 3, 2018, 06:20 AM

  • 01 0327_01 0326_01022018_223854.mp4

Date
01/02/2018
W/O
679271
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00215
PipeID
P00797
Time
10:20 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5363
Sewer Name
01 NADEAU TRUNK, SECTS 2&1
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
07
Purpose
Routine Assessment
Project
WO_679271_TV01126_JAN2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0327
Downstream MH
01 0326
Dir. of Survey
Downstream
Length Surveyed
455.2 ft.
Total Length
455.2 ft.
Structural Index
3
Structural Quick
3Q00
Structural Rating
270
O&M Index
2
O&M Quick
412Q
O&M Rating
184
Overall Index
3
Overall Quick
—
Overall Rating
454
Pipe schematic from manhole 01 0327 to 01 0326
MH: 01 0327MH: 01 0326downstream0 ft. MGO - General Observation - MAG COATING 80%0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 03270 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start453.9 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish453.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish455.2 ft. AMH - Downstream Manhole, Survey Ends - 01 0326

Observation photos (2)

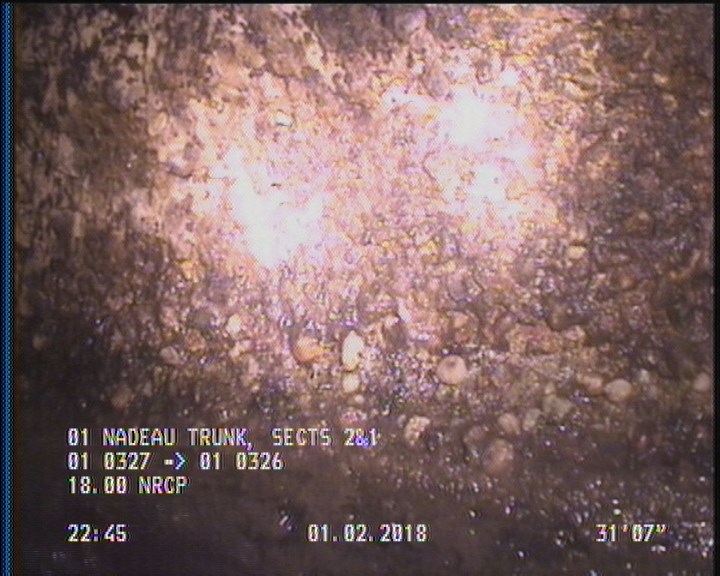

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

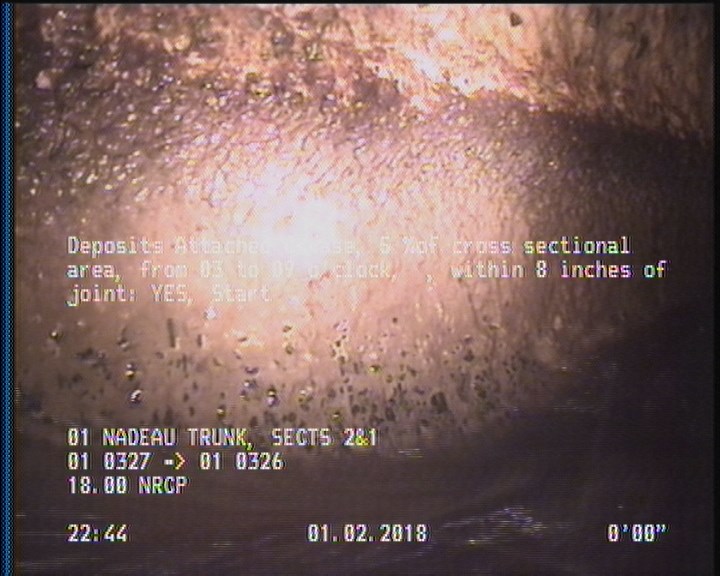

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P00797Work order 679271

Observations (9)

DistanceCodeObservation
2SAP—
0MGOMAG COATING 80%
0MWL—
2DAGS—
455.2AMH01 0326
0AMH01 0327
453.9SAP—
453.9DAGS—
0MWM—

Properties (6)

additional_info
SC346440
custom_field_two
2
customer
LACSD
datetime
2018-01-02T22:20:35-08:00
documentation
PRO PIPE
is_lateral_inspection
false
