Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 22, 2018, 12:39 PM

  • H 0106_H 0105_1222018_050027.mp4

Date
01/22/2018
W/O
0683963
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00165
PipeID
P10558
Time
4:39 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0729
Sewer Name
H JOINT OUTFALL H - UNIT 1F
City
SOUTH GATE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Capital Improvement Program Assesment
Project
20180122MDM_JOINT_OUTFALL_H_UNIT_1F
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
H 0106
Downstream MH
H 0105
Dir. of Survey
Downstream
Length Surveyed
300.6 ft.
Total Length
300.7 ft.
Structural Index
4
Structural Quick
5543
Structural Rating
39
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
39
Pipe schematic from manhole H 0106 to H 0105
MH: H 0106MH: H 0105downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:00AM0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LONG CIRCUM REBAR2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE8.8 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO - LONG & CIRCUM REBAR15.2 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO - LONG & CIRCUM REBAR37.5 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO - CIRCUM REBAR50.2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG50.2 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG157.8 ft. MGO - General Observation - 36" RCP209.2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG209.2 ft. SRV - Surface Reinforcement Visible, from 09 to 11 o'clock, within 8 inches of joint: NO - CIRCUM REBAR300.2 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG300.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE300.2 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - LONG & CIRCUM REBAR300.7 ft. AMH - Downstream Manhole, Survey Ends - 5:45AM

Observation photos (9)

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LONG CIRCUM REBAR

    2 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LONG CIRCUM REBAR

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO - LONG & CIRCUM REBAR

    8.8 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO - LONG & CIRCUM REBAR

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO - LONG & CIRCUM REBAR

    15.2 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO - LONG & CIRCUM REBAR

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

    37.5 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

  • General Observation - 36" RCP

    157.8 ft. - General Observation - 36" RCP

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG

    209.2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG

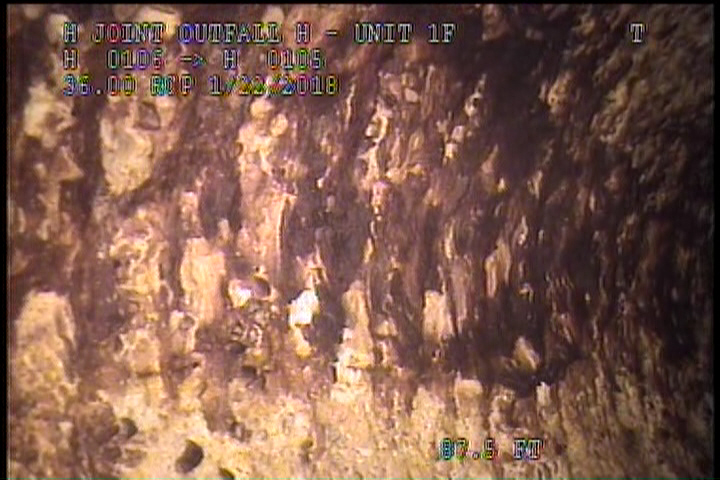

  • Surface Reinforcement Visible, from 09 to 11 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

    209.2 ft. - Surface Reinforcement Visible, from 09 to 11 o'clock, within 8 inches of joint: NO - CIRCUM REBAR

All inspections of P10558Work order 0683963

Observations (18)

DistanceCodeObservation
50.2SAMSEVERE AGG
0AMH5:00AM
2SRVLONG CIRCUM REBAR
300.7AMH5:45AM
0MWM—
2SAMSEVERE AGG
5SSSBLISTERING PEELING CONCRETE
157.8MGO36" RCP
209.2SAMSEVERE AGG
8.8SRVLONG & CIRCUM REBAR
15.2SRVLONG & CIRCUM REBAR
209.2SRVCIRCUM REBAR
50.2SAMSEVERE AGG
37.5SRVCIRCUM REBAR
300.2SAMSEVERE AGG
300.2SSSBLISTERING PEELING CONCRETE
300.2SRVLONG & CIRCUM REBAR
0MWL—

Properties (6)

custom_field_three
LONG& CIRCUM REBAR VISIBLE
custom_field_two
2
customer
LACSD
datetime
2018-01-22T04:39:48-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
