Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 20, 2018, 09:16 AM

  • Section#6_H 0103_H 0102__1202018__G6927.mp4

Date
01/20/2018
W/O
0693963
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00165
PipeID
P10555
Time
1:16 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6927
Sewer Name
H JOINT OUTFALL H - UNIT 1F
City
HUNTINGTON PARK
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20180119MDM_JOINT_OUTFALL_H_UNIT_1F
Material
Reinforced Concrete Pipe
Shape
Circular
Height
39 in.
Upstream MH
H 0103
Downstream MH
H 0102
Dir. of Survey
Downstream
Length Surveyed
600.8 ft.
Total Length
600.8 ft.
Structural Index
2
Structural Quick
322W
Structural Rating
250
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
250
Pipe schematic from manhole H 0103 to H 0102
MH: H 0103MH: H 0102downstream0 ft. AMH - Upstream Manhole, Survey Begins - 3:30AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE2 ft. MGO - General Observation - MAG COAT 80% START 8:00 TO 4:0048 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE153.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - BLISTERING PEELING CONCRETE346.6 ft. MGO - General Observation - 90% MAG COAT421 ft. SAV - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - SEVERE AGG558 ft. SAV - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG600.3 ft. MGO - General Observation - MAG COAT 90% FINISH600.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE600.8 ft. AMH - Downstream Manhole, Survey Ends - 4:25AM

Observation photos (7)

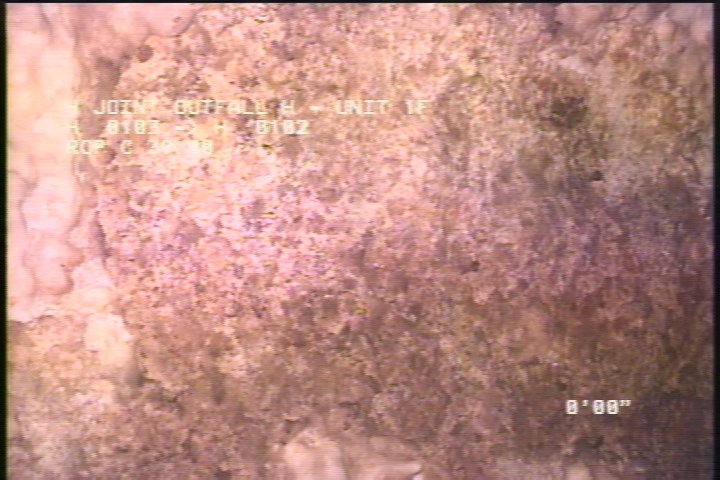

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

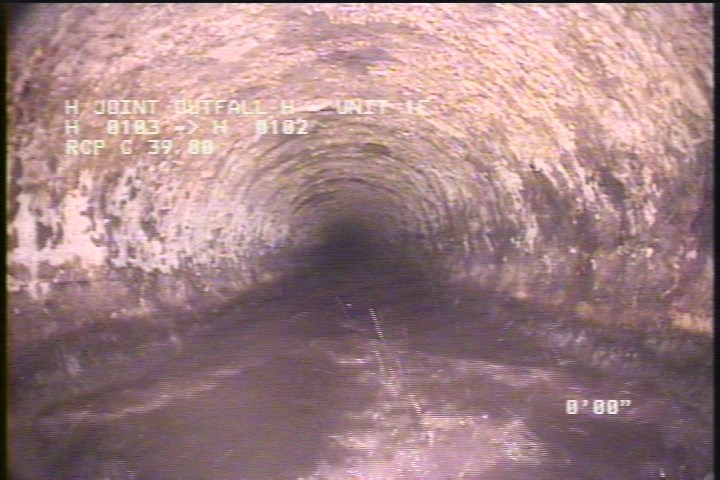

  • General Observation - MAG COAT 80% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 80% START 8:00 TO 4:00

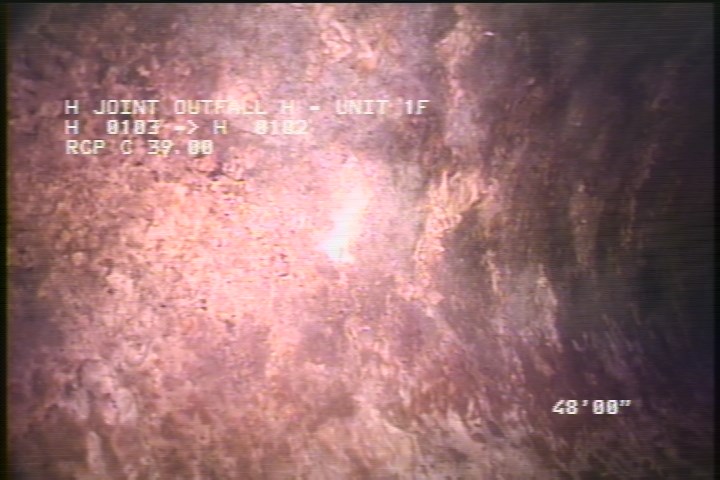

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

    48 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING PEELING CONCRETE

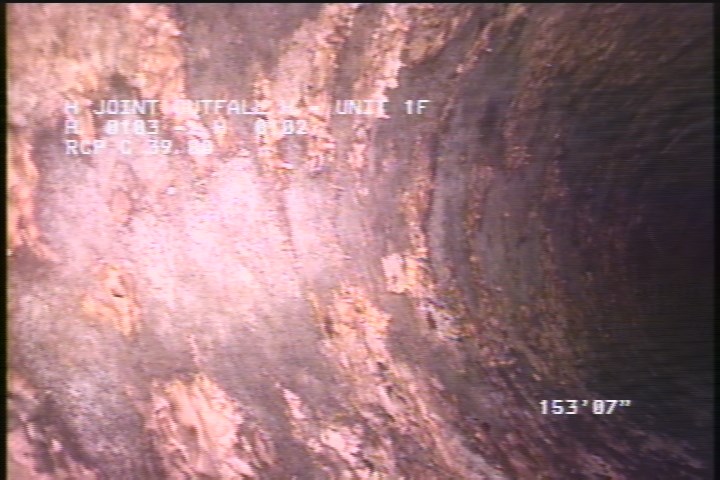

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - BLISTERING PEELING CONCRETE

    153.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - BLISTERING PEELING CONCRETE

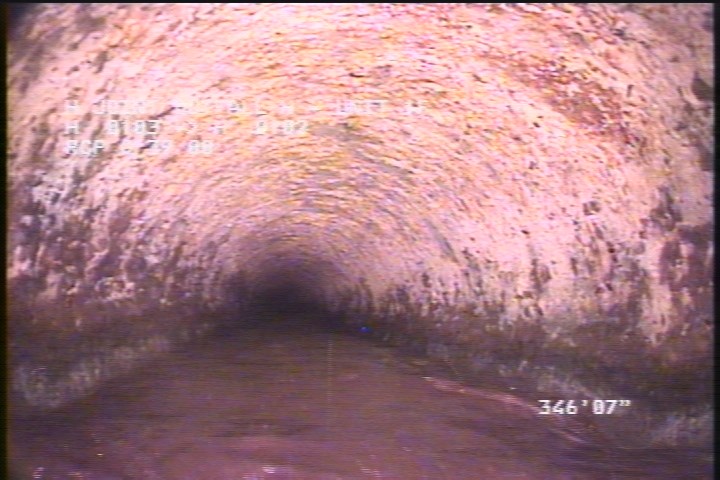

  • General Observation - 90% MAG COAT

    346.6 ft. - General Observation - 90% MAG COAT

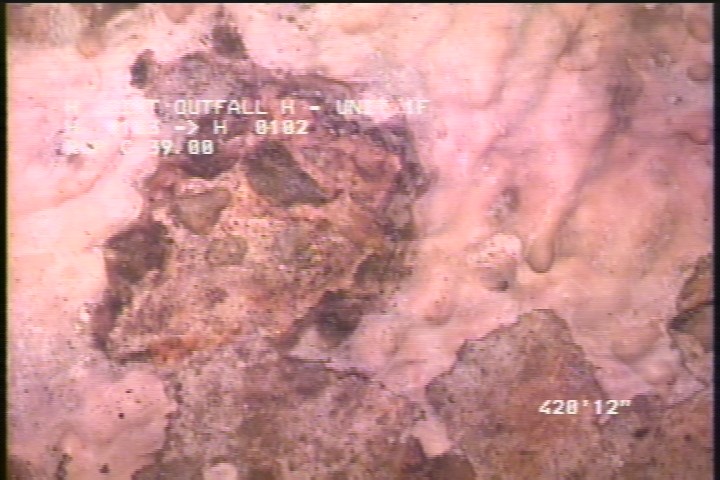

  • Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - SEVERE AGG

    421 ft. - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - SEVERE AGG

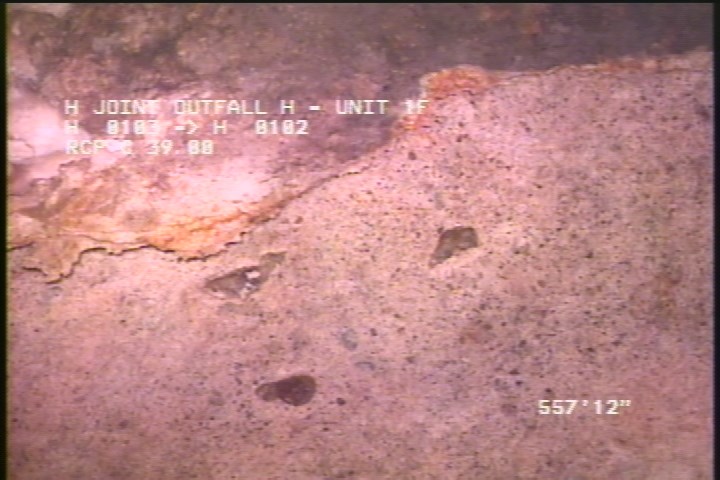

  • Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG

    558 ft. - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG

All inspections of P10555Work order 0693963

Observations (13)

DistanceCodeObservation
558SAVSEVERE AGG
600.8AMH4:25AM
153.5SSSBLISTERING PEELING CONCRETE
2SSSBLISTERING PEELING CONCRETE
600.3MGOMAG COAT 90% FINISH
346.6MGO90% MAG COAT
0AMH3:30AM
421SAVSEVERE AGG
2MGOMAG COAT 80% START 8:00 TO 4:00
48SSSBLISTERING PEELING CONCRETE
600.3SSSBLISTERING PEELING CONCRETE
0MWL—
0MWM—

Properties (6)

custom_field_three
SEVERE AGG VISIBLE-90% MAG COAT
custom_field_two
3
customer
LACSD
datetime
2018-01-20T01:16:05-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
