Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 19, 2018, 11:01 AM

  • Section#3_H 0108_H 0107__1192018__G6926.mp4

Date
01/19/2018
W/O
0693963
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00165
PipeID
P10559
Time
3:01 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6926
Sewer Name
H JOINT OUTFALL H - UNIT 1F
City
HUNTINGTON PARK
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
07
Purpose
Capital Improvement Program Assesment
Project
20180119MDM_JOINT_OUTFALL_H_UNIT_1F
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
H 0108
Downstream MH
H 0107
Dir. of Survey
Downstream
Length Surveyed
111.8 ft.
Total Length
111.8 ft.
Structural Index
3
Structural Quick
3D2C
Structural Rating
113
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
113
Pipe schematic from manhole H 0108 to H 0107
MH: H 0108MH: H 0107downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - MH CONN 9:00 ACTIVE0 ft. MGO - General Observation - MH CONN 3:00 OPEN0 ft. AMH - Upstream Manhole, Survey Begins - 3:05AM0 ft. MWM - Water Mark, 30 %of cross sectional area2.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE6.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG23.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG42.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG94.6 ft. MWL - Water Level, 50 %of cross sectional area111.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE111.4 ft. MGO - General Observation - MH CONN 3:00 STOPLOG IN PLACE - OPEN111.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG111.8 ft. AMH - Downstream Manhole, Survey Ends - 3:50AM

Observation photos (5)

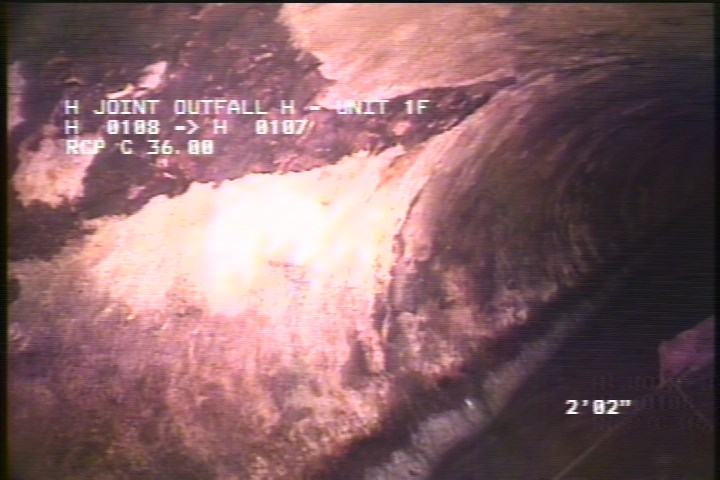

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    2.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

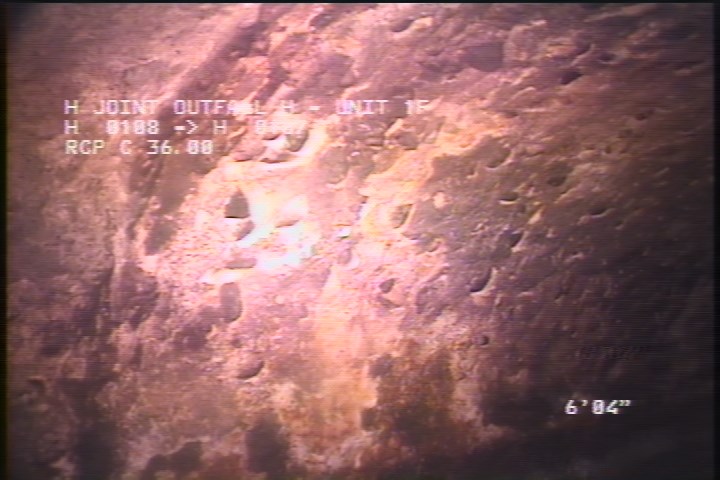

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    6.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

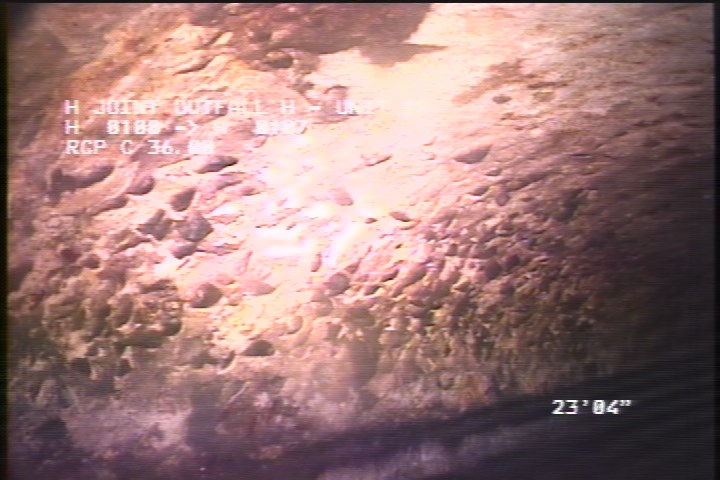

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

    23.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

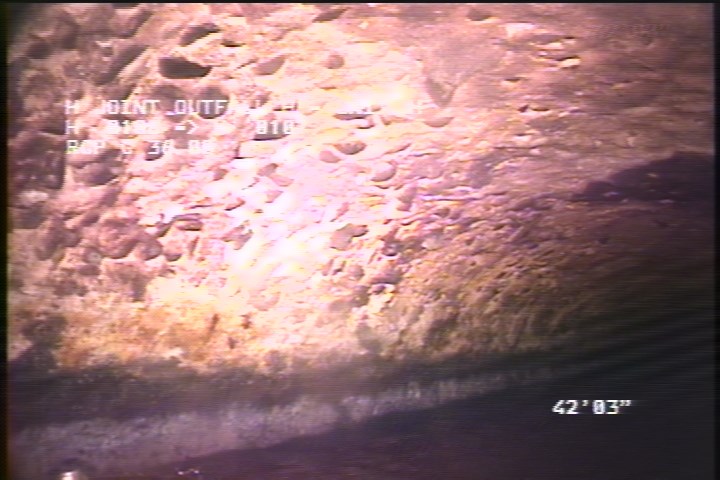

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG

    42.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES - SEVERE AGG

  • Water Level, 50 %of cross sectional area

    94.6 ft. - Water Level, 50 %of cross sectional area

All inspections of P10559Work order 0693963

Observations (14)

DistanceCodeObservation
2.2SSSBLISTERING PEELING CONCRETE
111.8AMH3:50AM
0MWL—
0MGOMH CONN 9:00 ACTIVE
0MGOMH CONN 3:00 OPEN
6.3SAPSEVERE AGG
111.4SSSBLISTERING PEELING CONCRETE
42.2SAPSEVERE AGG
111.4MGOMH CONN 3:00 STOPLOG IN PLACE - OPEN
23.3SAPSEVERE AGG
94.6MWL—
0AMH3:05AM
111.4SAPSEVERE AGG
0MWM—

Properties (6)

custom_field_three
SEVERE AGG PROJECTING
custom_field_two
3
customer
LACSD
datetime
2018-01-19T03:01:23-08:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
