Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 18, 2018, 04:56 PM

  • Section#1_05 1820_05 1819__1182018__G6924.mp4

Date
01/18/2018
W/O
0684823
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00508
PipeID
P07043
Time
8:56 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6924
Sewer Name
05 PALOS VERDES-TORRANCE CONNECTION TRUNK
City
PALOS VERDES
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
31
Purpose
Capital Improvement Program Assesment
Project
20180118DF_PALOS_VERDES_TORRANCE_CONN_TR
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
05 1819
Downstream MH
05 1820
Dir. of Survey
Upstream
Length Surveyed
84.1 ft.
Total Length
84.1 ft.
Structural Index
2
Structural Quick
2B00
Structural Rating
32
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
2
Overall Quick
—
Overall Rating
33
Pipe schematic from manhole 05 1819 to 05 1820
MH: 05 1819MH: 05 1820upstream0 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. AMH - Upstream Manhole, Survey Ends - 10:04 AM53 ft. MGP - General Photograph - FINE ROOTS76.9 ft. MGP - General Photograph78.2 ft. RFJ - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YESR82.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start84 ft. MWL - Water Level, 0 %of cross sectional area84 ft. MWM - Water Mark, 0 %of cross sectional area84.1 ft. AMH - Downstream Manhole, Survey Begins - 9:01 AM

Observation photos (4)

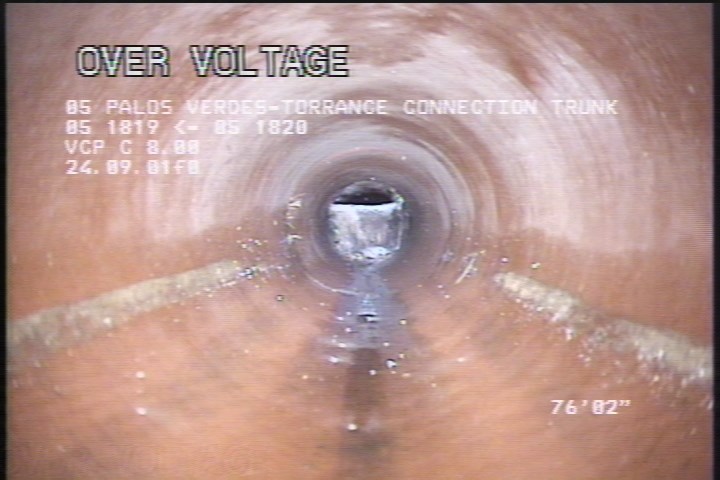

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YESR

    5.9 ft. - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YESR

  • General Photograph

    7.2 ft. - General Photograph

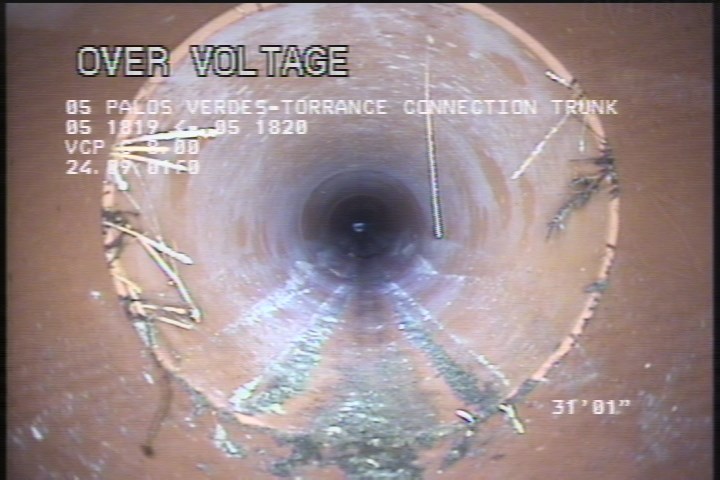

  • General Photograph - FINE ROOTS

    31.1 ft. - General Photograph - FINE ROOTS

All inspections of P07043Work order 0684823

Observations (9)

DistanceCodeObservation
0.1MWL—
84.1SSS—
0AMH9:01 AM
5.9RFJ—
0.1MWM—
84.1AMH10:04 AM
2SSS—
7.2MGP—
31.1MGPFINE ROOTS

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2018-01-18T08:56:07-08:00
documentation
FRANKLIN, IGNACIO, PARAISO, VENDRYES
is_lateral_inspection
false
